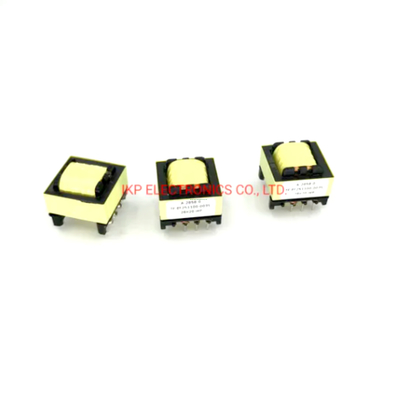

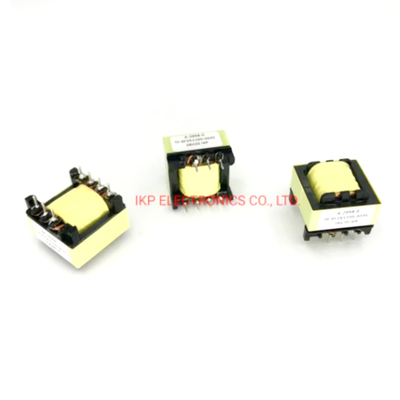

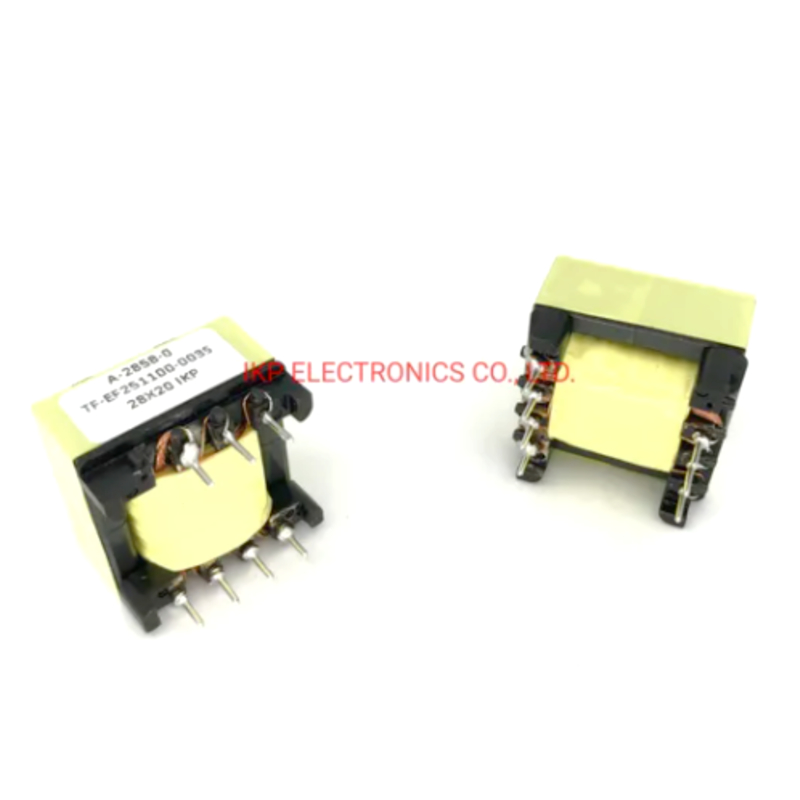

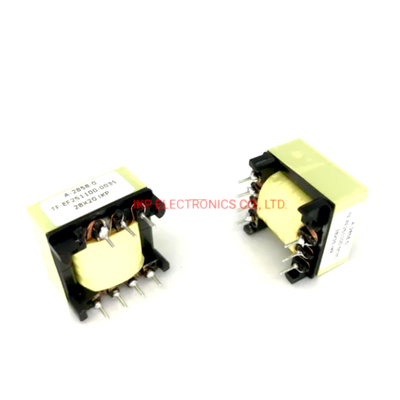

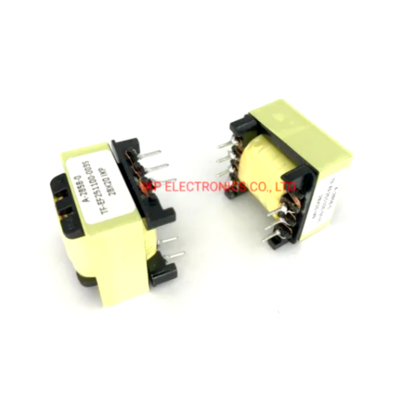

Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier

Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier

    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    • Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: TF-EE251100-003S

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.75-0.85
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    TF-EE251100-003S
    Core
    Core-type Transformer
    Cooling Method
    Dry-type Transformer
    Winding Type
    Multi-winding Transformer
    Certification
    ISO9001
    Usage
    Rectifier Transformer, Power Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Ee25
    Brand
    Ikp
    Inductance Value
    450uh
    Transport Package
    Carton
    Specification
    EE25
    Trademark
    IKP
    Origin
    China
    HS Code
    8504319000
    Production Capacity
    5000000

    Product Description

    Features:
    1. Operating Frequency: 50~200KHz
    2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

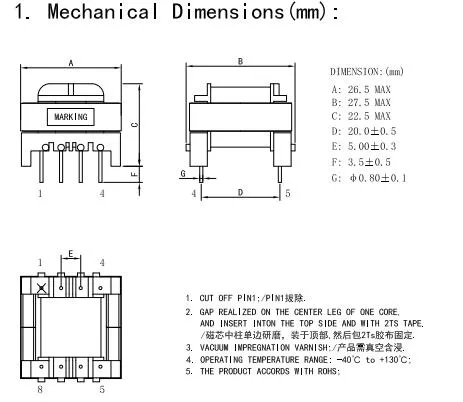

    Specifications (Unit: mm):

    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier


    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier

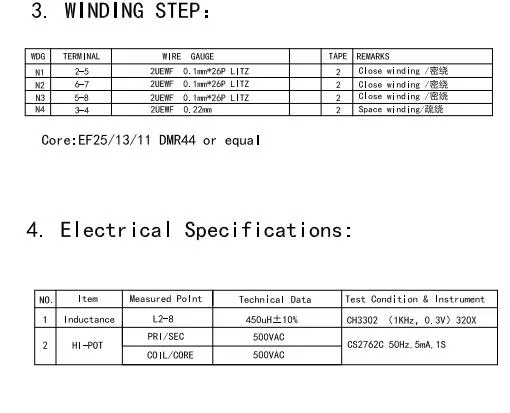

    Electrical performance:
    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 2000 W
    3. Operating temperature:-40 ºCto +125 ºC
    4. Storage temperature:-25 ºCto +85 ºC

    Applications:
    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments, Inverters for EV and PV, Audio amplifiers.


    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
    Ee 10 13 16 19 22 25 30 40 42 55 60 65 Transformer UL SGS RoHS Approved for LED Rectifier
