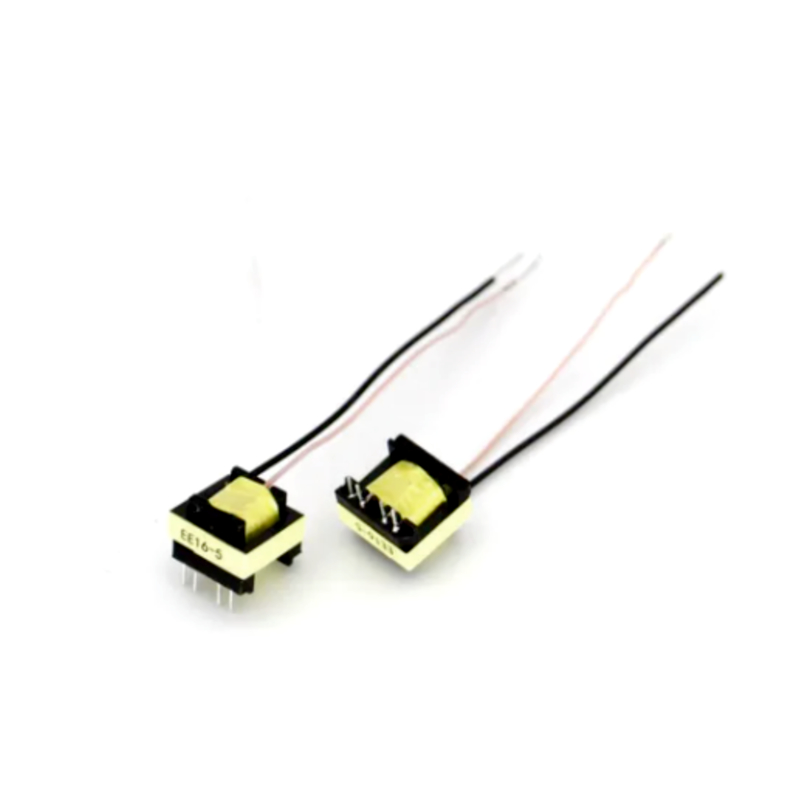

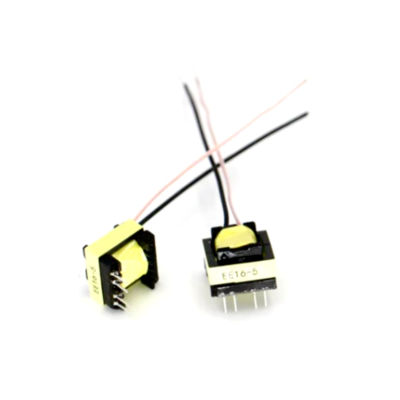

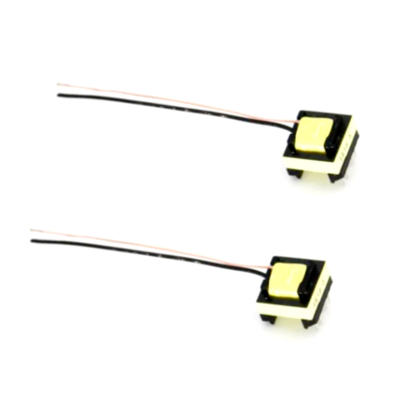

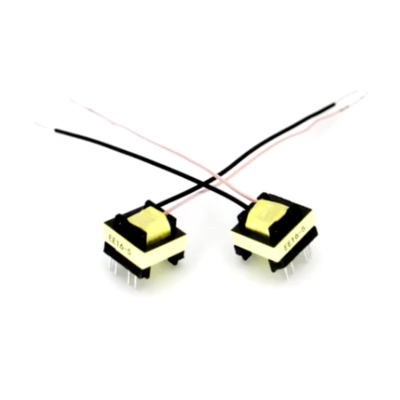

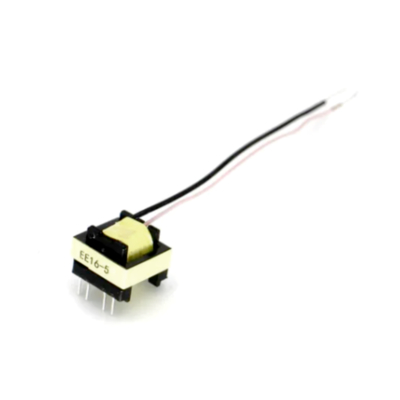

Horizontal Ee16 High Frequency Transformer with Fly-Line

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-LF-EE165-3

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.15-0.18
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-LF-EE165-3

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Separated Winding Transformer

Certification

ISO9001, Ce/SGS/BV/RoHS/Reach

Usage

Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton

Specification

EE165

Trademark

IKP-ELEC

Origin

China

HS Code

85043190

Production Capacity

100000pieces/Day

Product Description

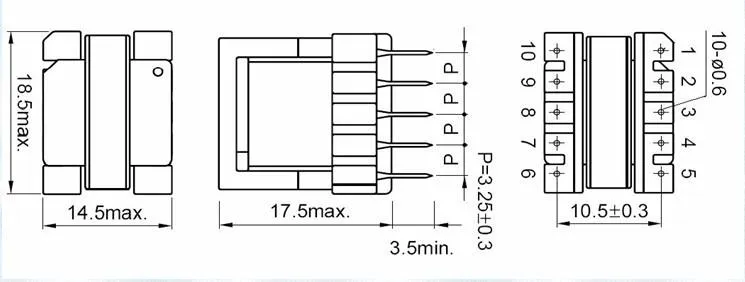

Physical and Electrical Performance Parameters:

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE10	Horizontal	12.0Max	10.8±0.5	12.4±0.5	2.5±0.2	2.5±0.3	10.5±0.5	4W Max
EE13		15.0Max	13.5±0.5	13.85±0.5	2.5±0.2	2.5±0.3	10.2±0.5	6W Max
EE16		17.5Max	15.0±0.5	13.6±0.5	3.5±0.2	3.0±0.3	11.0±0.5	10W Max
EE19		22.0Max	112.4±0.5	17.4±0.5	4.0±0.2	3.0±0.3	12.5±0.5	15W Max
EE22		24.0Max	13.0±0.5	15.7±0.5	4.0±0.2	4.8±0.3	13.0±0.5	20W Max
EE25		26.5Max	17.3±0.5	19.4±0.5	4.0±0.2	5.0±0.3	14.0±0.5	25W Max
EE30		32.0Max	22.0±0.5	32.0Max	4.0±0.2	5.0±0.3	25.0±0.5	145W Max
EE40		34.0Max	28.6±0.5	35.0Max	4.0±0.2	5.0±0.3	25.8±0.5	350W Max
EE42		42.0Max	39.1±0.5	45.0Max	4.0±0.2	5.0±0.3	37.8±0.5	450W Max
EE55		58.0Max	56.0±0.5	58.0Max	4.0±0.2	5.0±0.3	40.0±0.5	500W Max

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE8.3	Vertical	10.0Max	9.5Max	8.0±0.5	2.5±0.2	3.3±0.3	5.8±0.5	3W Max
EE10		12.0Max	13.0Max	10.4±0.5	2.5±0.2	2.5±0.3	5.8±0.5	4W Max
EE13		15.0Max	14.0Max	12.2±0.5	2.5±0.2	2.5±0.3	5.8±0.5	6W Max
EE16		17.5Max	15.0Max	14.4±0.5	3.5±0.2	3.8±0.3	5.8±0.5	10W Max
EE19		22.0Max	19.0Max	15.9±0.5	4.0±0.2	4.0±0.3	5.8±0.5	15W Max
EE22		24.0Max	20.0Max	16.5±0.5	4.0±0.2	4.0±0.3	5.8±0.5	20W Max
EE25		26.5Max	22.0Max	17.2±0.5	4.0±0.2	5.0±0.3	5.8±0.5	25W Max
EE28		30.0Max	22.0Max	21.8±0.5	4.0±0.2	5.0±0.3	5.8±0.5	50W Max
EE30		32.0Max	30.0Max	28.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	145W Max
EE35		37.0Max	30.0Max	25.6±0.5	4.0±0.2	5.0±0.3	5.8±0.5	350W Max
EE40		42.0Max	33.0Max	27.9±0.5	4.0±0.2	5.0±0.3	5.8±0.5	450W Max
EE42		46.5Max	43.0Max	37.4±0.5	4.0±0.2	5.0±0.3	5.8±0.5	500W Max
EE55		57.0Max	58.0Max	42.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	650W Max
