Name: Professionally Designed Ef12.6 Type High Frequency Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-LF-EF12.6
Price: 0.02 USD
Availability: InStock

Home Products High Frequency Transformers

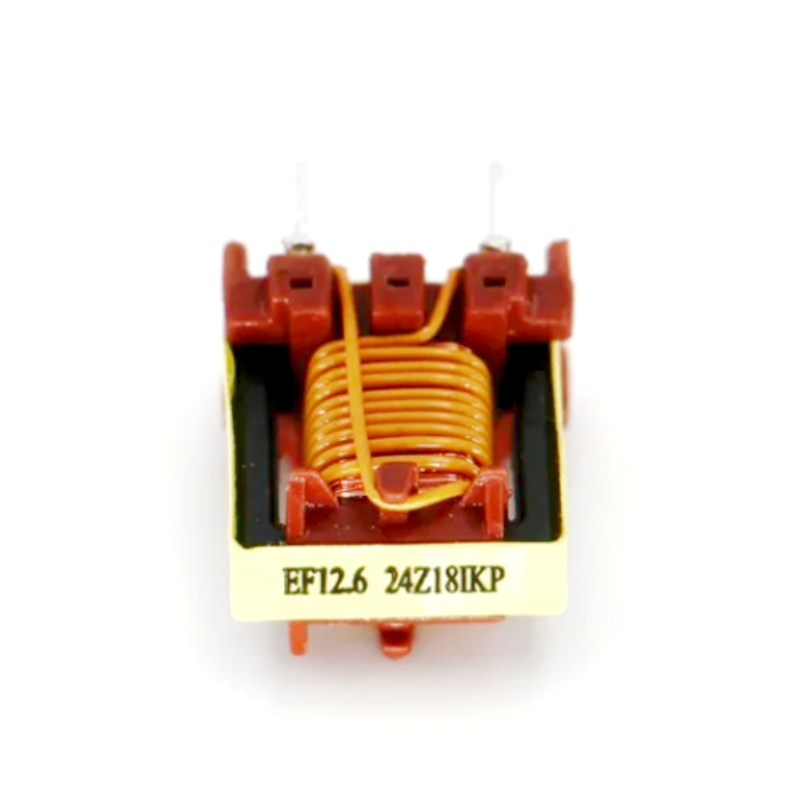

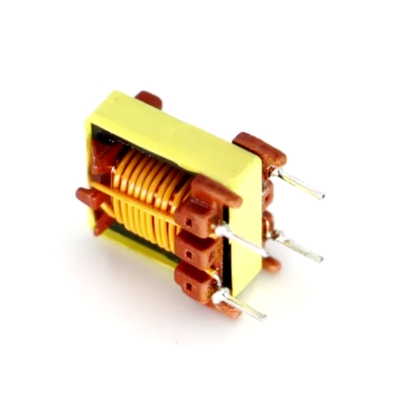

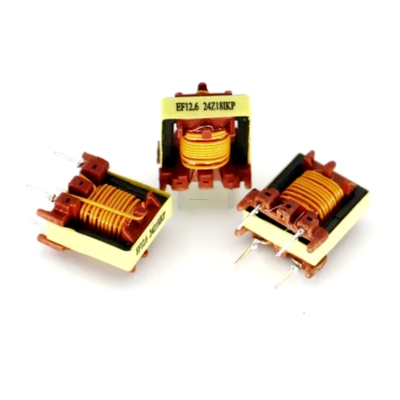

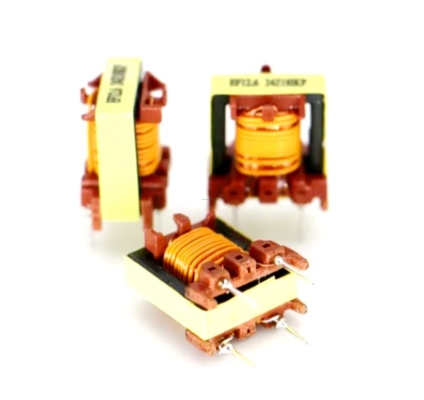

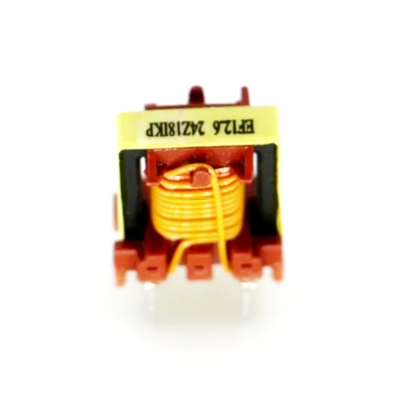

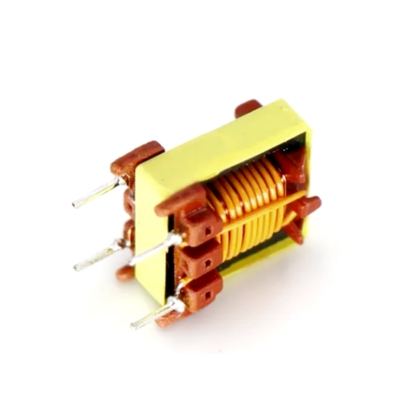

Professionally Designed Ef12.6 Type High Frequency Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-LF-EF12.6

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.019-0.023
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-LF-EF12.6

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Separated Winding Transformer

Certification

ISO9001, CCC

Usage

Power Transformer

Frequency Characteristics

Power Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton

Specification

EF12.6

Trademark

IKP-ELEC

Origin

China

HS Code

85045000

Production Capacity

80000pieces/Day

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models, mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

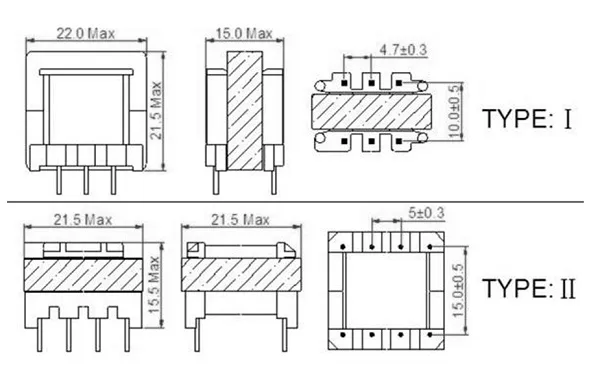

Physical and Electrical Performance Parameters:

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EF12.6	Horizontal	15.0Max	9.2±0.5	12.8±0.5	3.5±0.3	5.0±0.3	10.0±0.5	15W Max
EF13		15.0Max	13.5±0.5	18.6±0.5	3.5±0.3	2.75±0.3	16.0±0.5	15W Max
EF16		19.0Max	11.7±0.5	16.9±0.5	3.5±0.3	3.5±0.3	14.5±0.5	20W Max
EF20		22.0Max	17.5±0.5	20.4±0.5	3.5±0.3	5.0±0.3	15.0±0.5	30W Max
EF25		27.0Max	18.5±0.5	26.0±0.5	3.5±0.3	5.0±0.3	20.0±0.5	45W Max
EF12.6	Vertical	15.0Max	15.7±0.5	9.9±0.5	3.5±0.3	3.8±0.3	7.6±0.5	15W Max
EF16		19.0Max	18.3±0.5	11.1±0.5	3.5±0.3	3.75±0.3	7.5±0.5	20W Max
EF20		22.0Max	21.5±0.5	13.6±0.5	3.5±0.3	3.8±0.3	9.8±0.5	30W Max
EF25		27.0Max	18.9±0.5	20.5±0.5	3.5±0.3	5.0±0.3	16.0±0.5	45W Max
