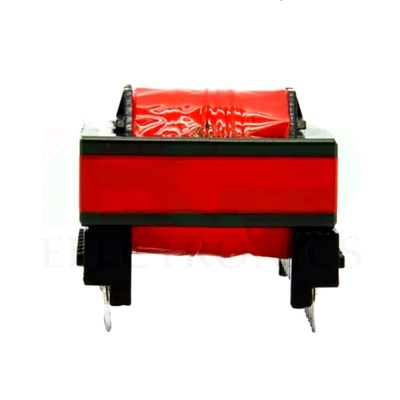

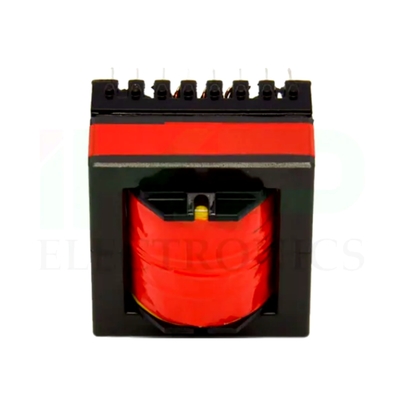

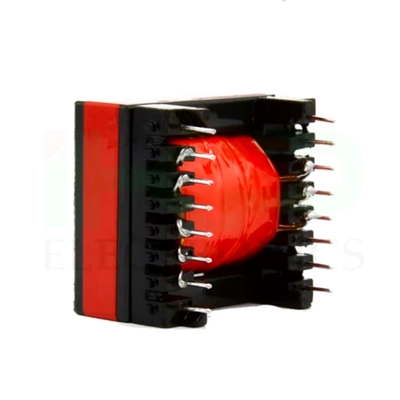

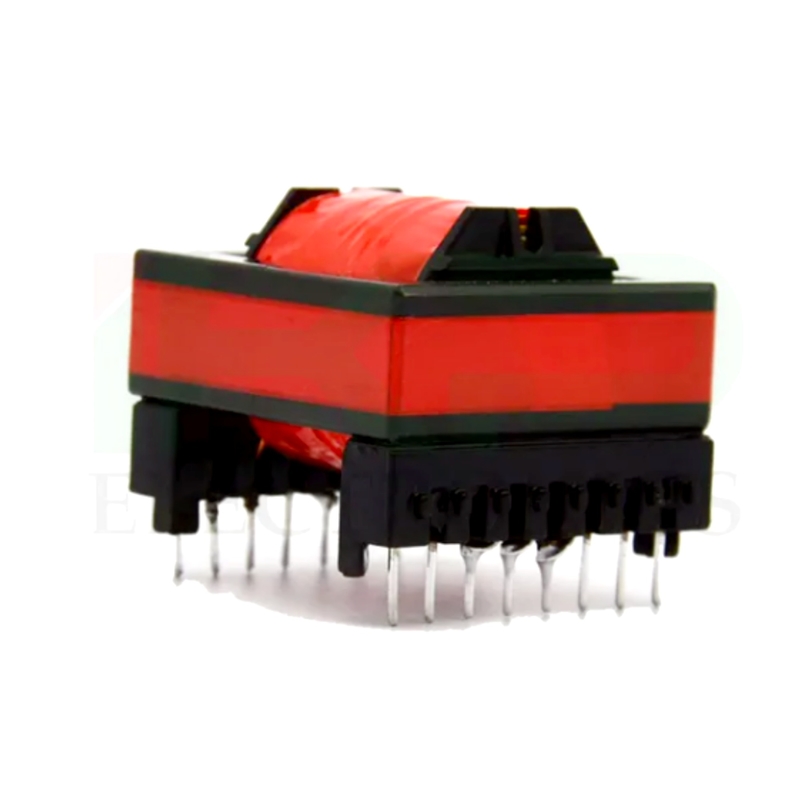

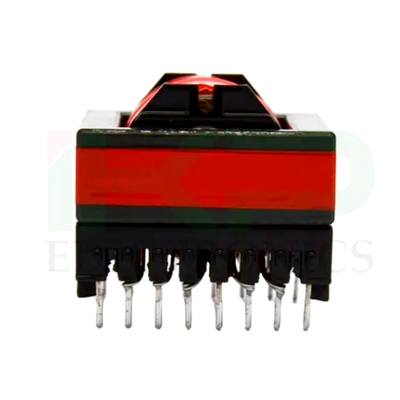

Name: Customized Single Phase High Frequency Photovoltaic Inverter Transformer for Solar Energy (Ec4953-60V-60A)
Brand: IKP Electronics Co., Ltd.
SKU: IKP-EC4953
Price: 1.33 USD
Availability: InStock

Home Products CCFL Transformers

Customized Single Phase High Frequency Photovoltaic Inverter Transformer for Solar Energy (Ec4953-60V-60A)

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EC4953

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	1.33-1.66
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EC4953

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001-2000, ISO9001, RoHS

Usage

Single-phase Transformer, Rectifier Transformer, Combined Transformer, Power Transformer, Distribution Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

OEM

Transport Package

Carton

Specification

EC4953

Trademark

IKP

Origin

China

HS Code

8504319000

Production Capacity

5000000PCS/Year

Product Description

Performance

Operating Frequency: 40kHz~500KHz
Output Power: 150W~1000W
Operating Temperature: -40ºC to +125ºC
Storage Temperature: -25ºC to +85ºC

Features

Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Applications

- DC/DC Converter Transformer
- Current Transformer
- Switching power supply, Adapter and UPS
- Computer products
- DVD
- LED power board
- LCD TV & Monitor Displays Power Boards
- Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

Customized Single Phase High Frequency Photovoltaic Inverter Transformer for Solar Energy (Ec4953-60V-60A)

MODEL	PINS	DIMENSIONS ±0.2mm						NOTE
MODEL	PINS	A	B	C	D	E	F	NOTE
EC-2828W	6P+6P	28	32	26	5	26	0.6
EC-2834W	7P+7P	28	34	27	5	30.5	0.6
EC-3535W	7P+7P	35	38	29	5	22.5	0.7
EC-3535L	6P+6P	35	29	36	5	22.5	0.7
EC-3540L	7P+7P	35	32	40	5	22.5	0.7
EC-3542L	7P+7P	35	42	43	5	22.5	0.7
EC-3542W	8P+8P	35	42	29	5	35	0.7

We can design and manufacture customized part with specific requirement.

Customized Single Phase High Frequency Photovoltaic Inverter Transformer for Solar Energy (Ec4953-60V-60A)
