RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer

RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer

    • RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer
    • RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer
    • RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer
    • RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer
    • RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-RM10-120W

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.19-0.25
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-RM10-120W
    Core
    Ferrite Core
    Cooling Method
    Oil-immersed Type Transformer
    Winding Type
    Multi-winding Transformer
    Certification
    ISO9001, CCC
    Usage
    Combined Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    RM
    Brand
    OEM
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85043190
    Production Capacity
    50, 000 PCS/Week

    Product Description


    RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer

    RM10 Transformer/High Frequency Transformer/L Pin RM10 Transformer

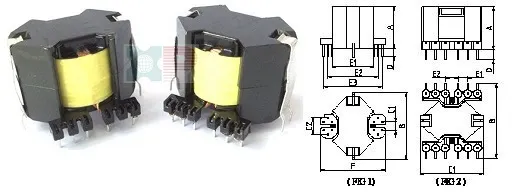

    PART NO. PINS Dimensions: mm
    A B C1 C2 E1 E2 E3 F FIG
    RM-4 6 11.5 13.5 1.8 3.6 7.2 10.8 - 12.6 1
    RM-5 6 11.5 15.5 1.8 3.6 10.8 14.4 - 16 1
    RM-6 6 13.5 18.5 1.8 3.6 14.4 18 - 20.7 1
    RM-6-1 8 13.5 18.5 15.2 - 3.8 5.08 - 24.5 2
    RM-8 12 17.5 23.5 3.6 7.2 14.4 18 21.6 24 1
    RM-8-1 12 17.5 23.5 20.3 - 3.8 5.08 - 29.8 2
    RM-10 12 19.6 28.5 3.6 7.2 18 21.6 25.2 28.1 1
    RM-10-1 12 19.6 28.5 28 - 3.8 5.12 - 39.4 2
    RM-12 12 24.5 38.5 3.6 10.8 21.5 28.7 35.9 38.5 1
    RM-12-1 12 23.7 38.5 33 - 5.08 5.1 - 45.2 2
    RM-14 12 29 43.4 35.6 - 5.08 7.62 - 48.4 2

    Electrical performance:
    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 80 W
    3. Operating temperature:-40 ºCto +125 ºC
    4. Storage temperature:-25 ºCto +85 ºC
    Applications:
    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

    Kindly Reminder:
    1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
    2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
    3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
    5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
    6. Contact us now for more details:
    Business hotlines: + 86-551-63748663 63745886
