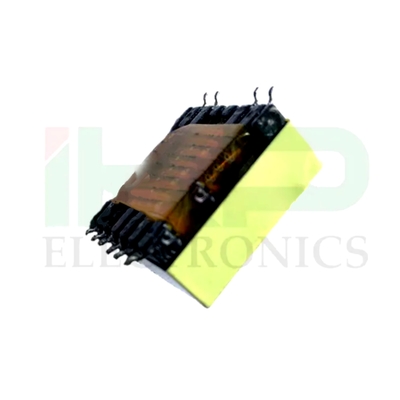

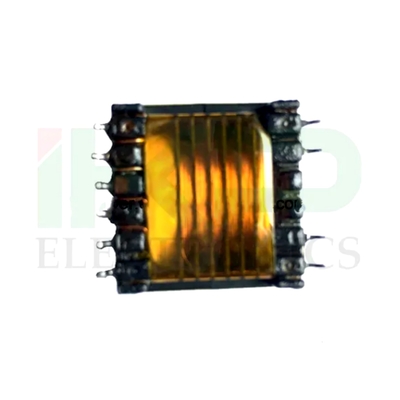

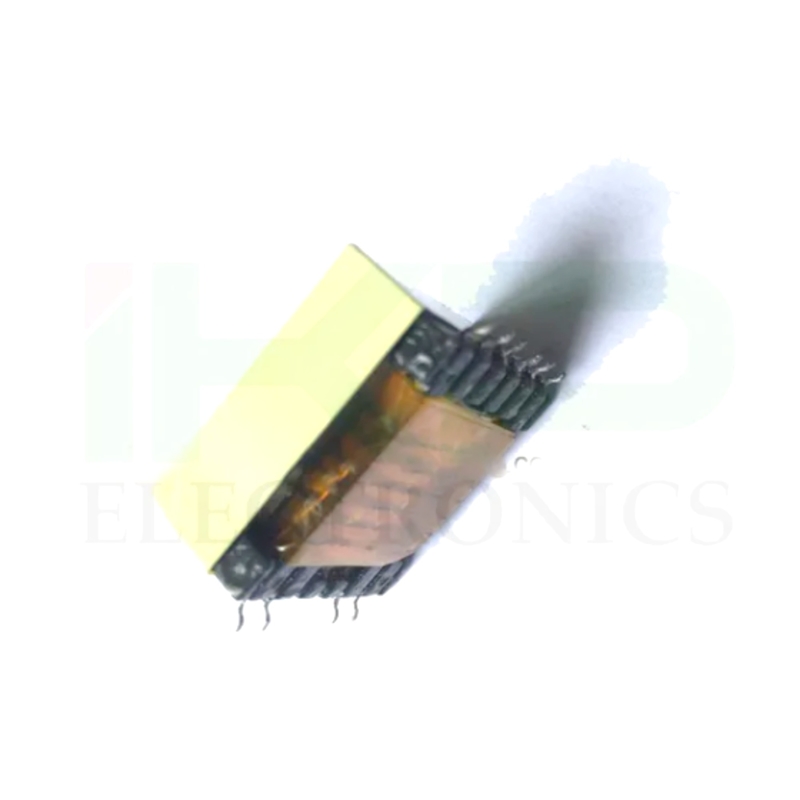

Name: Surface Mounted Type Fly-Back High Frequency Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-EFD
Price: 0.49 USD
Availability: InStock

Home Products CCFL Transformers

Surface Mounted Type Fly-Back High Frequency Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EFD

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.49-0.70
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EFD

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001, Ce

Usage

Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Efd

Brand

OEM

Version

Horizantal

Transport Package

Carton

Specification

RoHS/SGS/UL/ISO9001

Trademark

IKP

Origin

Hefei

HS Code

85043190

Production Capacity

5000000 Pics/Year

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

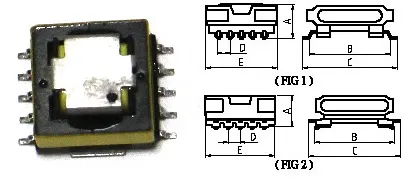

Specifications (Unit: mm):
Surface Mounted Type Fly-Back High Frequency Transformer

P/N.	PINS	Dimensions(mm)
P/N.	PINS	A	B	C+/-0.5	D	E	FIG
IKP-EFD-12	8	6	17	20	3	13.5	2
IKP-EFD-15	10	7.3	18.2	21.35	2.5	15	1
IKP-EFD-15	10	7.5	19.3	22.6	3	16.7	2
IKP-EFD-20	10	9.4	25.3	27.7	3.75	21.7	2
IKP-EFD-20	12	9.7	24	26.8	3	20	1
IKP-EFD-25	10	13.4	29.7	35.4	5	25	2
IKP-EFD-25	10	12.6	29.7	31.5	5	25	1
IKP-EFD-30	12	12.6	31.6	35.3	5	30	2

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 2000 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC

Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

Kindly Reminder:
1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
4. About PAYMENT. Foreign customers:100% T / T; domestic customers: 30 days after delivery, according to the invoice payment.
5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
6. Contact us now for more details:
Business hotlines: + 86-551-63748663 63749803

Contact Details

IKP Electronics Co., Ltd.

Contact Person: 纵浩

Tel: +860551-63745886

Other Products

Power Supply Ef20 High Frequency Transformer|Inverter Transformer

Ei19 (4 Pin) Type High Frequency Transformer for PCB Mounting

Amorphous Core High Frequency Toroidal Transformer, UL/Ce/RoHS Certified

Customized Ei Type High Frequency Charging Transformer

Customized Design Er2614 High Frequency Transformer with Magnetic Shield Construction

Efd30 SMD Type High Frequency Transformer with Ce/UL/SGS/Reach Certificates

High Frequency Choke Transformer for Power Transformer
