Name: Customized Ei Type High Frequency Charging Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-PT-EI30
Price: 5.55 USD
Availability: InStock

Home Products High Frequency Transformers

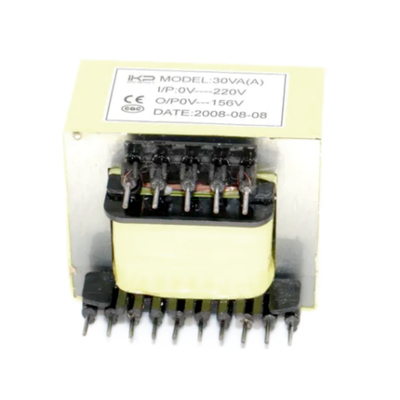

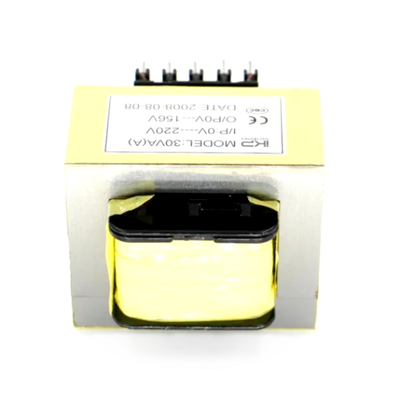

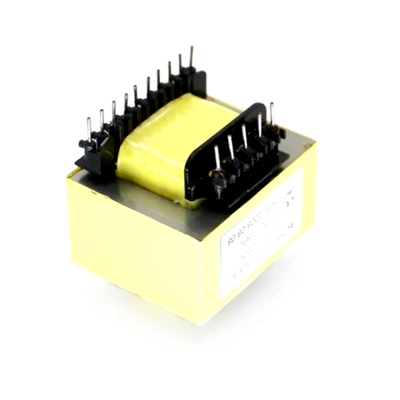

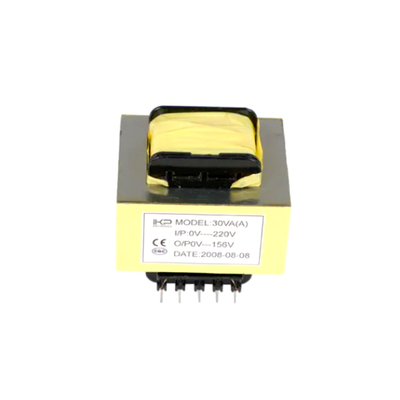

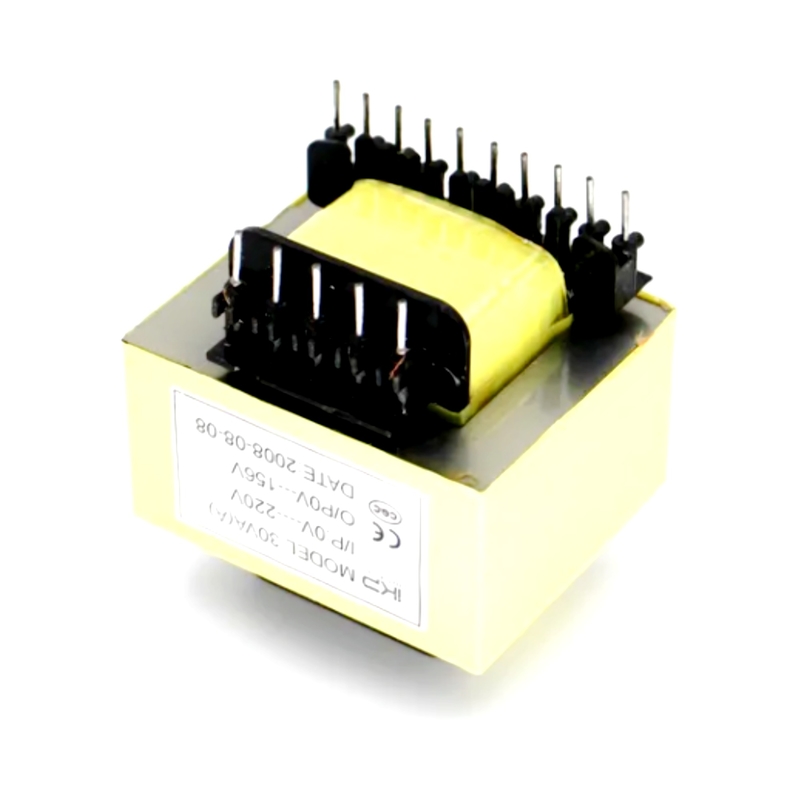

Customized Ei Type High Frequency Charging Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-PT-EI30

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	5.55-5.66
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-PT-EI30

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Auto-transformer

Certification

ISO9001, CCC

Usage

Single-phase Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton

Specification

IKP-PT-EI30

Trademark

IKP

Origin

China

HS Code

85043190

Production Capacity

20000pieces/Week

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models, mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Physical and Electrical Performance Parameters:

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EI16	Vertical	17.5Max	16.0Max	13.0±0.5	3.5±0.2	3.25±0.3	10.7±0.5	10W Max
EI19		21.0Max	18.0Max	16.7±0.5	3.5±0.2	3.9±0.3	13.2±0.5	15W Max
EI22		24.0Max	21.0Max	15.0±0.5	3.5±0.2	4.0±0.3	10.1±0.5	20W Max
EI25		27.0Max	22.0Max	20.0±0.5	3.5±0.2	5.0±0.3	15.0±0.5	25W Max
EI28		30.0Max	24.0Max	22.0±0.5	3.5±0.2	5.0±0.3	17.8±0.5	45W Max
EI30		32.0Max	28.5Max	23.0Max	3.5±0.2	5.0±0.3	17.6±0.5	100W Max
EI33		35.0Max	32.0Max	30.0Max	3.5±0.2	5.0±0.3	22.5±0.5	145W Max
EI35		37.0Max	33.0Max	30.0Max	3.5±0.2	5.0±0.3	22.5±0.5	350W Max
EI40		42.0Max	39.0Max	29.0Max	3.5±0.2	5.0±0.3	22.5±0.5	450W Max
EI42		44.0Max	48.0Max	32.0±0.5	3.5±0.2	5.0±0.3	27.5±0.5	550W Max
