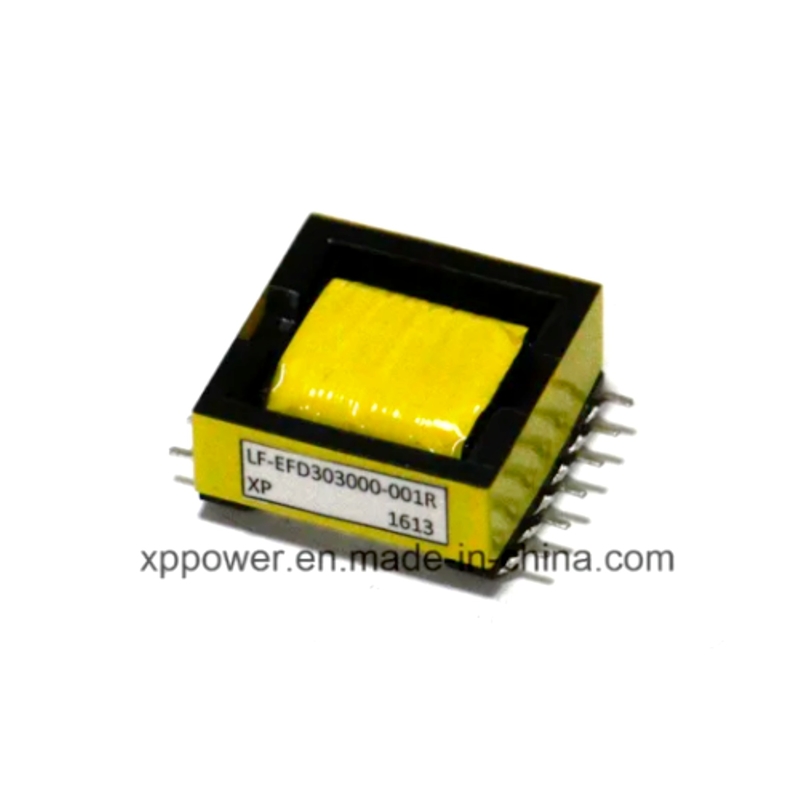

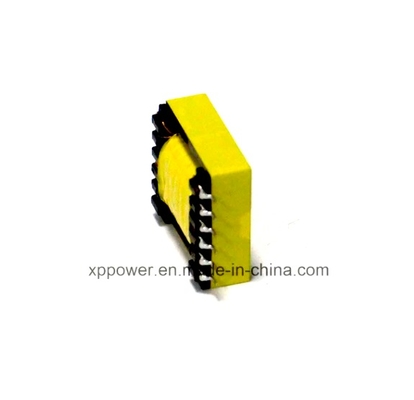

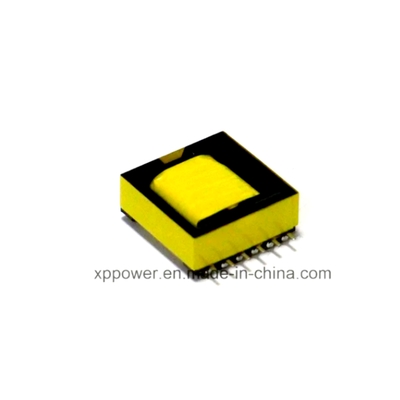

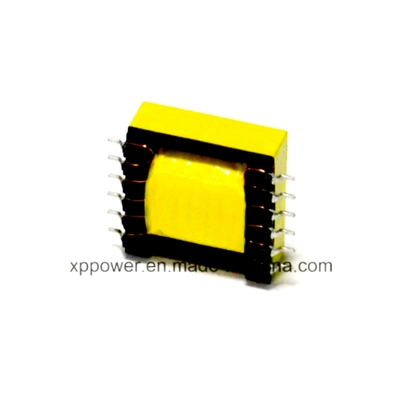

Efd30 Type High Frequency Power Transformer for Solar Energy

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EFD3030

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.45-0.50
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EFD3030

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001-2000

Usage

High Frequency Transformer

Frequency Characteristics

High Frequency

Shape of Core

Efd

Brand

Ikp

Transport Package

Carton

Specification

RoHS/SGS/UL/ISO9001

Trademark

IKP

Origin

China

HS Code

85043190

Production Capacity

5000000 Pics/Year

Product Description

FEATURES:
- Low Profile
- Inexpensive Type
- High Reliability
- Low price
- Cost-effective
- High impedance and low loss
- High Conversion Efficiency
- Easily Inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome

APPLICATION:
-DC/DC Converter Transformer
-Current Transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers

SPECIFICATIONS:
-Operating Temperature: -25° C to +60° C
-Storage Temperature: -25° C to +85° C
-Operating Humidity: 30 to 95%RH
-Storage Humidity: 30 to 95%RH
Efd30 Type High Frequency Power Transformer for Solar Energy

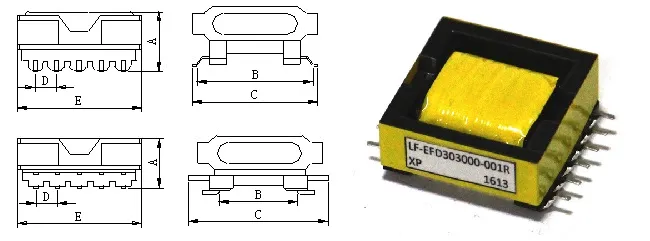

Part NO.	THRMINAL PINS	Dimensions in mm(inches)					FIG
Part NO.	THRMINAL PINS	A	B	C±0.5	D±0.5	E±0.5	FIG
HT-EFD-12	8	6	17	20	3.0	13.5	2
HT-EFD-15	10	7.3	18.2	21.35	2.5	15	1
HT-EFD-15	10	7.5	19.3	22.6	3.0	16.7	2
HT-EFD-20	10	9.4	25.3	27.7	3.75	21.7	2
HT-EFD-20	12	9.7	24	26.8	3	20	1
HT-EFD-25	10	13.4	29.7	35.4	5	25	2
HT-EFD-25	10	12.6	29.7	31.5	5	25	1
HT-EFD-30	12	12.6	31.6	35.3	5	30	2
