Name: Vertical High Frequency Transformer Ee16 5+2+2
Brand: IKP Electronics Co., Ltd.
SKU: IKP-EE16-2
Price: 0.29 USD
Availability: InStock

Home Products CCFL Transformers

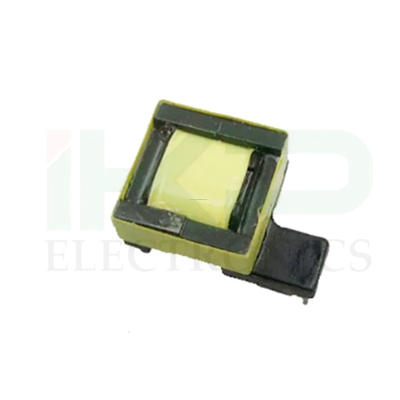

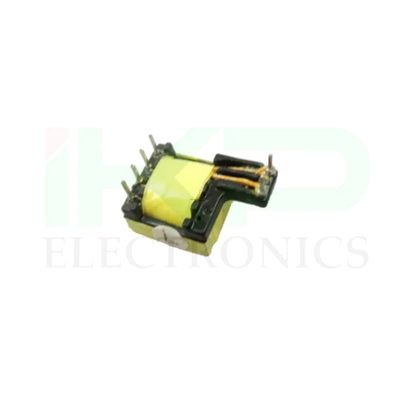

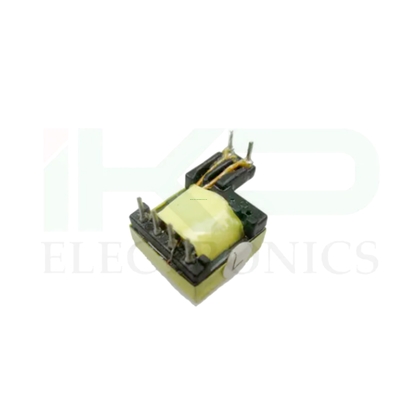

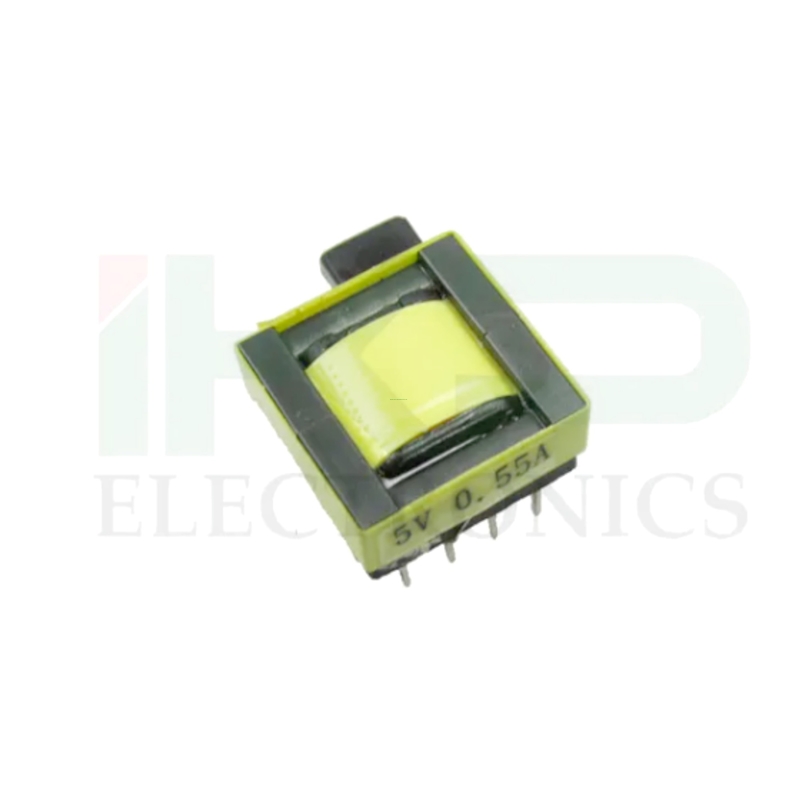

Vertical High Frequency Transformer Ee16 5+2+2

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EE16-2

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.29-0.43
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EE16-2

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001-2000, RoHS

Usage

Single-phase Transformer, Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

OEM

Transport Package

Carton

Specification

EE16

Trademark

IKP

Origin

China

HS Code

8504319000

Production Capacity

5000000PCS/Year

Product Description

Features

1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Applications

- DC/DC Converter Transformer
- Current Transformer
- Switching power supply, Adapter and UPS
- Computer products
- DVD
- LED power board
- LCD TV & Monitor Displays Power Boards
- Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

Electrical Specifications

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EE8.3	Vertical	10.0Max	9.5Max	8.0±0.5	2.5±0.2	3.3±0.3	5.8±0.5	3W Max
EE10		12.0Max	13.0Max	10.4±0.5	2.5±0.2	2.5±0.3	5.8±0.5	4W Max
EE13		15.0Max	14.0Max	12.2±0.5	2.5±0.2	2.5±0.3	5.8±0.5	6W Max
EE16		17.5Max	15.0Max	14.4±0.5	3.5±0.2	3.8±0.3	5.8±0.5	10W Max
EE19		22.0Max	19.0Max	15.9±0.5	4.0±0.2	4.0±0.3	5.8±0.5	15W Max
EE22		24.0Max	20.0Max	16.5±0.5	4.0±0.2	4.0±0.3	5.8±0.5	20W Max
EE25		26.5Max	22.0Max	17.2±0.5	4.0±0.2	5.0±0.3	5.8±0.5	25W Max
EE28		30.0Max	22.0Max	21.8±0.5	4.0±0.2	5.0±0.3	5.8±0.5	50W Max
EE30		32.0Max	30.0Max	28.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	145W Max
EE35		37.0Max	30.0Max	25.6±0.5	4.0±0.2	5.0±0.3	5.8±0.5	350W Max
EE40		42.0Max	33.0Max	27.9±0.5	4.0±0.2	5.0±0.3	5.8±0.5	450W Max
EE42		46.5Max	43.0Max	37.4±0.5	4.0±0.2	5.0±0.3	5.8±0.5	500W Max
EE55		57.0Max	58.0Max	42.0±0.5	4.0±0.2	5.0±0.3	5.8±0.5	650W Max
