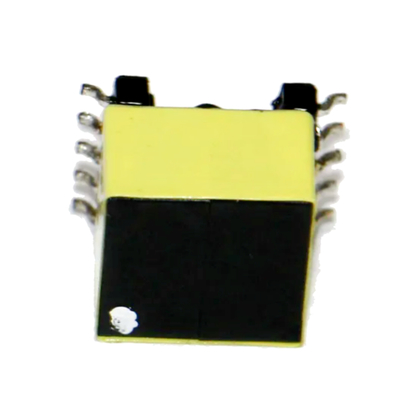

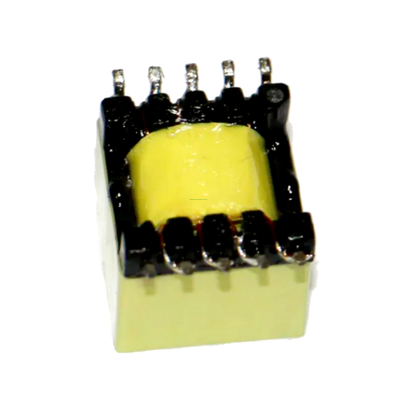

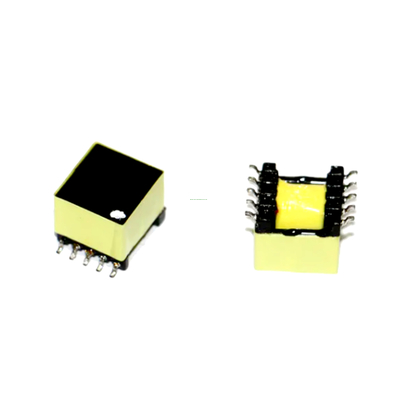

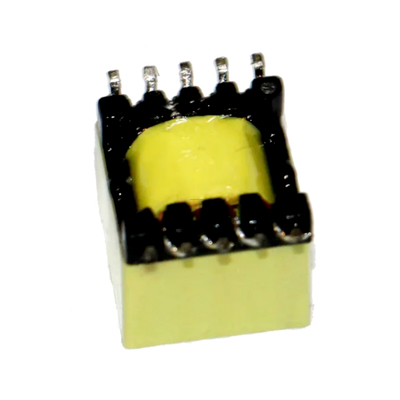

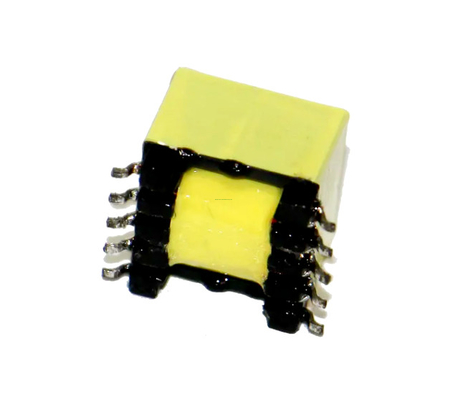

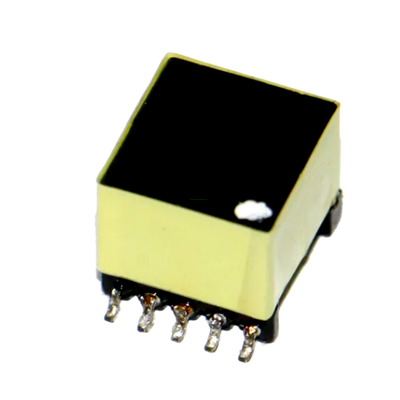

Ep Series SMD Type High Frequency Power Transformers with Factory Prices

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	TF-EP130000-002R

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.23-0.26
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

TF-EP130000-002R

Working Frequency

High Frequency

Structure of Winding

Multilayer Coil

Nature of Operation

High Frequency

Structure of Magnetizer

Ferrite Coil

Range of Application

Choke

Packaging Form

Chip Inductance

Brand

Ikp

Inductor Value

Variable Inductor

Transport Package

Carton

Specification

EP13

Trademark

IKP

Origin

China

HS Code

85043090

Production Capacity

50000pieces/Day

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Magnetic flux leakage small, easy to operate, especially for miniaturization of power supply design.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

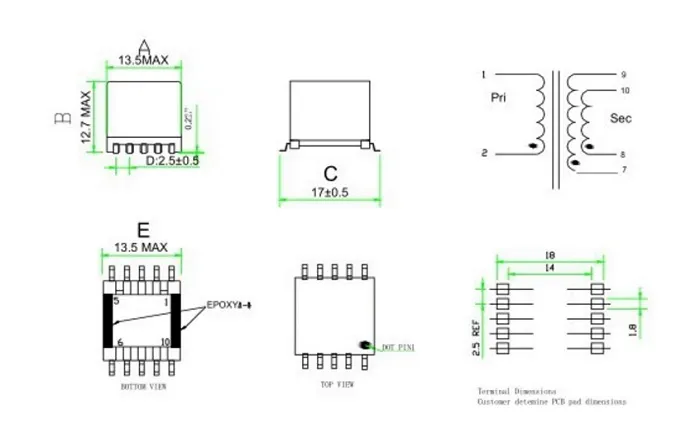

Physical and Electrical Performance Parameters:

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EP7	Horizontal	10.0Max	10.0±0.5	7.6±0.5	3.5±0.3	2.4±0.3	5.3±0.5	8W Max
EP10		12.0Max	10.9±0.5	11.0±0.5	3.5±0.3	2.5±0.3	7.5±0.5	15W Max
EP13		15.0Max	11.7±0.5	13.7±0.5	3.5±0.3	2.5±0.3	10.0±0.5	20W Max
EP17		20.0Max	15.0±0.5	19.0±0.5	4.0±0.3	5.0±0.3	15.0±0.3	25W Max
EPC13		14.5Max	7.5±0.5	13.4±0.5	3.5±0.3	2.5±0.3	10.5±0.5	15W Max
EPC17		19.0Max	9.7±0.5	15.5±0.5	3.5±0.3	3.0±0.3	13.0±0.5	20W Max
EPC19		21.0Max	9.5±0.5	19.0±0.5	2.5±0.3	2.5±0.3	21.2±0.5	25W Max
EPC25		27.0Max	15.7±0.5	24.9±0.5	3.5±0.3	5.0±0.3	20.0±0.5	45W Max
EP7	SMD	10.0Max	8.25±0.5	6.6±0.5	0.3±0.1	2.5±0.3	8.9±0.5	4.5W Max
EP10		12.0Max	9.0±0.5	10.5±0.5	0.2±0.1	2.5±0.3	14.6±0.5	8W Max
EP13		14.0Max	10.0±0.5	13.0±0.5	0.4±0.1	2.5±0.3	17.0±0.5	15W Max
EPC10		11.5Max	4.65±0.5	9.0±0.5	0.25±0.1	2.5±0.3	11.5±0.5	8W Max
EPC13		15.0Max	6.7±0.5	14.2±0.5	0.2±0.1	3.0±0.3	19.7±0.5	15W Max
EPC17		19.0Max	9.4±0.5	17.3±0.5	0.3±0.1	3.5±0.3	23.0±0.5	20W Max
EPC19		21.0Max	9.6±0.5	19.0±0.5	0.35±0.1	2.5±0.3	24.1±0.5	25W Max
