Pq High Frequency Transformer/Pq2016 Transformer

Pq High Frequency Transformer/Pq2016 Transformer

    • Pq High Frequency Transformer/Pq2016 Transformer
    • Pq High Frequency Transformer/Pq2016 Transformer
    • Pq High Frequency Transformer/Pq2016 Transformer
    • Pq High Frequency Transformer/Pq2016 Transformer

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-PQ206

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.36-0.50
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-PQ206
    Core
    Core-type Transformer
    Cooling Method
    Oil-immersed Type Transformer
    Winding Type
    Multi-winding Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Pq
    Brand
    OEM
    Version
    Vertical
    Transport Package
    Carton
    Specification
    RoHS/SGS/UL/ISO9001
    Trademark
    IKP
    Origin
    Hefei
    HS Code
    85043190
    Production Capacity
    5000000 Pics/Year

    Product Description

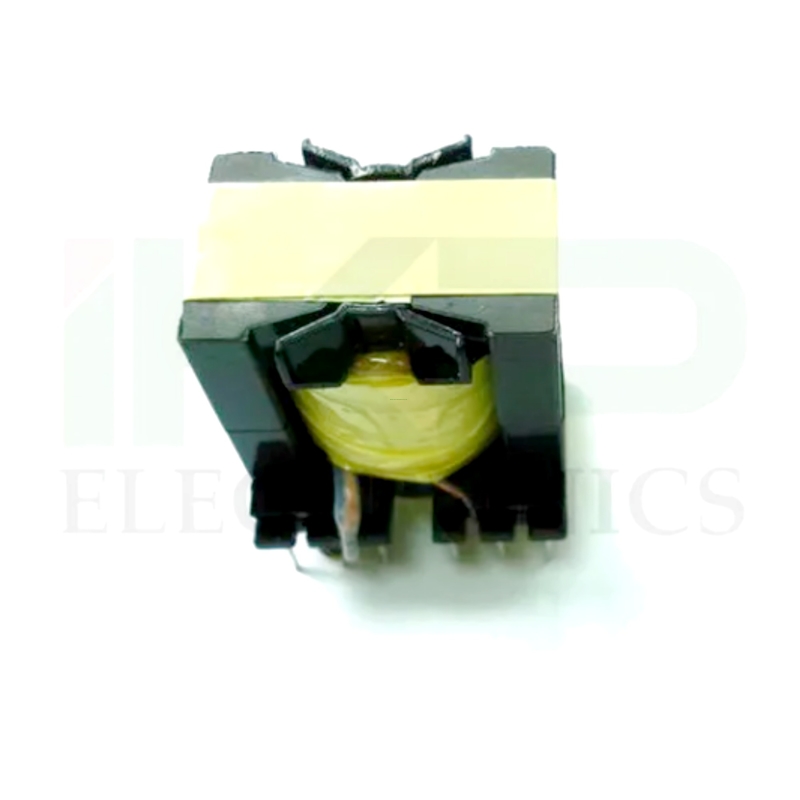

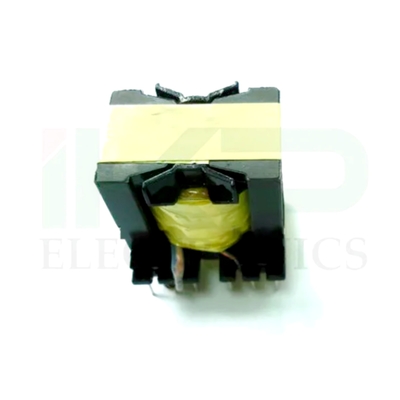

    Pq High Frequency Transformer/Pq2016 Transformer

    Features:
    1. Operating Frequency: 50~200KHz
    2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

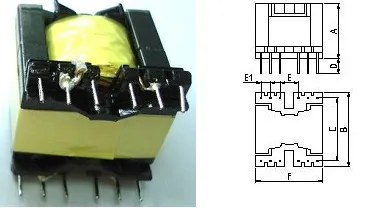

    Specifications (Unit: mm):
    Pq High Frequency Transformer/Pq2016 Transformer
    PART NO. PINS Dimensions(mm)
    A B C+/-0.5 D+/-0.5 E E1 F
    PQ2016 14 18.5 23.2 20.6 4 5 3.8 23.1
    PQ2020 14 22.3 23 20.3 4 5 3.8 23
    PQ2620 12 20 29.3 25.4 4 7.7 3.8 26.3
    PQ2625 12 28.5 29.6 25.5 4 7.62 3.8 27
    PQ3220 12 23.5 34.4 30.7 4 7.62 3.8 32.4
    PQ3230 12 33.5 34.2 30.7 4 7.52 5.08 32.3
    PQ3535 12 37.5 39.1 35.6 5 10.16 5.08 35
    PQ4040 12 41.5 42 38 5 15 5.08 40


    Note: The above are common skeleton styles; we accept customer requirements ODM or OEM. Welcome your design drawings or samples.

    Electrical performance:
    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 80 W
    3. Operating temperature:-40 ºCto +125 ºC
    4. Storage temperature:-25 ºCto +85 ºC
    Applications:
    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

    Kindly Reminder:
    1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
    2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
    3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
    5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
    6. Contact us now for more details:
    Business hotlines: + 86-551-63748663 63745886
