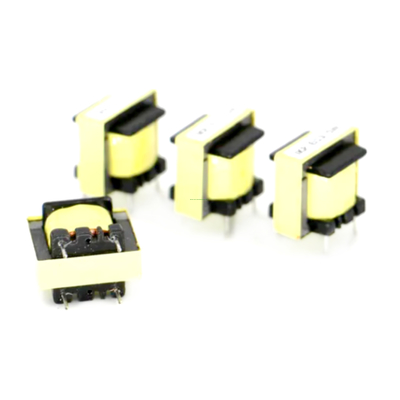

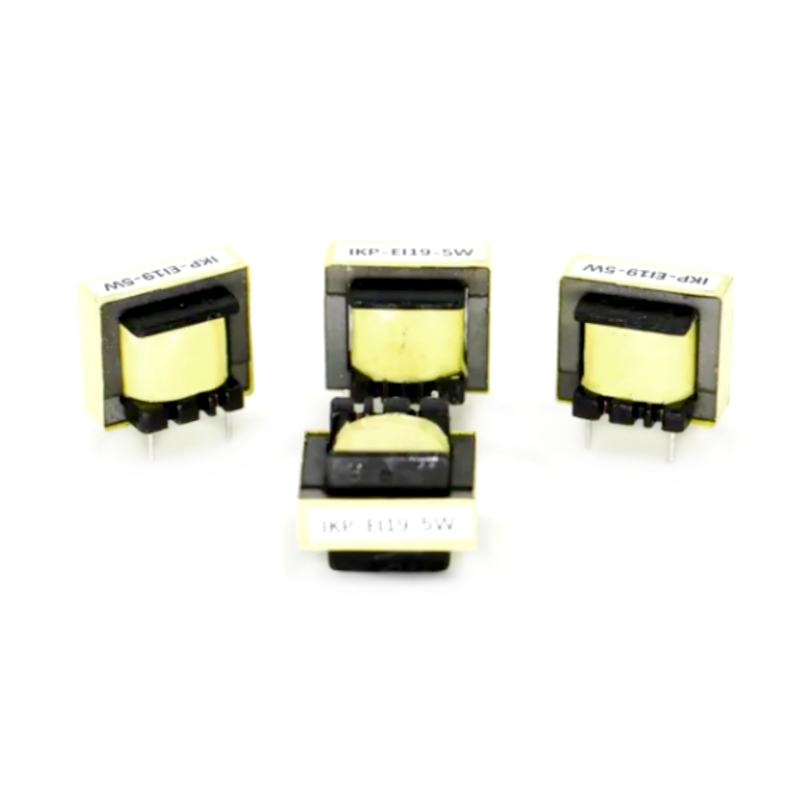

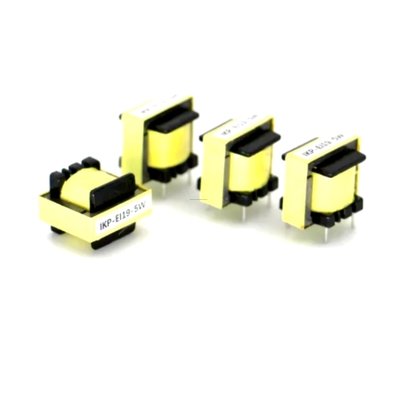

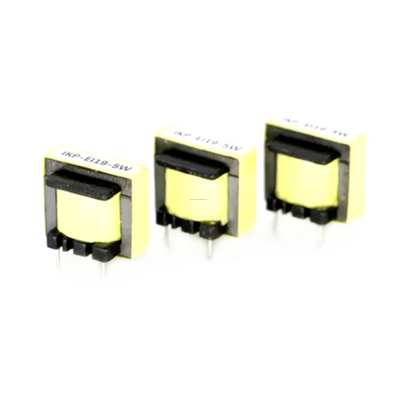

Ei Type Multi-Channel Step-up High Frequency Transformer with Factory Price

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EI190000-006R

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.17-0.22
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EI190000-006R

Core

Ferrite Core

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001-2000, ISO9001

Usage

Single-phase Transformer, Power Transformer

Frequency Characteristics

Power Frequency

Shape of Core

Brand

OEM

Customized Transformer

High Quality with RoHS

Transport Package

Carton/Pallet

Specification

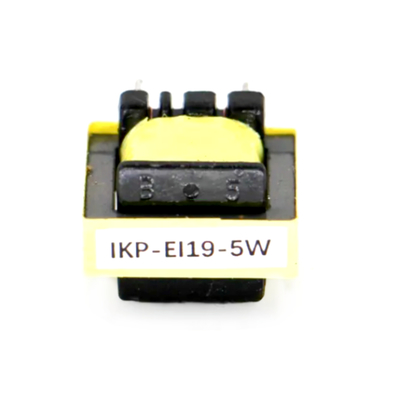

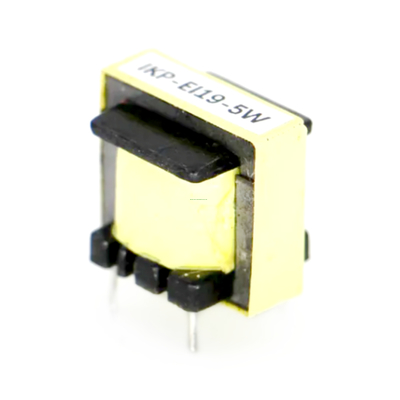

EI19-5W

Trademark

IKP

Origin

China

HS Code

850431900

Production Capacity

500, 000 PCS/Week

Product Description

FEATURES:
**Excellent raw materials
**High work efficiency
**Good thermal conductivity, low temperature rise
**Good insulation performance
**Excellent anti-interference ability
**No-load loss is small
**High DC superposition characteristics
**Very long service life
**Own brand
** 20 years of R&D and manufacturing experience
** 15 years of international trade experience

ELECTRICAL PERFORMANCE:
**Working frequency: 20kHz-500KHz
**Output power: 0.5 to 18 W
**Working temperature: -40 ° C to +125 ° C
**Storage temperature: -25 ° C to +85 ° C
**Storage humidity: 30 to 95%

APPLICATION:
DC-DC converters, drive transformers, auxiliary power transformers, boost circuit transformers, mobile equipment transformers, etc.

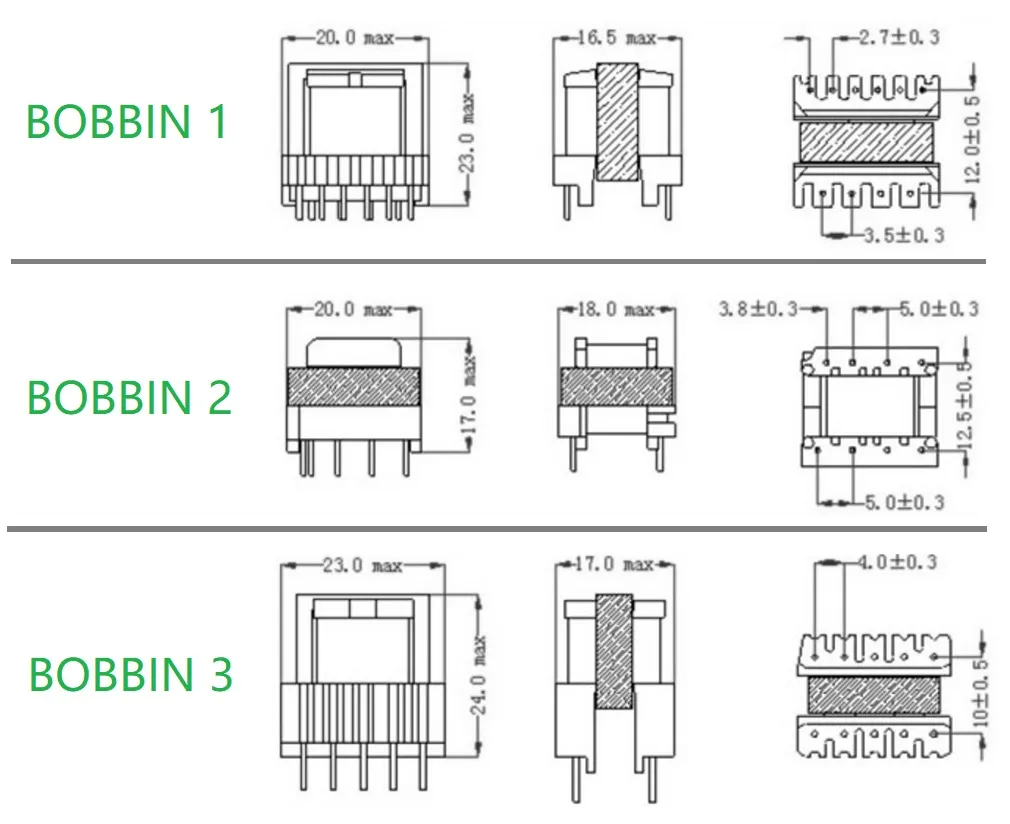

Model	Type	Bobbin	L(mm)	W(mm)	H(mm)	1 side pin		2 side pin
EI19-01	Vertical	1	20.0	16.5	23.0	4	3.5mm	6	2.7mm
EI19-02	Vertical	1	15.0	15.0	19.0	3	4.0mm	4	4.0mm
EI19-03	Horizontal	2	20.0	18.0	17.0	4	3.8/5.0mm	4	5.0mm
EI19-04	Horizontal	2	17.0	19.0	13.5	5	3.0mm	5	3.0mm
EI19-05	Vertical	3	23.0	17.0	24.0	4	4.0mm	4	4.0mm
