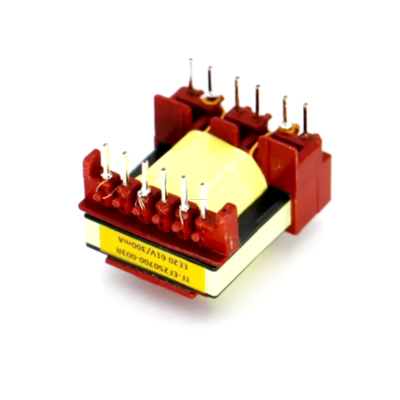

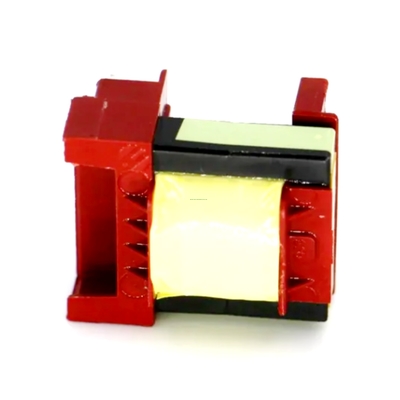

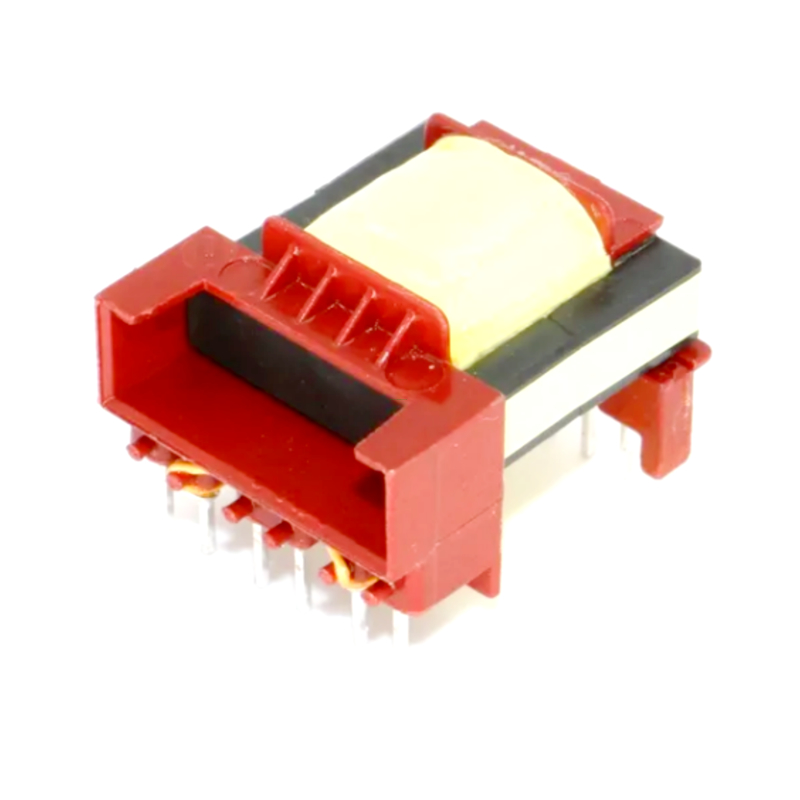

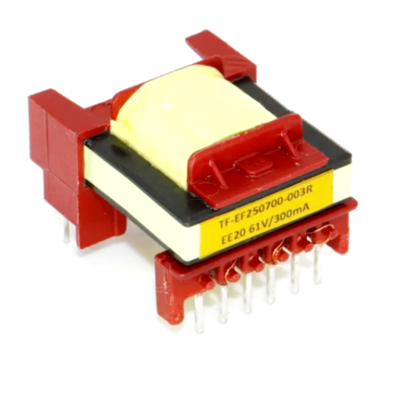

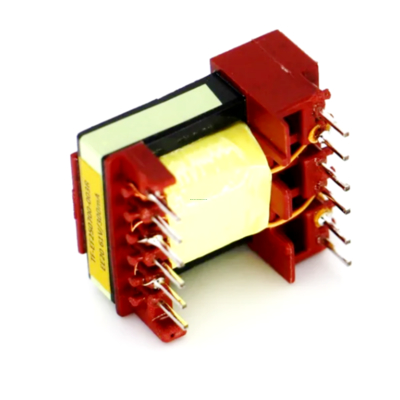

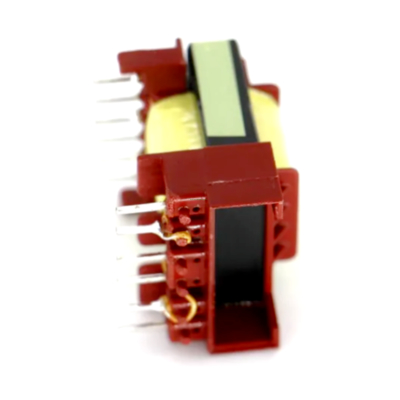

Horizontal Efd25 High Frequency Transformer with 6+6 Pins

Horizontal Efd25 High Frequency Transformer with 6+6 Pins

    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    • Horizontal Efd25 High Frequency Transformer with 6+6 Pins

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-LF-EFD Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.52-0.55
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-LF-EFD Series
    Core
    Core-type Transformer
    Cooling Method
    Dry-type Transformer
    Winding Type
    Separated Winding Transformer
    Certification
    ISO9001-2000, ISO9001, CCC
    Usage
    Single-phase Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Efd
    Brand
    Ikp
    Transport Package
    Carton & Tray
    Specification
    EFD SERIES
    Trademark
    IKP-ELEC
    Origin
    Hefei, China
    HS Code
    85043190
    Production Capacity
    50000PCS/Week

    Product Description

    FEATURES:
    1. Operating Frequency: 50~200KHz
    2. Magnetic flux leakage small, high power density, suitable for flat design.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Physical and Electrical Performance Parameters
    Type Shape Structure Dimension Power range
    A B C D E F
    EFD10 SMD 12.0Max 5.1±0.5 14.6±0.5 0.3±0.1 2.54±0.3 12.4±0.5 12W Max
    EFD12 14.0Max 6.2±0.5 16.3±0.5 0.3±0.1 3.0±0.3 20.0±0.5 15W Max
    EFD15 16.5Max 7.5±0.5 14.8±0.5 0.4±0.1 2.4±0.3 21.4±0.5 25W Max
    EFD20 22.0Max 9.6±0.5 20.1±0.5 0.4±0.1 3.75±0.3 25.1±0.3 30W Max
    EFD25 26.5Max 12.6±0.5 26.0±0.5 0.4±0.1 5.0±0.3 31.5±0.5 45W Max
    EFD30 31.5Max 11.8±0.5 31.0±0.5 3.7±0.3 5.0±0.3 40.0±0.5 100W Max
    EFD40 49.0Max 12.7±0.5 44.3±0.5 4.2±0.3 5.0±0.3 65.0±0.5 350W Max
    EFD50 57.0Max 12.7±0.5 48.7±0.5 4.6±0.3 5.0±0.3 72.4±0.5 650W Max
    EFD15 Horizontal 16.0Max 8.5±0.5 16.5±0.5 3.5±0.1 3.7±0.3 13.8±0.5 20W Max
    EFD20 21.0Max 10.5±0.5 20.5±0.5 4.0±0.1 4.0±0.3 17.0±0.3 25W Max
    EFD25 26.0Max 13.5±0.5 26.2±0.5 4.2±0.1 5.0±0.3 22.5±0.5 45W Max
    EFD30 32.0Max 15.0±0.5 31.5±0.5 3.5±0.3 5.0±0.3 28.0±0.5 100W Max
    EFD40 41.5Max 22.0±0.5 46.5±0.5 4.0±0.3 5.0±0.3 35.0±0.5 350W Max
    EFD50 52.0Max 13.0±0.5 48.7±0.5 2.5±0.3 5.0±0.3 72.2±0.5 550W Max

    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
    Horizontal Efd25 High Frequency Transformer with 6+6 Pins
