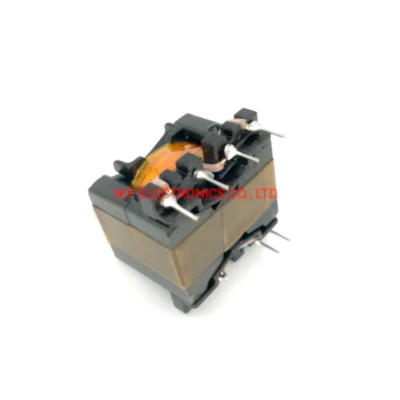

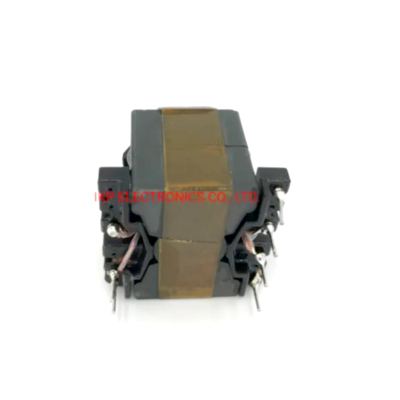

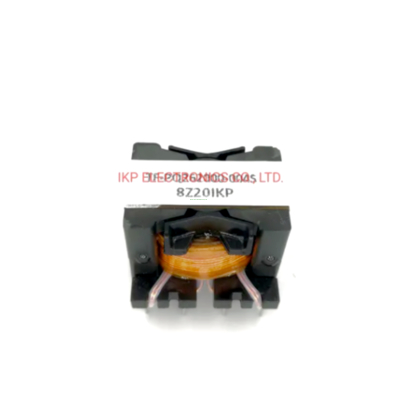

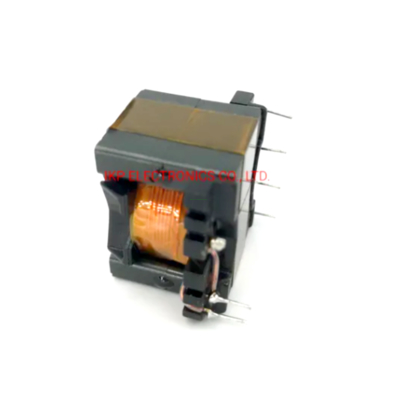

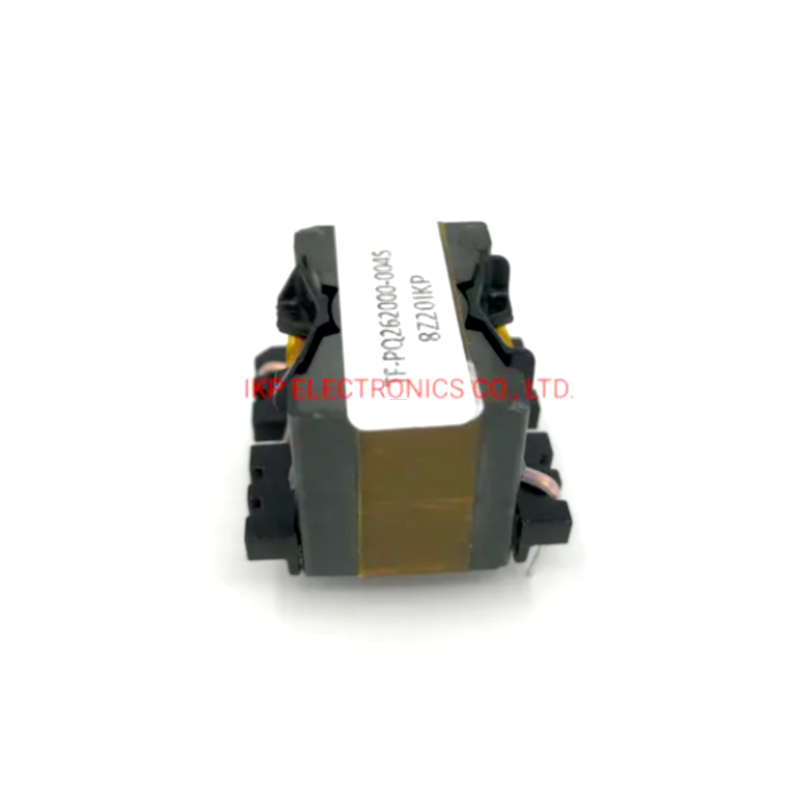

Electric Power Transformer SMPS High Frequency Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	TF-PQ262000-004S

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.75-0.85
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

TF-PQ262000-004S

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001

Usage

Rectifier Transformer, Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Pq26

Brand

Ikp

Inductance Value

55uh

Transport Package

Carton

Specification

PQ26

Trademark

IKP

Origin

China

HS Code

8504319000

Production Capacity

5000000

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

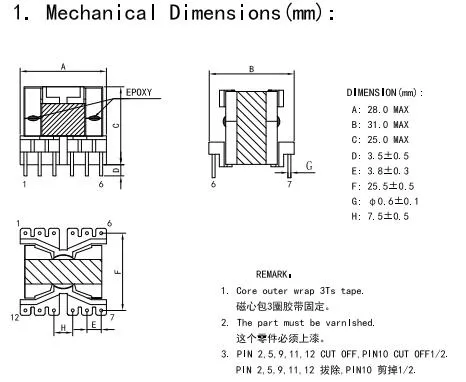

Specifications (Unit: mm):

Electric Power Transformer SMPS High Frequency Transformer

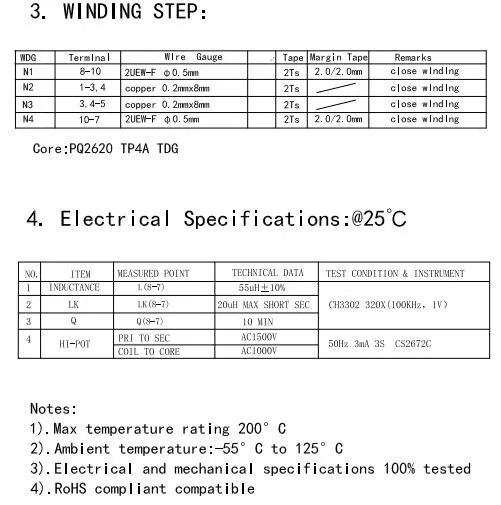

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 2000 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC

Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments, Inverters for EV and PV, Audio amplifiers.
