Name: SMD Type Eel22 High Frequency Transformer with Flying Leads
Brand: IKP Electronics Co., Ltd.
Price: 0.95 USD
Availability: InStock

Home Products High Frequency Transformers

SMD Type Eel22 High Frequency Transformer with Flying Leads

Product Details:

Brand Name:	IKP

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.95-0.99
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-LF-EEL22

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Auto-transformer

Certification

ISO9001-2000, ISO9001, CCC

Usage

Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton and Tray

Specification

TBD

Trademark

IKP

Origin

China

HS Code

85043190

Production Capacity

50000pieces/Day

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models, mainly used in the power of the electromagnetic shielding less demanding fields, especially designed for multi-winding output.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

Demensions:

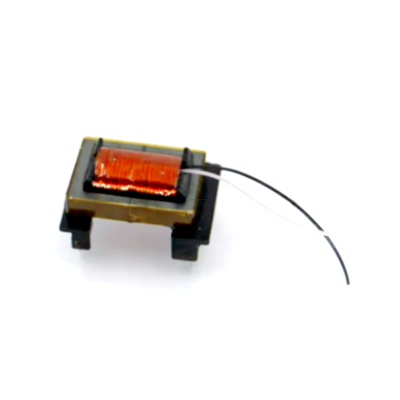

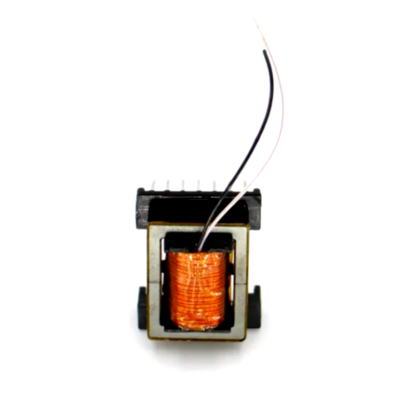

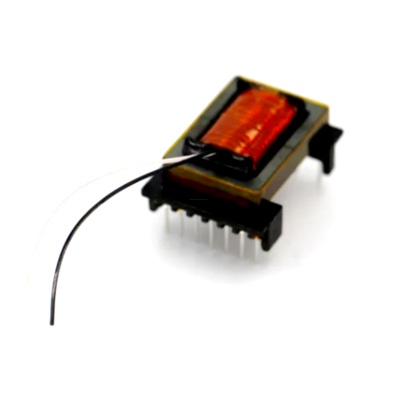

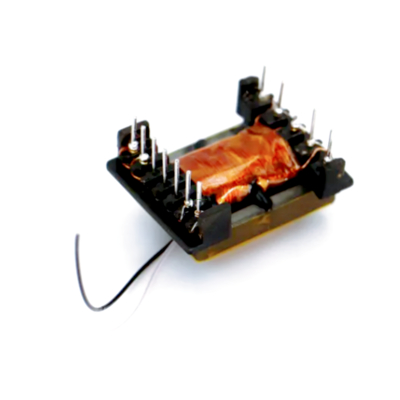

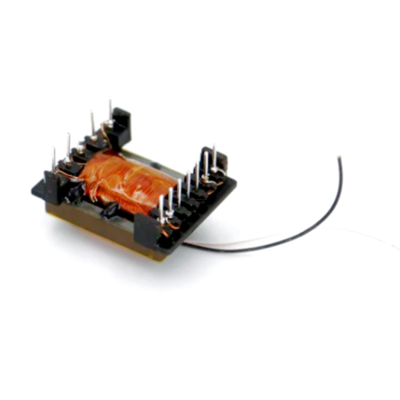

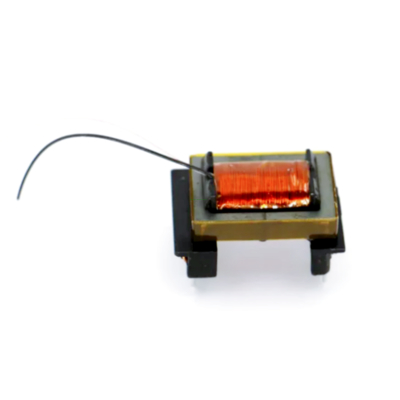

SMD Type Eel22 High Frequency Transformer with Flying Leads

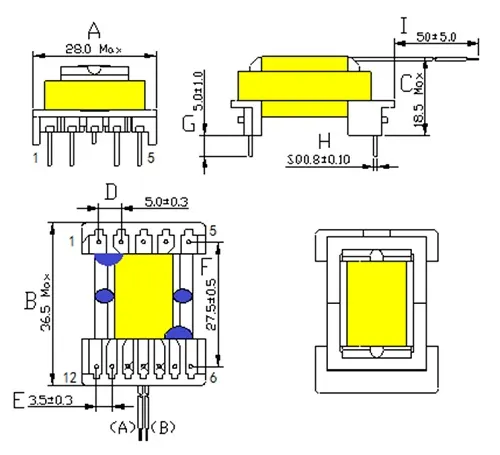

Physical and Electrical Performance Parameters:

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
EEL16	Horizontal	18.5Max	13.1±0.5	28.0Max	3.5±0.3	3.0±0.2	22.5±0.5	15W Max
EEL19		22.0Max	15.6±0.5	32.0Max	3.5±0.3	3.5±0.2	24.2±0.5	20W Max
EEL22		28.5Max	17.8±0.5	37.0Max	3.5±0.3	3.5±0.2	27.6±0.5	35W Max
EEL25		28.5Max	19.8±0.5	35.0Max	3.5±0.3	4.0±0.2	27.2±0.5	45W Max
EEL16	Vertical	18.5Max	30.1±0.5	15.9±0.5	3.5±0.3	2.7±0.2	12.2±0.5	15W Max
EEL19		22.0Max	29.3±0.5	16.0±0.5	3.5±0.3	4.0±0.2	10.0±0.5	20W Max
EEL22		28.5Max	27.7±0.5	17.0±0.5	3.5±0.3	5.0±0.2	12.5±0.5	35W Max
EEL25		28.5Max	32.8±0.5	17.5±0.5	3.5±0.3	5.0±0.2	12.6±0.5	45W Max

***We can design and manufacture customized part with specific requirement

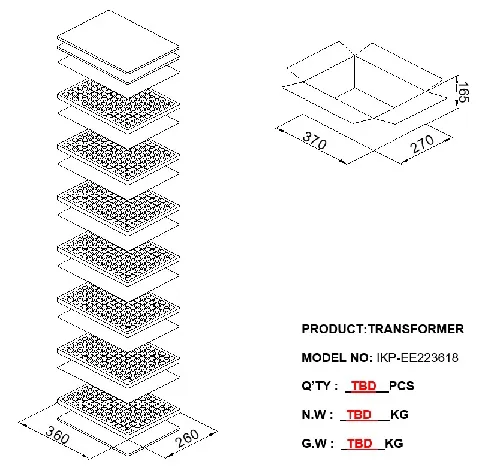

Packaging Dimensions:
SMD Type Eel22 High Frequency Transformer with Flying Leads
