Name: SMD Type Er9.5 High Frequency Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-ER9.5
Price: 0.28 USD
Availability: InStock

Home Products High Frequency Transformers

SMD Type Er9.5 High Frequency Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-ER9.5

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.28-0.33
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-ER9.5

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Two-winding Transformer

Certification

ISO9001-2000, ISO9001, CCC

Usage

Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

OEM/ODM

Type

SMD Transformer

Transport Package

Carton/Pallet

Specification

Rohs, ISO9001

Trademark

IKP-ELEC

Origin

Anhui, Hefei

HS Code

850431900

Production Capacity

500, 000 PCS/Week

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

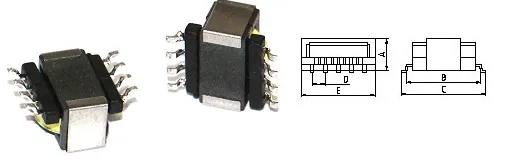

Specifications (Unit: mm):

SMD Type Er9.5 High Frequency Transformer

P/N.	PINS	Dimensions(mm)
P/N.	PINS	A	B	C+/-0.5	D	E	FIG
IKP-EFD-12	8	6	17	20	3	13.5	2
IKP-EFD-15	10	7.3	18.2	21.35	2.5	15	1
IKP-EFD-15	10	7.5	19.3	22.6	3	16.7	2
IKP-EFD-20	10	9.4	25.3	27.7	3.75	21.7	2
IKP-EFD-20	12	9.7	24	26.8	3	20	1
IKP-EFD-25	10	13.4	29.7	35.4	5	25	2
IKP-EFD-25	10	12.6	29.7	31.5	5	25	1
IKP-EFD-30	12	12.6	31.6	35.3	5	30	2

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 2000 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC

Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

SMD Type Er9.5 High Frequency Transformer
