Name: Ef20 Horizontal Type High Frequency Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-EF20-SW
Price: 0.36 USD
Availability: InStock

Home Products CCFL Transformers

Ef20 Horizontal Type High Frequency Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-EF20-SW

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.36-0.47
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-EF20-SW

Core

Ef Type, Ferrite Core

Cooling Method

Dry-type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001, CCC, SGS

Usage

Combined Transformer

Frequency Characteristics

High Frequency

Shape of Core

Efd

Brand

OEM

Transport Package

Carton/Pallet

Specification

Rohs, ISO9001

Trademark

IKP

Origin

Hefei, Anhui

HS Code

85043190

Production Capacity

50, 000 PCS/Week

Product Description

Features:
1. Operating Frequency: 50~200KHz
2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

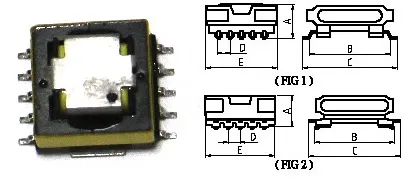

Specifications (Unit: mm):

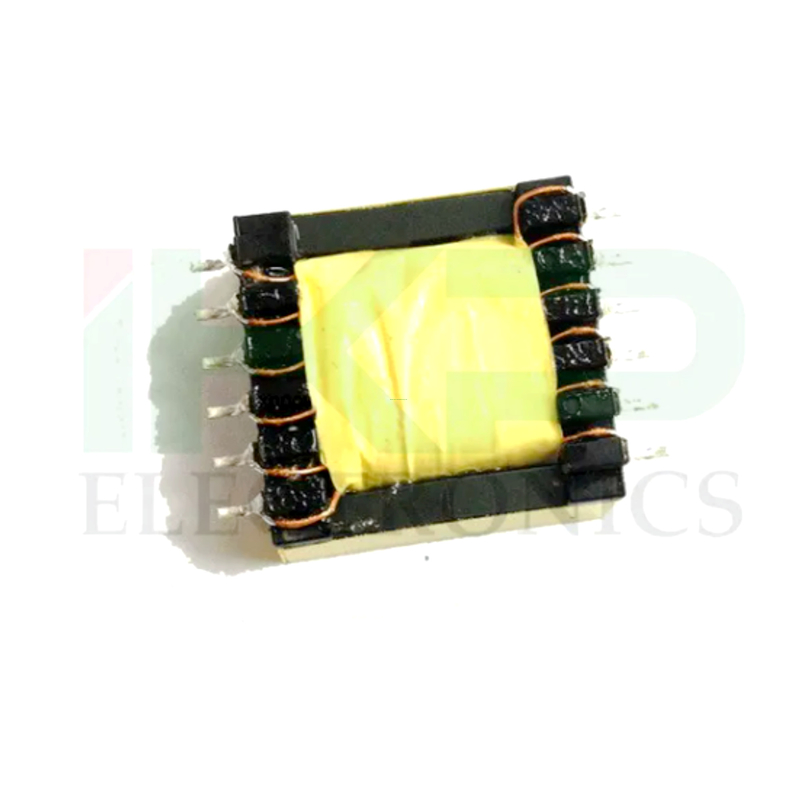

Ef20 Horizontal Type High Frequency Transformer

P/N.	PINS	Dimensions(mm)
P/N.	PINS	A	B	C+/-0.5	D	E	FIG
EFD-12	8	6	17	20	3	13.5	2
EFD-15	10	7.3	18.2	21.35	2.5	15	1
EFD-15	10	7.5	19.3	22.6	3	16.7	2
EFD-20	10	9.4	25.3	27.7	3.75	21.7	2
EFD-20	12	9.7	24	26.8	3	20	1
EFD-25	10	13.4	29.7	35.4	5	25	2
EFD-25	10	12.6	29.7	31.5	5	25	1
EFD-30	12	12.6	31.6	35.3	5	30	2

Electrical performance:
1. Operating frequency: 20kHz-500KHz
2. Output power: 30 to 2000 W
3. Operating temperature:-40 ºCto +125 ºC
4. Storage temperature:-25 ºCto +85 ºC
Ef20 Horizontal Type High Frequency Transformer

Applications:
Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

Kindly Reminder:
1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
4. About PAYMENT. Foreign customers:100% T / T; domestic customers: 30 days after delivery, according to the invoice payment.
5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
6. Contact us now for more details:
