Name: Horizontal Etd39 Type High Frequency Transformer with 7+5 Pins
Brand: IKP Electronics Co., Ltd.
SKU: TF-TD391300-001R
Price: 0.84 USD
Availability: InStock

Home Products CCFL Transformers

Horizontal Etd39 Type High Frequency Transformer with 7+5 Pins

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	TF-TD391300-001R

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.84-0.88
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

TF-TD391300-001R

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001, CCC

Usage

Power Transformer

Frequency Characteristics

High Frequency

Shape of Core

Etd Type

Brand

Ikp

Transport Package

Carton

Specification

RoHS/SGS/UL/ISO9001

Trademark

IKP

Origin

Hefei

HS Code

85043190

Production Capacity

5000000 Pics/Year

Product Description

FEATURES:
-High Power
-Low Profile
-Inexpensive Type
-High Reliability
- Low price
- Cost-effective
- High impedance and low loss
-High Conversion Efficiency
-Easily Inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

APPLICATION:
-DC/DC Converter Transformer
-Current Transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

SPECIFICATIONS:
-Operating Temperature: -25° C to +60° C
-Storage Temperature: -25° C to +85° C
-Operating Humidity: 30 to 95%RH
-Storage Humidity: 30 to 95%RH

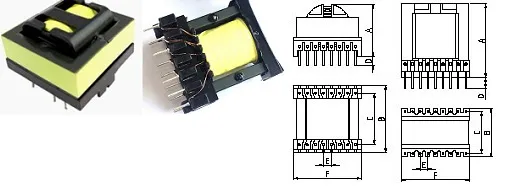

Type	Shape Structure	Dimension						Power range
Type	Shape Structure	A	B	C	D	E	F	Power range
ETD29	Horizontal	34.0Max	24.6±0.5	35.2±0.5	4.0±0.3	5.0±0.3	25.8±0.5	65W Max
ETD34		41.0Max	29.4±0.5	40.3±0.5	4.0±0.3	5.0±0.3	25.6±0.5	400W Max
ETD39		46.0Max	35.3±0.5	44.0±0.5	4.0±0.3	5.0±0.3	30.4±0.5	500W Max
ETD44		52.0Max	39.5±0.5	51.0±0.5	4.0±0.3	5.0±0.3	35.8±0.5	600W Max
ETD49		57.0Max	41.6±0.5	57.3±0.5	4.0±0.3	5.0±0.3	40.7±0.5	650W Max
ETD59		69.0Max	48.3±0.5	65.7±0.5	4.0±0.3	5.0±0.3	50.8±0.5	2000W Max
ETD29	Vertical	37.0Max	39.0±0.5	23.8±0.5	4.0±0.3	5.0±0.3	20.3±0.5	65W Max
ETD34	Vertical	45.0Max	47.4±0.5	23.4±0.5	4.0±0.3	5.0±0.3	20.3±0.5	400W Max
