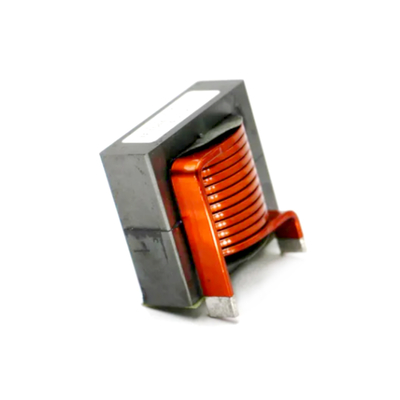

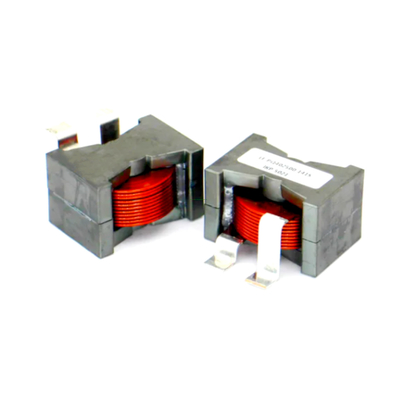

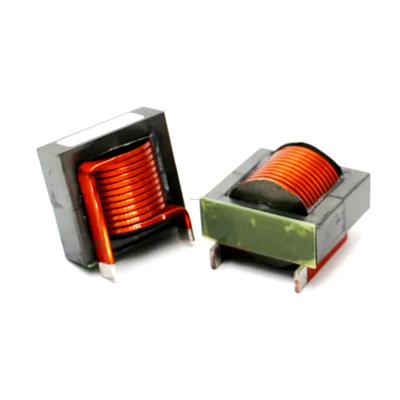

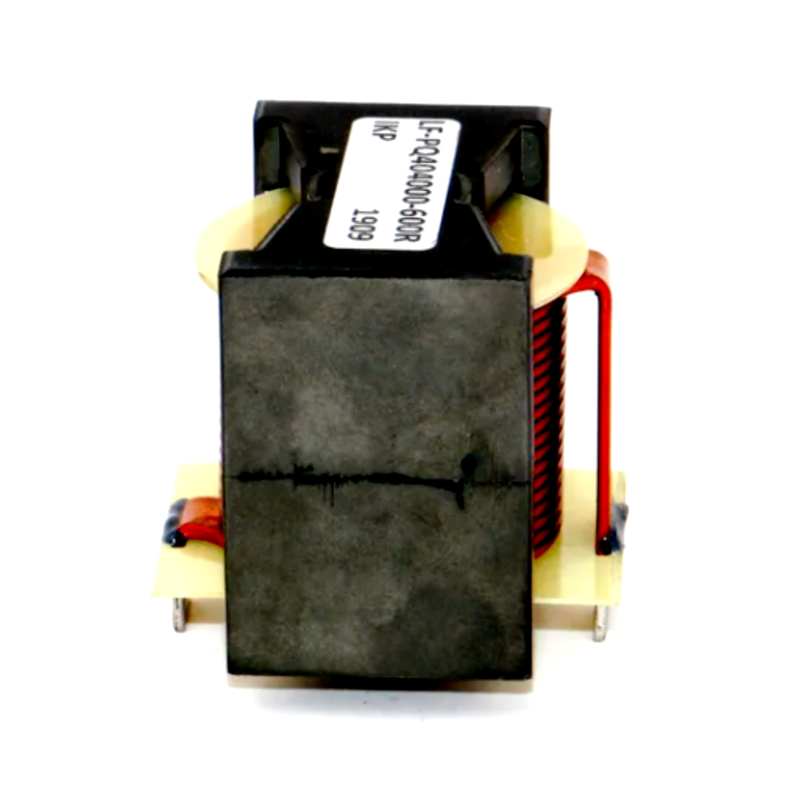

Name: DC-DC Inverter CE/SGS/BV/RoHS Ikp Flat Wire Inductor High Frequency Transformer
Brand: IKP Electronics Co., Ltd.
Price: 0.82 USD
Availability: InStock

Home Products CCFL Transformers

DC-DC Inverter CE/SGS/BV/RoHS Ikp Flat Wire Inductor High Frequency Transformer

Product Details:

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.82-0.88
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-PT-LF Series

Core

Core-type Transformer

Cooling Method

Dry-type Transformer

Winding Type

Auto-transformer

Certification

CCC, CE/SGS/BV/RoHS

Usage

Single-phase Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton

Specification

IKP-PT-PQ Series

Trademark

IKP

Origin

Hefei, China

HS Code

85043190

Production Capacity

20, 000pieces/Week

Product Description

Features:
*High Power (50W~1000W)
*Magnetic shielding structure
*Magnetic circuit closed
*High resistance to EMI
*Low Temperature, low Loss
*Welding firmly, easy soldering, anti-oxidation
*Easy installation
*Lead-free, in line with RoHS directives
*Low DC resistance
*Rapid stripping process with smooth and no deformed pin
*Factory directly supplied Products of IKP electronics co., ltd.

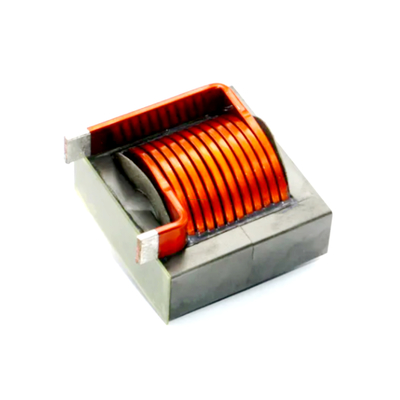

DC-DC Inverter CE/SGS/BV/RoHS Ikp Flat Wire Inductor High Frequency Transformer

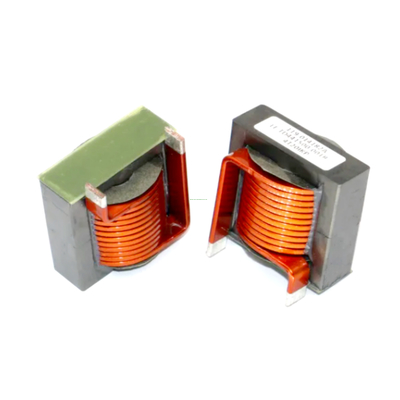

DC-DC Inverter CE/SGS/BV/RoHS Ikp Flat Wire Inductor High Frequency Transformer

Application:
Widely used in Industrial motherboard, laptop, car equipment, DC/DC inverter, LED, Medical equipment, Military electronics, etc.

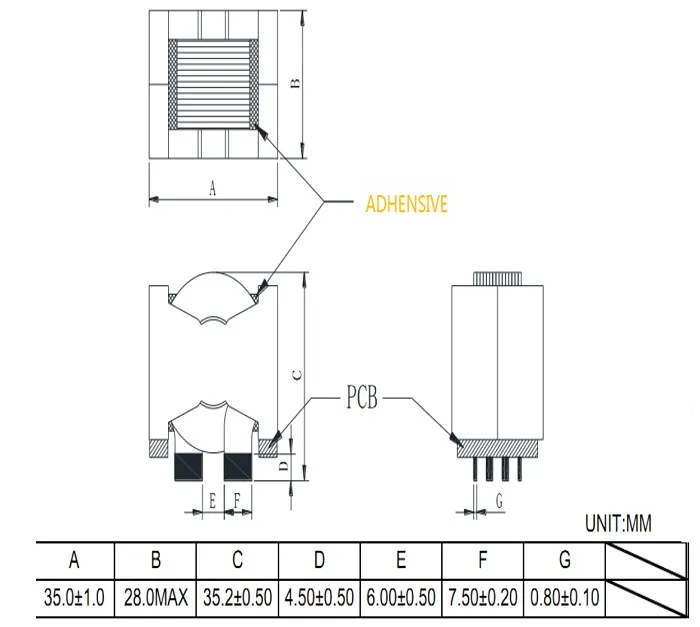

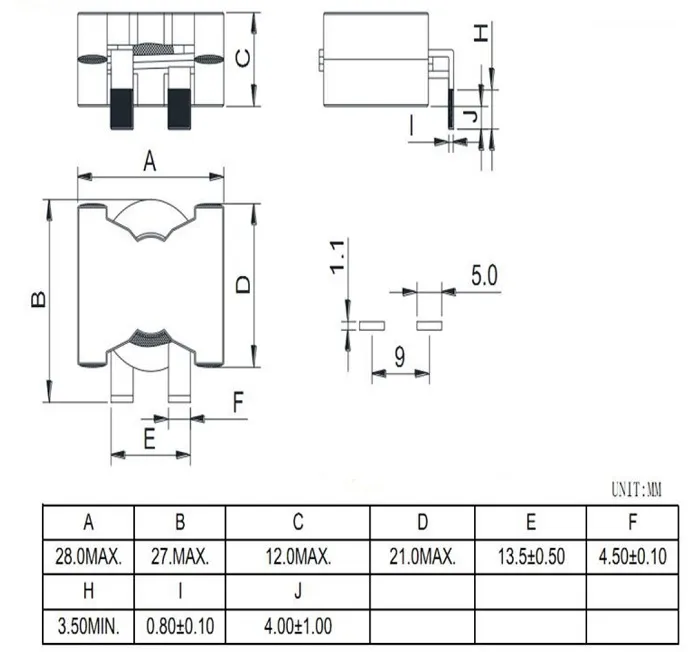

Specifications:

Model	A	B	C(Max)	D(Max)	E(Min)	F	G
PQ2012	20.5±0.4	14.0±0.3	22.50	12.00	2.00	3.5±0.2	5.0±0.2
PQ2014	20.5±0.4	14.0±0.3	22.50	14.50	2.00	3.5±0.2	5.0±0.2
PQ2016	20.5±0.4	14.0±0.3	22.50	16.50	2.00	3.5±0.2	5.0±0.2
PQ2915	27.5±0.5	19.5±0.5	27.90	15.40	3.80	3.8±0.2	6.6±0.2
PQ2918	27.5±0.5	19.5±0.5	27.90	17.80	3.80	3.8±0.2	6.6±0.2
