Name: Customized RM4/5/6/7/8/9/10/12/13/14 High Frequency Ikp-Elec Carton China Voltage Power Distribution Electrical Transformer
Brand: IKP Electronics Co., Ltd.
SKU: IKP-HF-RM140000-001R
Price: 0.93 USD
Availability: InStock

Home Products High Frequency Transformers

Customized RM4/5/6/7/8/9/10/12/13/14 High Frequency Ikp-Elec Carton China Voltage Power Distribution Electrical Transformer

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-HF-RM140000-001R

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.93-0.98
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-HF-RM140000-001R

Core

Core-type Transformer

Cooling Method

Oil-immersed Type Transformer

Winding Type

Multi-winding Transformer

Certification

ISO9001-2000, ISO9001, CCC, CE/UL/BV

Usage

Hf Transformer

Frequency Characteristics

High Frequency

Shape of Core

Brand

Ikp

Transport Package

Carton

Specification

RM4/5/6/7/8/9/10/12/13/14

Trademark

IKP-ELEC

Origin

China

HS Code

85043190

Production Capacity

9000000 Pics/Year

Product Description

FEATURES:
-High saturation magnetic flux density ferrite
-Low profile
-Inexpensive type
-High reliability
- Low price
- Cost-effective
- High impedance and low loss
-High conversion efficiency
-Easily inserted into PCB
- RoHS compliance and UL
- Custom designs are welcome, Can specify special materials, the skeleton shape can be customized.

APPLICATION:
-DC/DC converter transformer
-Current transformer
-Switching power supply, Adapter and UPS
-Computer products
-DVD
-LED power board
-LCD TV & Monitor Displays Power Boards
-Consumer Electric Products & Battery Charger, Printers
- Specially used in switching power supply and kinds of high-frequency circuit
- Plays a role in oscillating and separating

SPECIFICATIONS:
-Operating Temperature:-25°C to +60°C
-Storage Temperature:-25°C to +85°C
-Operating Humidity: 30 to 95%RH
-Storage Humidity: 30 to 95%RH

Customized RM4/5/6/7/8/9/10/12/13/14 High Frequency Ikp-Elec Carton China Voltage Power Distribution Electrical Transformer

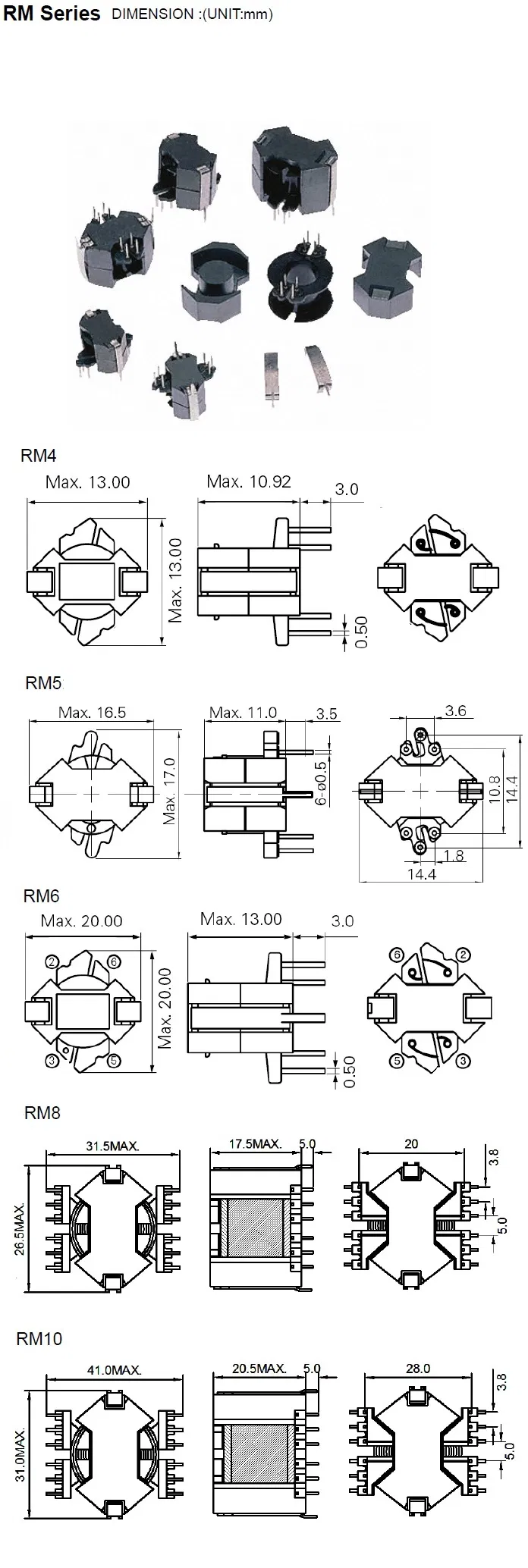

Model No.	Terminal Pins	Dimension (mm)			Electrical Parameter
Model No.	Terminal Pins	A	B	C	Inductance	Output Power(W)
RM-4	6	7.8	13.5	12.6	15.0uH/3.5mH	1.0-5.0
RM-5	6	7.2	15.5	16.0	25.0uH8.8/mH	1.0-8.0
RM-6	6	13.5	18.5	20.7	65.0uH/99.0Mh	1.0-9.0
RM-6-1	8	12.8	18.5	18.5	65.0uH/120.0mH	1.0-14.0
RM-8	12	12.1	23.5	24.0	55.0uH/1.0H	1.0-20.0
RM-8-1	12	17.5	29.8	23.4	8.0uH/1.5H	1.0-20.0
RM-10	12	13.4	28.5	28.1	100.0uH/2.5mH	1.0-25.0
RM-10-1	12	19.6	39.4	23.3	55.0uH/2.5mH	1.0-25.0
RM-12	12	17.7	38.5	38.5	85.0uH/3.0mH	1.0-30.0
RM-12-1	12	23.7	45.2	28.4	95.0uH/3.0H	1.0-30.0
RM-14	12	29.0	48.4	31.4	90.0uH/5.0H	1.0-50.0
