Key Specifications/ Special Features:
Features:
1. 1.5~15kW
2. Grade: premium-S
3. H-mounting, V-mounting
4. High frequency 20~50kHz
5. Extra low audio noise
6. Competitive cost performance
7. Open structure makes easy modification
8. Organic silicone potting, soft material, good shock absorption and protection effect
9. The physical and chemical properties are stable, high temperature and low temperature resistance, can work in the range of -50 ~ 200 degrees
10. Excellent electrical performance and insulation ability, long service life
11. The soft potting compound is easy to take out, and the components can be repaired or replaced quickly
Product Details:
Brand: IKP
L: 1000μH, 1200μH, 1300μH, 1400μH
Insulation system: Class B 130°C
Storage temperature: -40°C ~80°C
Operation temperature: -40°C ~130°C
Layer insulation: 1.0kWac no flashover
Electrical and mechanical specifications 100% tested
RoHS compliant compatible
Application:
Filtering
Current leveling
Limitation of the starting currents of the asynchronous motors ( starting motors reactors )
DC/DC converters ( buck converter, boost converter, buck-boost converter )
Electronic inverters
Toroidal inductors ideal for UPS
Toroidal inductors for buck-boost inverters ( also with aluminum conductors )
HF AC/DC inductors with low cost for alternate and continuous current
Three-Phase AC Reactors for AFE ( Active Front End ) with ripple superimposed in high frequency on low frequency signal
Applications of power electronics (welding, galvanic, photovoltaic, ultrasonic, induction ovens, plasma cutting, harmonic filter, crown treatment, UPS, renewable energy, chargers, rail, solar, wind and automotive)
1. 1.5~15kW
2. Grade: premium-S
3. H-mounting, V-mounting
4. High frequency 20~50kHz
5. Extra low audio noise
6. Competitive cost performance
7. Open structure makes easy modification
8. Organic silicone potting, soft material, good shock absorption and protection effect
9. The physical and chemical properties are stable, high temperature and low temperature resistance, can work in the range of -50 ~ 200 degrees
10. Excellent electrical performance and insulation ability, long service life
11. The soft potting compound is easy to take out, and the components can be repaired or replaced quickly
Product Details:
Brand: IKP
L: 1000μH, 1200μH, 1300μH, 1400μH
Insulation system: Class B 130°C
Storage temperature: -40°C ~80°C
Operation temperature: -40°C ~130°C
Layer insulation: 1.0kWac no flashover
Electrical and mechanical specifications 100% tested
RoHS compliant compatible
Application:
Filtering
Current leveling
Limitation of the starting currents of the asynchronous motors ( starting motors reactors )
DC/DC converters ( buck converter, boost converter, buck-boost converter )
Electronic inverters
Toroidal inductors ideal for UPS
Toroidal inductors for buck-boost inverters ( also with aluminum conductors )
HF AC/DC inductors with low cost for alternate and continuous current
Three-Phase AC Reactors for AFE ( Active Front End ) with ripple superimposed in high frequency on low frequency signal
Applications of power electronics (welding, galvanic, photovoltaic, ultrasonic, induction ovens, plasma cutting, harmonic filter, crown treatment, UPS, renewable energy, chargers, rail, solar, wind and automotive)

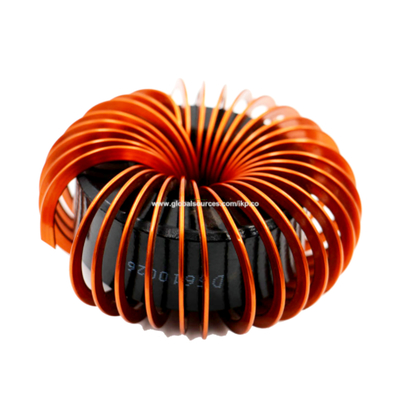

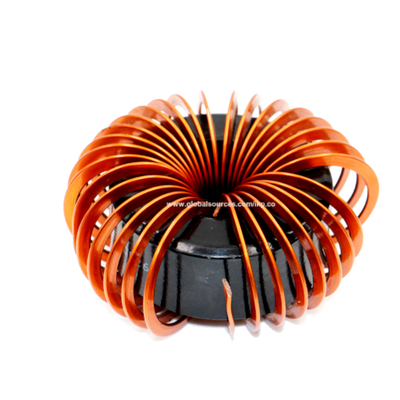

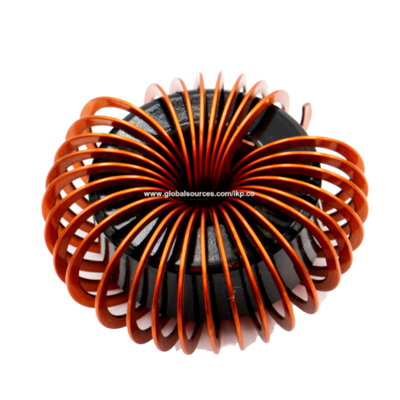

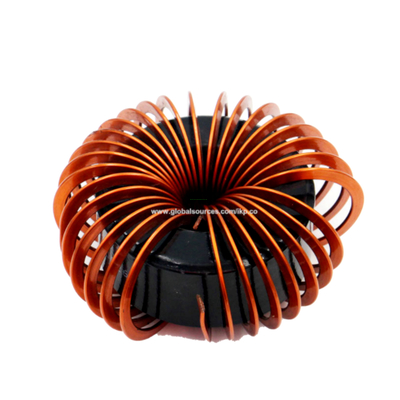

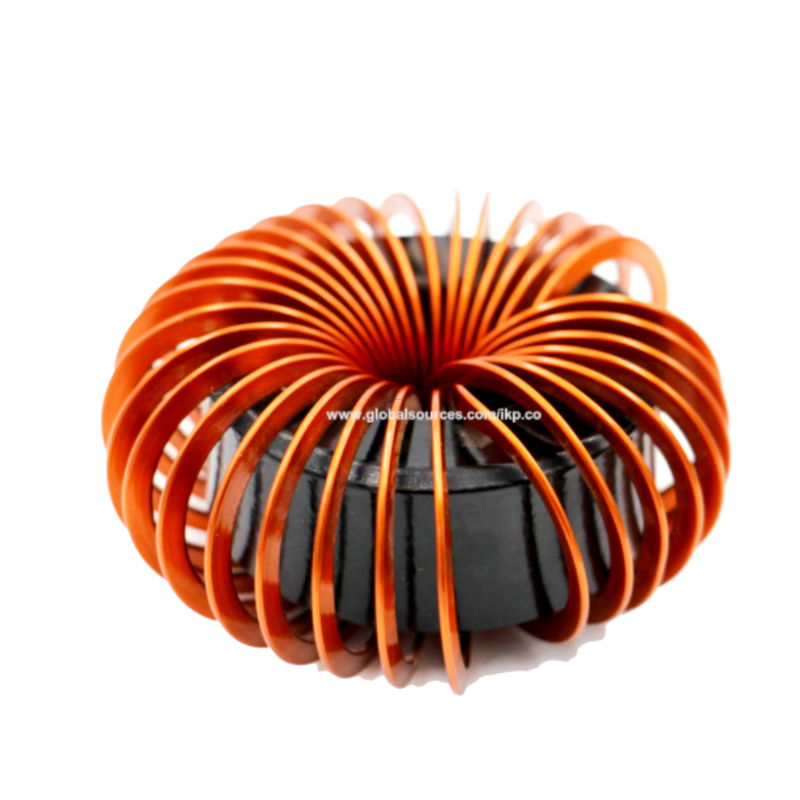

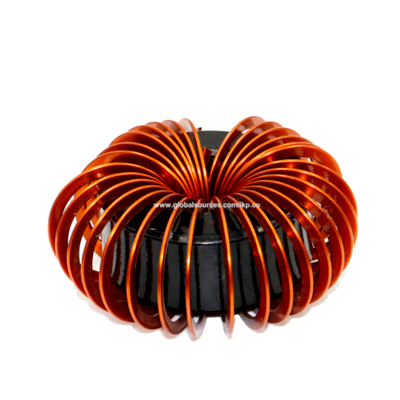

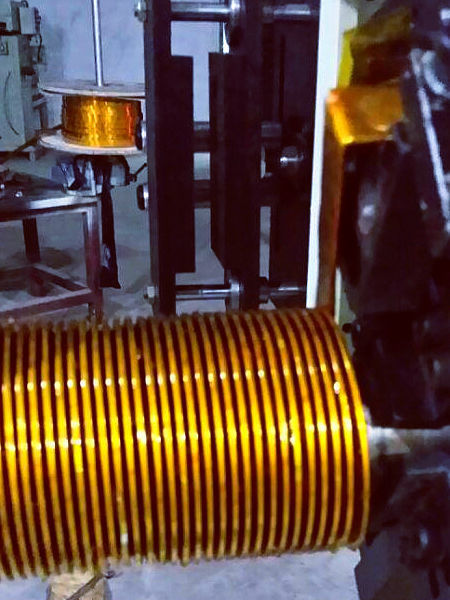

Flat wires are ideal for high power applications, save space and beneficial for automated production. IKP's high current power chokes include SQ series, shielded series, toroid core series, rod core series and air coil series.

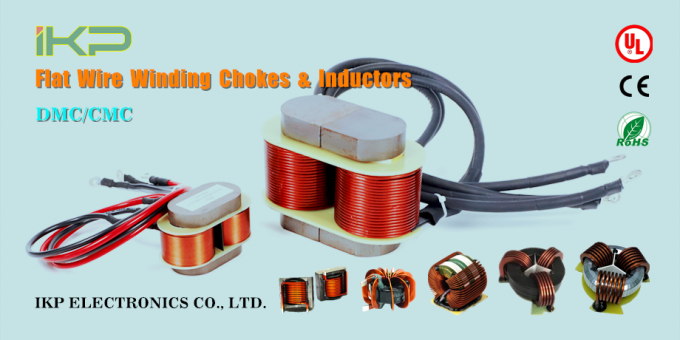

Flat wire winding chokes achieve a very low DCR, closed magnetic circuit, ultra-low buzz noise. They can evenly disperse the electric field, minimize parasitic capacitance, achieve the best EMI effect, and completely solve the electromagnetic compatibility problem.
