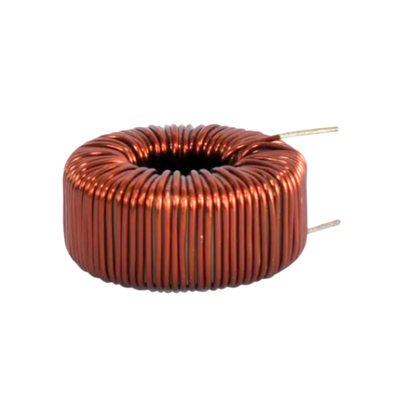

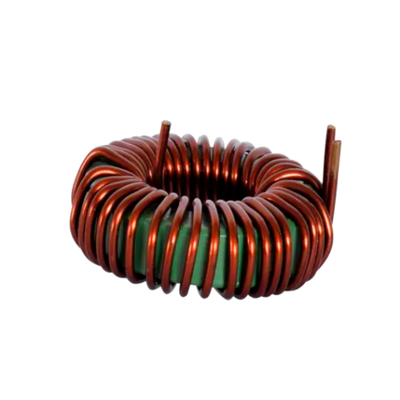

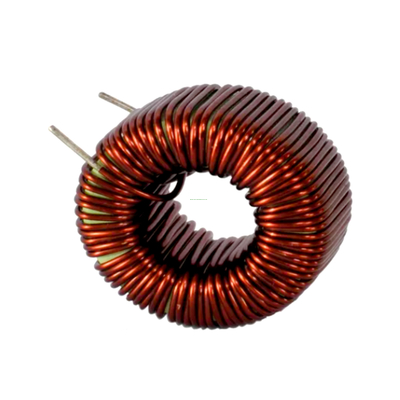

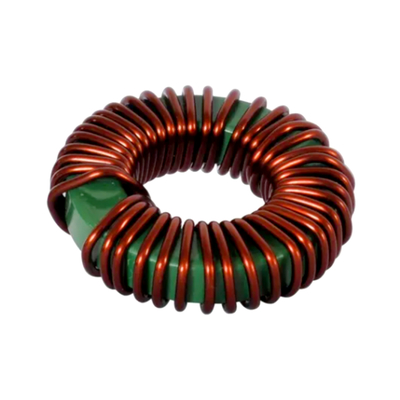

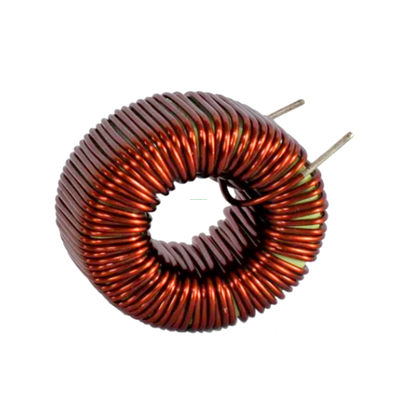

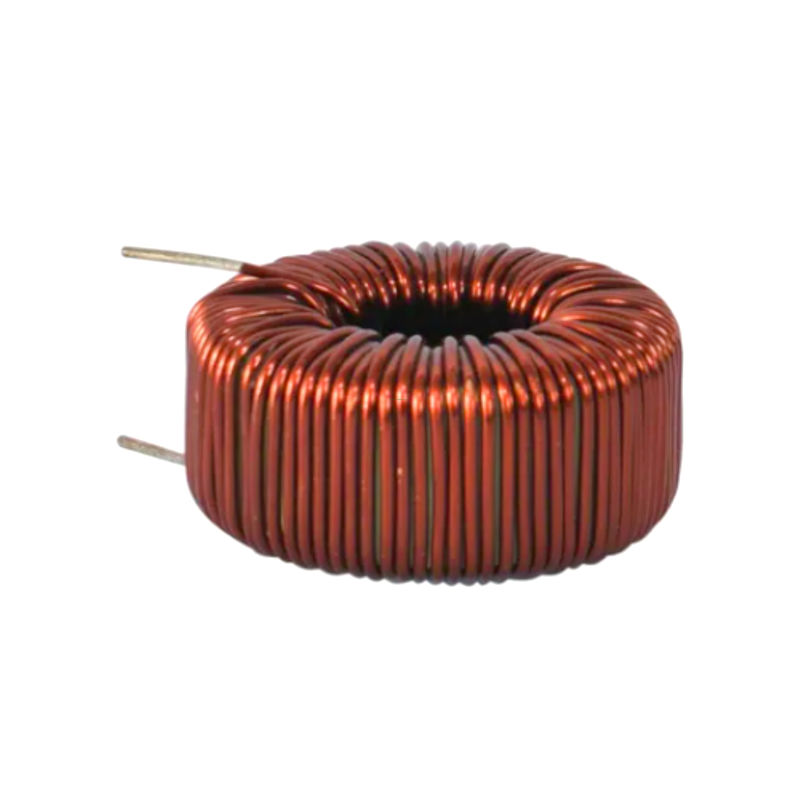

Customized 2929-386uh Differential Mode Choke Inductor

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-ACL2929-386uH

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.81-0.88
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-ACL2929-386uH

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

OEM/ODM

Inductor Value

Variable Inductor

Transport Package

Carton

Specification

RoHS/SGS/UL/ISO9001

Trademark

IKP-ELEC

Origin

Hefei, China

HS Code

85045000

Production Capacity

900, 000, 000 Pics/Year

Product Description

Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

Application:
1.Low Frequency AC Reactor
2.Solar Power System
3.Power Conditioning System
4.Wind Power System
5.Automatic Drive Machine
6.Induction Heater
7.Welding Machine
8.Paper Industries
9.RFI Suppression Choke
10. DC/DC converters
11.IP and OP devices

Material list:
1 Core: T14x9x5 TS10 TDG or EQU
2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
3 PCB: FR-4 1.5x9x5
4 Case
5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
