T6826-20uh Iron Powder Core Differential Mode Coil Inductor

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	High Frequency

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	031-0.35
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Copper Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

Ikp

Inductor Value

Variable Inductor

Transport Package

CTN

Trademark

IKP

Origin

Hefei, China

HS Code

8504500000

Production Capacity

50, 000, 000PCS/Year

Product Description

Key Specifications/Special Features:
1. High efficiency
2. High power
3. High current
4. Low power loss
5. Low temperature rise
6. High temperature grades are available
7. RoHS Directive-compliant
8. UL insulation systems are available
9. Customized designs are accepted
10. OEM orders are welcome
Reasons of our top-quality components help your business succeed:
1. 14 years of experience customizing and power transformers and inductors
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products

4. 20000m2 factory with 21 production lines and 200 employees

5. 6 million units annual capacity T6826-20uh Iron Powder Core Differential Mode Coil Inductor

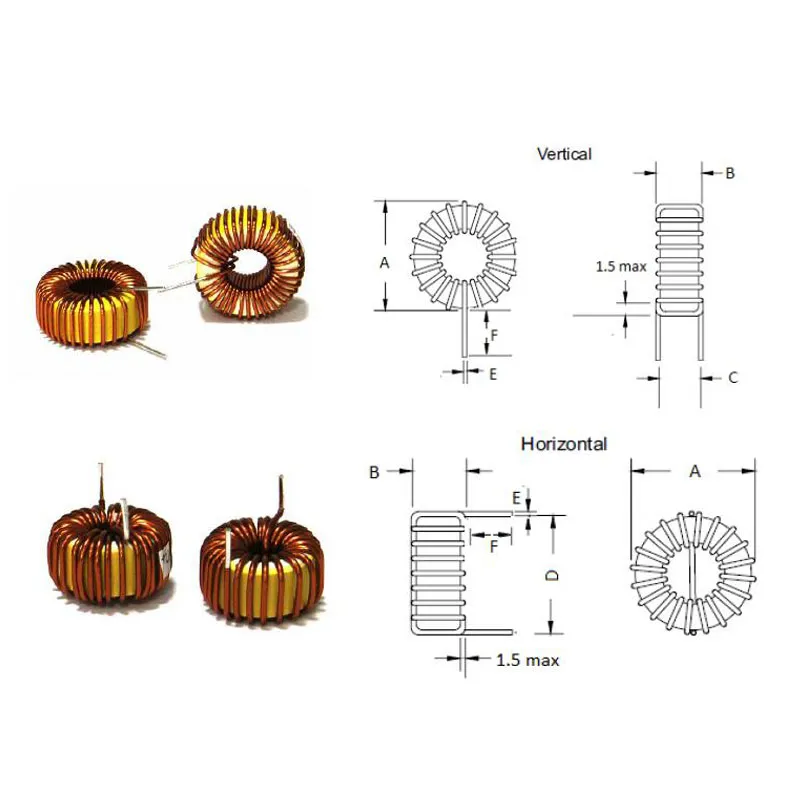

Part NO.	Inductance (μH) @1 KHz	I rated (A) (Max)	DCR(Ω) (Max)	Dimension (mm)
				A(Max)	B(Max)	C(Max)	D(Max)	E(Nom)	F(Max)
5026-600M	60.0	3.0	0.038	18.0	11.5	11.0	17.5	0.70	15
5026-680M	68.0	1.0	0.101	18.0	11.5	11.0	17.5	0.45	15
5026-101M	100.0	2.0	0.081	18.0	11.5	11.0	17.5	0.60	15
5026-221M	220.0	1.0	0.190	18.0	11.5	11.0	17.5	0.45	15
6026-220M	22.0	5.0	0.014	22.0	12.5	12.0	21.5	0.95	15
6026-290M	29.0	4.0	0.020	22.0	12.5	12.0	21.5	0.85	15
6026-350M	35.0	3.0	0.026	22.0	12.5	12.0	21.5	0.80	15
6026-580M	58.0	2.0	0.061	22.0	12.5	12.0	21.5	0.60	15
6026-900M	90.0	3.0	0.044	22.0	12.5	12.0	21.5	0.80	15
6026-111M	110.0	2.0	0.069	22.0	12.5	12.0	21.5	0.65	15
6026-131M	130.0	1.0	0.146	22.0	12.5	12.0	21.5	0.45	15
6026-471M	470.0	1.0	0.286	22.0	12.5	12.0	21.5	0.45	15
6826-250M	25.0	5.0	0.016	24.0	11.5	10.5	23.0	1.00	15
6826-320M	32.0	4.0	0.021	24.0	11.5	10.5	23.0	0.90	15
6826-430M	43.0	3.0	0.030	24.0	11.5	10.5	23.0	0.80	15
6826-650M	65.0	2.0	0.055	24.0	11.5	10.5	23.0	0.65	15
6826-111M	110.0	4.0	0.042	24.0	11.5	10.5	23.0	0.85	15
6826-131M	130.0	3.0	0.055	24.0	11.5	10.5	23.0	0.80	15
6826-151M	150.0	1.0	0.159	24.0	11.5	10.5	23.0	0.45	15
6826-231M	230.0	2.0	0.108	24.0	11.5	10.5	23.0	0.65	15
8026-500M	50.0	5.0	0.022	27.0	13.5	12.50	26.0	1.00	15
8026-600M	60.0	4.0	0.030	27.0	13.5	12.50	26.0	0.90	15
8026-750M	75.0	3.0	0.039	27.0	13.5	12.50	26.0	0.80	15
8026-820M	82.0	3.0	0.042	27.0	13.5	12.50	26.0	0.80	15
