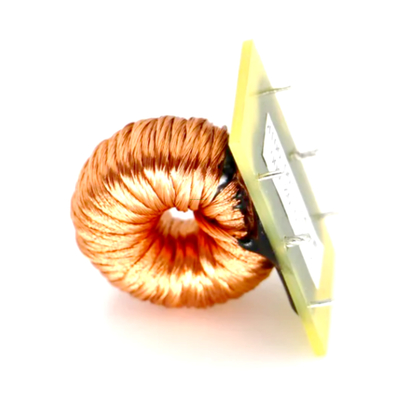

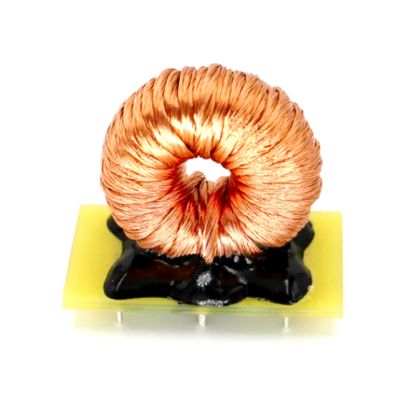

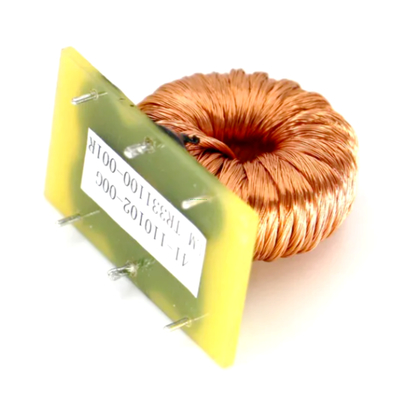

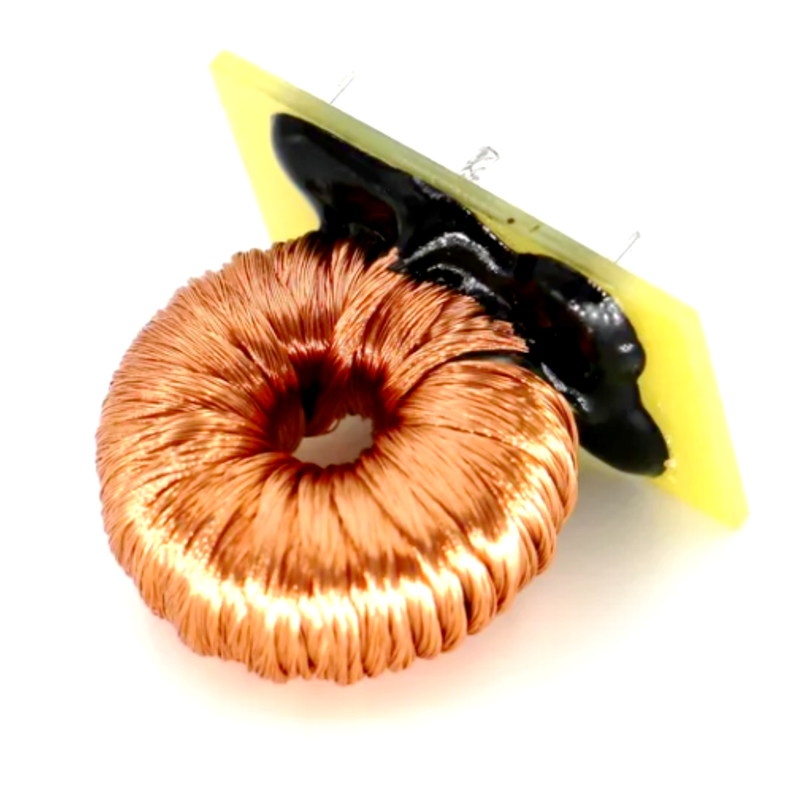

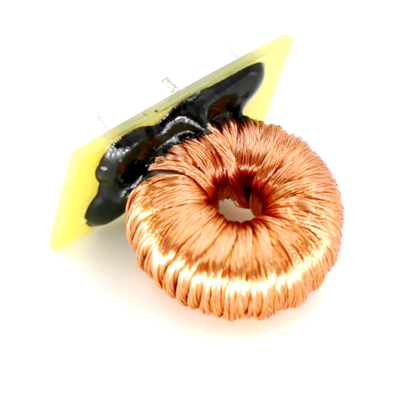

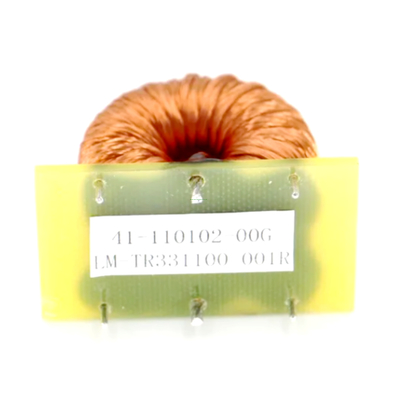

Name: Differential Mode Choke with Litz Wire
Brand: IKP Electronics Co., Ltd.
SKU: LM-TR331100-001R-2
Price: 0.49 USD
Availability: InStock

Home Products Differential Mode Choke Coils

Differential Mode Choke with Litz Wire

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	LM-TR331100-001R-2

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.49-0.58
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

LM-TR331100-001R-2

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Copper Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

Ikp

Inductor Value

Variable Inductor

Insulation Class

Operating Temperature

-40~125c

Transport Package

CTN

Specification

TR331100

Trademark

IKP

Origin

Hefei, China

HS Code

8504500000

Production Capacity

50, 000, 000PCS/Year

Product Description

Key Specifications/Special Features:
1. High efficiency
2. High power
3. High current
4. Low power loss
5. Low temperature rise
6. High temperature grades are available
7. RoHS Directive-compliant
8. UL insulation systems are available
9. Customized designs are accepted
10. OEM orders are welcome

Reasons of our top-quality components help your business succeed:
1. 14 years of experience customizing and power transformers and inductors
2. Your professional and reliable partner for various electronics
3. Over 1000 buyers value our products

4. 5000m2 factory with 21 production lines and 200 employees

5. 10 million units annual capacity
Differential Mode Choke with Litz Wire

Electrical Specifications:

Model	D (Max)	H (Max)	A (Max)	B (Max)	Rated Current	Inductance
2026	8.0mm	4.5mm	25.0mm	1.5mm	0.1-0.5A	5uH-27uH
3026	12.0mm	7.0mm	25.0mm	1.5mm	0.5-2.0A	10uH-14uH
5026	18.0mm	10.0mm	25.0mm	1.5mm	1.0-3.0A	20uH-68uH
6826	24.0mm	10.5mm	25.0mm	1.5mm	1.0-5.0A	25uH-500uH
8026	26.5mm	11.5mm	25.0mm	2.0mm	3.0-5.0A	50uH-960uH
10626	36.0mm	19.5mm	25.0mm	2.5mm	2.0-10.0A	30uH-850uH
13026	42.0mm	21.5mm	25.0mm	2.5mm	2.0-10.0A	30uH-950uH
Inductance tolerance:+5%;+10%;+20%
