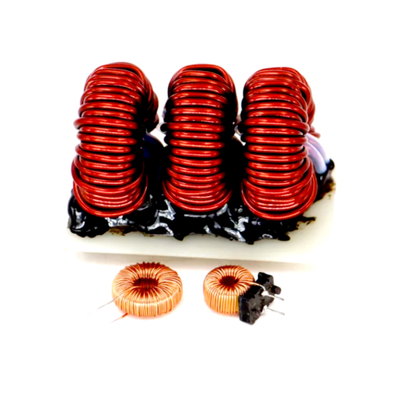

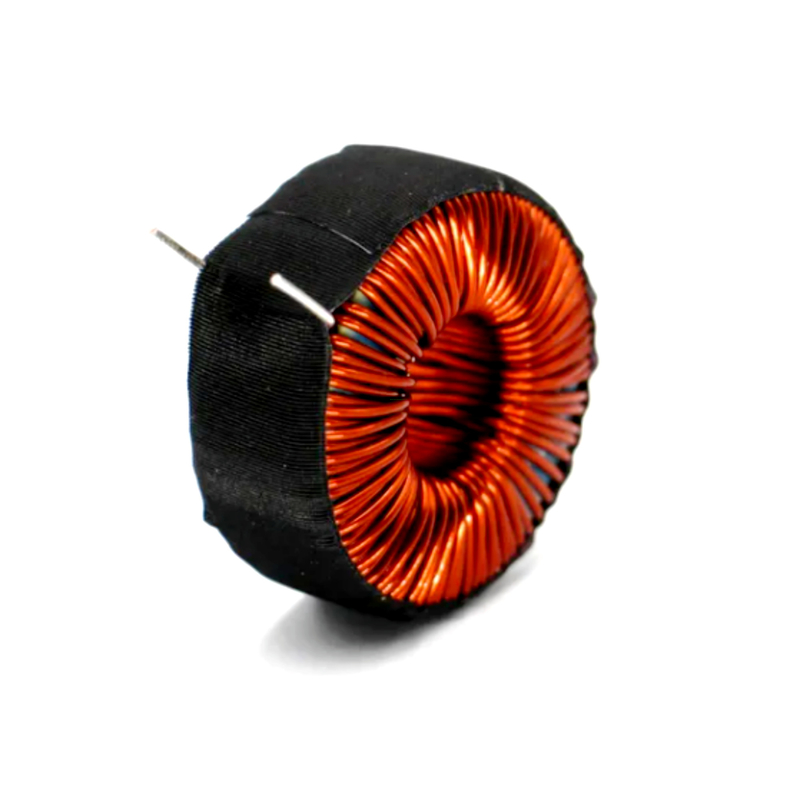

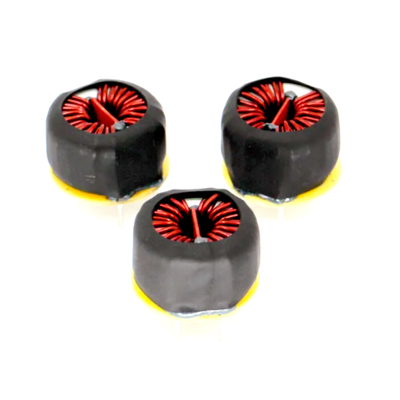

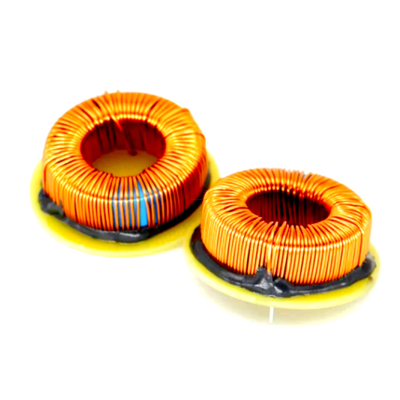

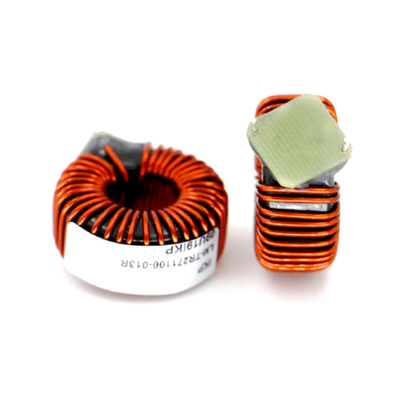

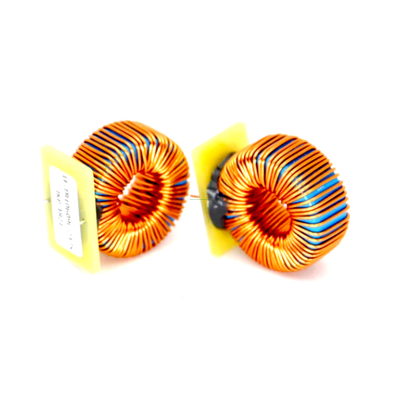

High saturation flux density
Less flux leakage and beat
Low radiation and core loss
Precise inductance
High current, horizontal or vertical mount
Operating temperature: -55 to 105°C
Housing and tubes
Customized specifications are accepted
Applications:
Switching power output and smoothing circuits
Used as choke coil for high frequency SMPs
Countermeasure against spike ripples
EMI/RFI filters
DC/DC converters
IP and OP devices
| IKP Part Number |
Inductance (MH) |
IDC (Amps) |
DCR (OHMS) MAX |
Inductance @10 KHZ NO DC ±15% |
| ACL-XXX-0.05-1 |
0.05 |
1 |
0.072 |
20 |
| ACL-XXX-0.20-1 |
0.20 |
1 |
0.08 |
57 |
| ACL-XXX-0.45-1 |
0.45 |
1 |
0.125 |
73 |
| ACL-XXX-0.80-1 |
0.80 |
1 |
0.145 |
111 |
| ACL-XXX-1.25-1 |
1.25 |
1 |
0.2 |
170 |
| ACL-XXX-1.80-1 |
1.80 |
1 |
0.235 |
247 |
| ACL-XXX-2.45-1 |
2.45 |
1 |
0.265 |
388 |
| ACL-XXX-3.20-1 |
3.20 |
1 |
0.37 |
564 |
| ACL-XXX-4.05-1 |
4.05 |
1 |
0.6 |
850 |
| ACL-XXX-5.00-1 |
5.00 |
1 |
0.7 |
1250 |
| ACL-XXX-0.05-3 |
0.05 |
3 |
0.031 |
22 |
| ACL-XXX-0.20-3 |
0.20 |
3 |
0.06 |
55 |
| ACL-XXX-0.45-3 |
0.45 |
3 |
0.075 |
83 |
| ACL-XXX-0.80-3 |
0.80 |
3 |
0.095 |
133 |
| ACL-XXX-1.25-3 |
1.25 |
3 |
0.118 |
172 |
| ACL-XXX-1.80-3 |
1.80 |
3 |
0.14 |
262 |
| ACL-XXX-2.45-3 |
2.45 |
3 |
0.18 |
429 |
| ACL-XXX-3.20-3 |
3.20 |
3 |
0.22 |
595 |
| ACL-XXX-4.05-3 |
4.05 |
3 |
0.32 |
850 |
| ACL-XXX-5.00-3 |
5.00 |
3 |
0.32 |
1500 |
| ACL-XXX-0.08-5 |
0.08 |
5 |
0.02 |
23 |
| ACL-XXX-0.30-5 |
0.30 |
5 |
0.04 |
60 |
| ACL-XXX-0.67-5 |
0.67 |
5 |
0.042 |
72 |
| ACL-XXX-1.20-5 |
1.20 |
5 |
0.058 |
110 |
| ACL-XXX-1.25-5 |
1.87 |
5 |
0.07 |
182 |
