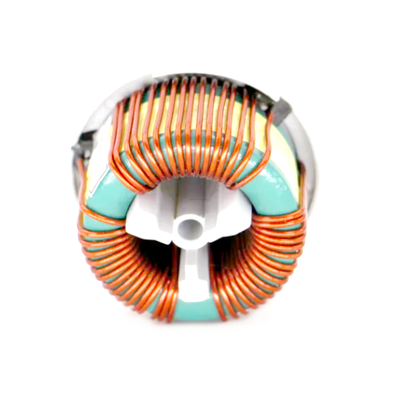

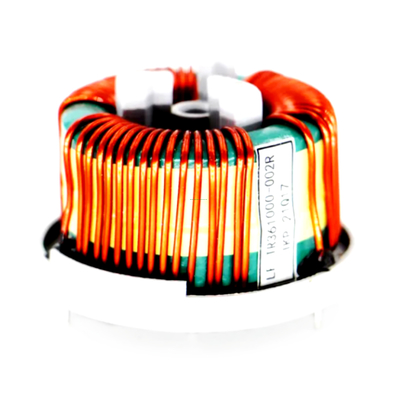

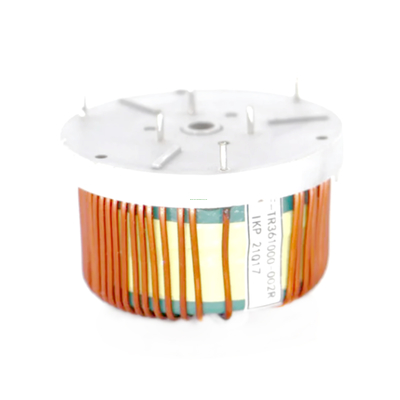

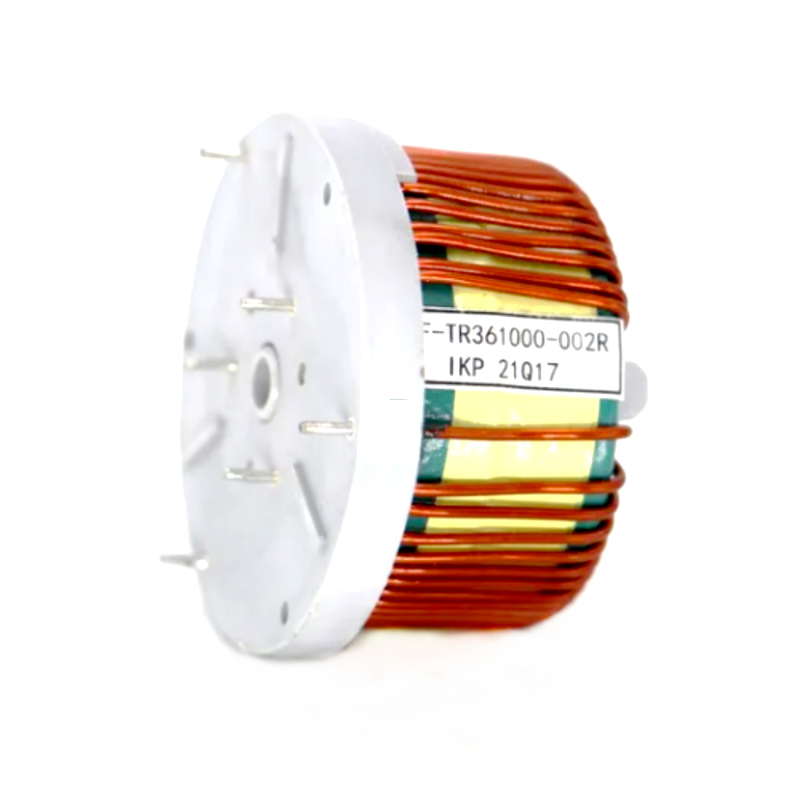

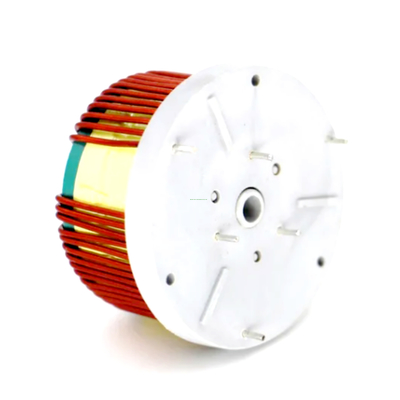

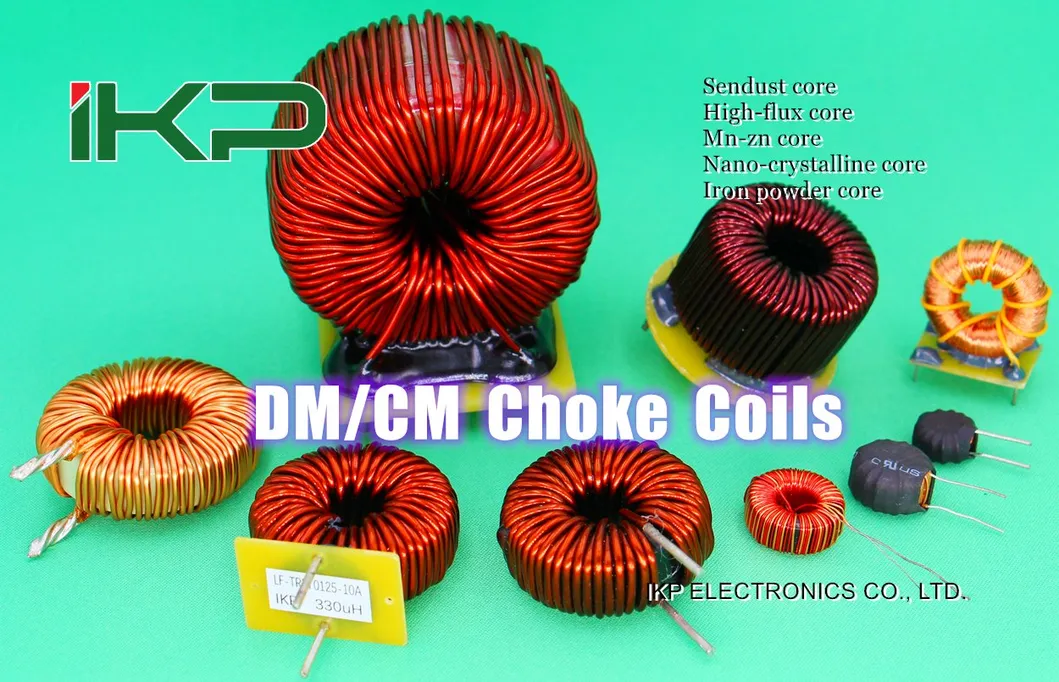

Name: Vertical Common Mode Choke Coil with Toroidal Mn-Zn Ferrite Core in Solar and Wind
Brand: IKP Electronics Co., Ltd.
SKU: LF-TR361000-002R-107
Price: 0.48 USD
Availability: InStock

Home Products Common Mode Chokes

Vertical Common Mode Choke Coil with Toroidal Mn-Zn Ferrite Core in Solar and Wind

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	LF-TR361000-002R-107

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.48-0.68
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

LF-TR361000-002R-107

Working Frequency

High Frequency

Structure of Winding

Multilayer Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

Ikp

Inductor Value

Fixed Inductor

Safety

Compliance with International Safety Regulations

Transport Package

Carton/Pallet

Specification

CMC

Trademark

IKP

Origin

China

HS Code

85043190

Production Capacity

100000PCS/Week

Product Description

Features & Application
▪ Separated windings for minimum interwinding capacitance
▪ Single layer windings for highest common mode impedance over the widest frequency range
▪ OR wound on nylon casing to protect windings
▪ Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
▪ All materials used are UL94-VO recognized
▪ Operating temperature: -40ºC to +105ºC. Suitable for 50Hz to 500 KHz
▪ Available in either vertical or horizontal mount
▪ Application includes power line filtering, EMI/REI for switch mode power supplies
▪ Available in vertical header mount for ease in PCB assembly
▪ Easy FR-4 board mounting Good vibration resistance
Vertical Common Mode Choke Coil with Toroidal Mn-Zn Ferrite Core in Solar and Wind

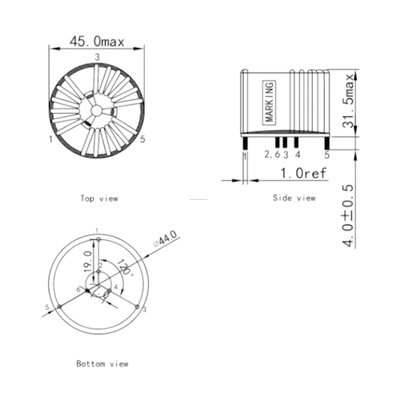

Electrical characteristics:

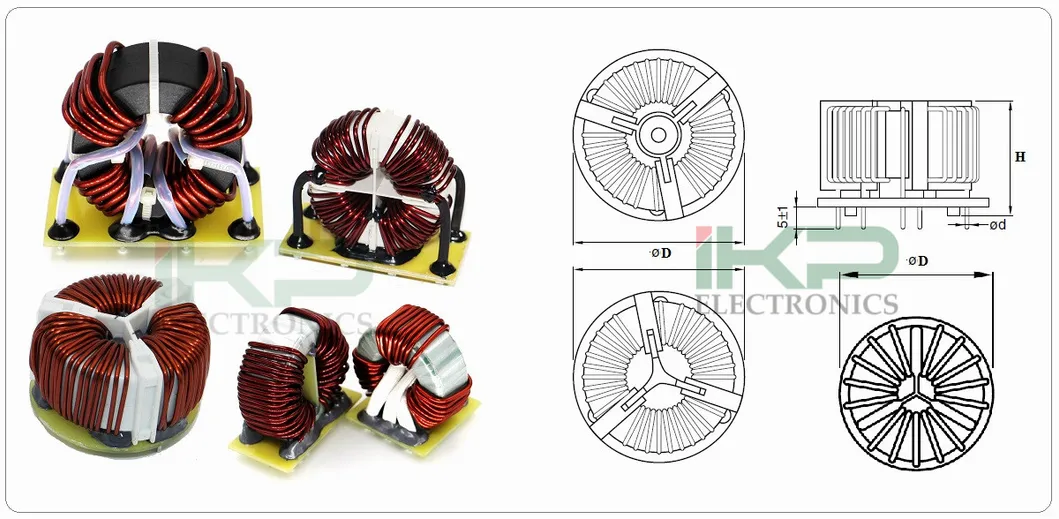

Header Mounted Toroidal Common Mode Line Chokes

Part NO. #TOD-L-I(A)	Inductance	Max. D.C. Resistance	Current Rating	Mounting	Dimension(mm) Coil size code A×B×C
#T310-280-13	0.280mH	2.9milli-ohm	13A	Horizontal	38×38×19
#T250-425-8	0.425mH	4.26milli-ohm	8A	Vertical	32×30×21
#T310-580-13	0.580mH	10milli-ohm	13A	Vertical	38×38×18
#T250-1000-8	1.000mH	0.02ohm	8A	Vertical	30×28×13
#T220-1000-3.2	1.000mH	15.3milli-ohm	3.2A	Vertical	26×26×17
#T220-1500-2	1.500mH	18.0milli-ohm	3.2A	Vertical	26×26×18
#T220-1800-5	1.800mH	0.05ohm	5A	Horizontal	26×28×18
#T220-2200-5	2.200mH	0.04ohm	5A	Vertical	26×26×19
#T250-3500-1.5	3.500mH	80.0milli-ohm	1.5A	Horizontal	30×32×16
#T250-3700-4	3.700mH	0.007ohm	4A	Vertical	30×32×17
#T310-7200-2.5	7.200mH	93.0milli-ohm	2.5A	Horizontal	38×40×18
#T310-11000-1.5	11.000mH	184.0milli-ohm	1.5A	Vertical	40×40×19

Low Profile, Small Size Common Mode Choke

Part NO. #TOD-L-I(A)	Inductance	Max. D.C. Resistance	DC Current Rating	Mounting	Dimension(mm) Coil size code A×B×C
#T220-1180-7.5	1.180mH	12.5milli-ohms	7.5Amps	Horizontal	26×28×20
#T220-65-23.5	65.000μH	0.9milli-ohms	23.5Amps	Vertical	26×26×18
#T220-100-19	100.000μH	1.3 milli-ohms	19Amps	Vertical	28×26×18
#T220-180-15	180.000μH	2.5milli-ohms	15Amps	Vertical	26×26×20
#T220-470-12	470.000μH	4.0milli-ohms	12Amps	Vertical	28×26×18
#T220-880-9	880.000μH	6.5milli-ohms	9Amps	Horizontal	28×30×20

High Current Common Mode Line Chokes

Part NO. #TOD-L-I(A)	Inductance	Max. D.C. Resistance	Current Rating	Mounting	Dimension(mm) Coil size code A×B×C
#T310-100-30	0.100mH	3.0milli-ohms	30Amps	Horizontal	38×40×18
#T310-100-30A	0.100mH	3.0milli-ohms	30Amps	Vertical	36×36×15
#T310-150-20	0.150mH	3.4milli-ohms	20Amops	Horizontal	36×36×16
#T310-150-20A	0.150mH	3.4milli-ohms	20Amops	Vertical	38×38×18
#T310-150-30	0.150mH	3.5milli-ohms	30Amps	Vertical	38×38×19
#T250-200-15	0.200mH	5milli-ohms	15Amps	Horizontal	30×28×15
#T310-200-18	0.200mH	5milli-ohms	18Amps	Horizontal	36×36×16
#T310-200-15A	0.200mH	5milli-ohms	15Amps	Vertical	38×38×18
#T250-200-18	0.200mH	5milli-ohms	18Amps	Vertical	30×28×15
#T250-300-15	0.300mH	7.3milli-ohms	15Amps	Horizontal	30×32×18
#T250-300-15A	0.300mH	7.3milli-ohms	15Amps	Vertical	30×28×17
#T250-600-9	0.600mH	10milli-ohms	9Amps	Horizontal	30×30×18
#T250-600-9	0.600mH	10milli-ohms	9Amps	Vertical	30×28×19

*We can design and manufacture customized part with specific requirement
