| Core Shape: | Toroidal | Type: | SMD For PCB |
|---|---|---|---|
| Custom: | Special Plastic Case |

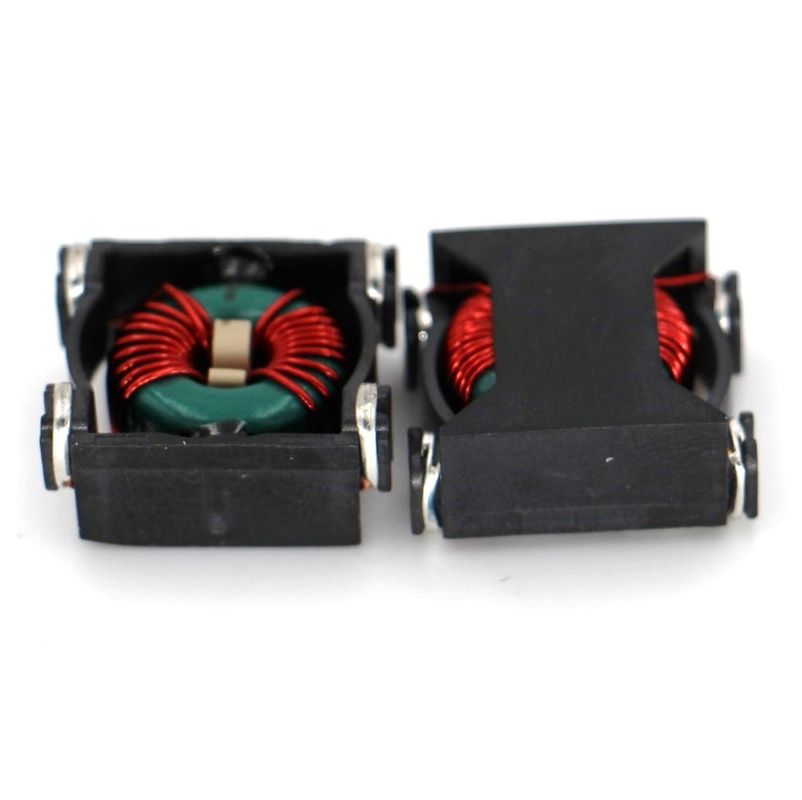

A large range of toroidal common mode chokes is available, all type of material are used and especially nanocrystalline material which allow a standard range from 0.3 A up to 50 A and far more on custom designed products. All mountings are available, vertical, horizontal, bare coil, and a new range of SMD power chokes.
Characteristics:
Application up to 760 VAC
High permeability MnZn Ferrite or nanocrystalline core material
Improved insulation through plastic case and winding spacer
Patented design
Specification according to EN 60938-2
Air and creepage distances ≥ 7 mm
Rated current up to 46 A
Attenuation up to 60 dB
Suppression frequency range: 1 kHz to 20 MHz depending from used core material
Operating temperature: -40 °C to +125 °C
Flammability corresponding to UL 94 V-0
Applications:
Power electronics
Power line input filter
Radio interference suppression in motors
Suppression for common mode noise
Frequency converter
Power supplies
Charging stations
| Part Number | Inductance (MH) | IDC (Amps) | DCR (OHMS) MAX | Inductance @10 KHZ NO DC ±15% |
| IKP-ACL-XXX-0.05-1 | 0.05 | 1 | 0.072 | 20 |
| IKP-ACL-XXX-0.20-1 | 0.20 | 1 | 0.08 | 57 |
| IKP-ACL-XXX-0.45-1 | 0.45 | 1 | 0.125 | 73 |
| IKP-ACL-XXX-0.80-1 | 0.80 | 1 | 0.145 | 111 |
| IKP-ACL-XXX-1.25-1 | 1.25 | 1 | 0.2 | 170 |
| IKP-ACL-XXX-1.80-1 | 1.80 | 1 | 0.235 | 247 |
| IKP-ACL-XXX-2.45-1 | 2.45 | 1 | 0.265 | 388 |
| IKP-ACL-XXX-3.20-1 | 3.20 | 1 | 0.37 | 564 |
| IKP-ACL-XXX-4.05-1 | 4.05 | 1 | 0.6 | 850 |
| IKP-ACL-XXX-5.00-1 | 5.00 | 1 | 0.7 | 1250 |
| IKP-ACL-XXX-0.05-3 | 0.05 | 3 | 0.031 | 22 |
| IKP-ACL-XXX-0.20-3 | 0.20 | 3 | 0.06 | 55 |
| IKP-ACL-XXX-0.45-3 | 0.45 | 3 | 0.075 | 83 |
| IKP-ACL-XXX-0.80-3 | 0.80 | 3 | 0.095 | 133 |
| IKP-ACL-XXX-1.25-3 | 1.25 | 3 | 0.118 | 172 |
| IKP-ACL-XXX-1.80-3 | 1.80 | 3 | 0.14 | 262 |
| IKP-ACL-XXX-2.45-3 | 2.45 | 3 | 0.18 | 429 |
| IKP-ACL-XXX-3.20-3 | 3.20 | 3 | 0.22 | 595 |
| IKP-ACL-XXX-4.05-3 | 4.05 | 3 | 0.32 | 850 |
| IKP-ACL-XXX-5.00-3 | 5.00 | 3 | 0.32 | 1500 |
| IKP-ACL-XXX-0.08-5 | 0.08 | 5 | 0.02 | 23 |
| IKP-ACL-XXX-0.30-5 | 0.30 | 5 | 0.04 | 60 |
| IKP-ACL-XXX-0.67-5 | 0.67 | 5 | 0.042 | 72 |
| IKP-ACL-XXX-1.20-5 | 1.20 | 5 | 0.058 | 110 |
| IKP-ACL-XXX-1.25-5 | 1.87 | 5 | 0.07 | 182 |
