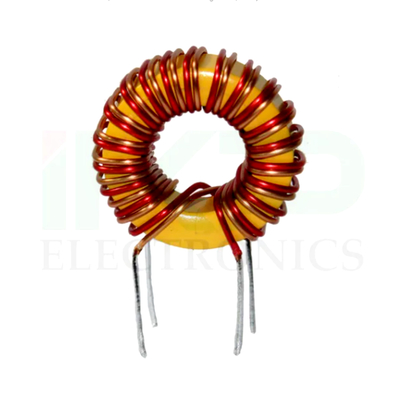

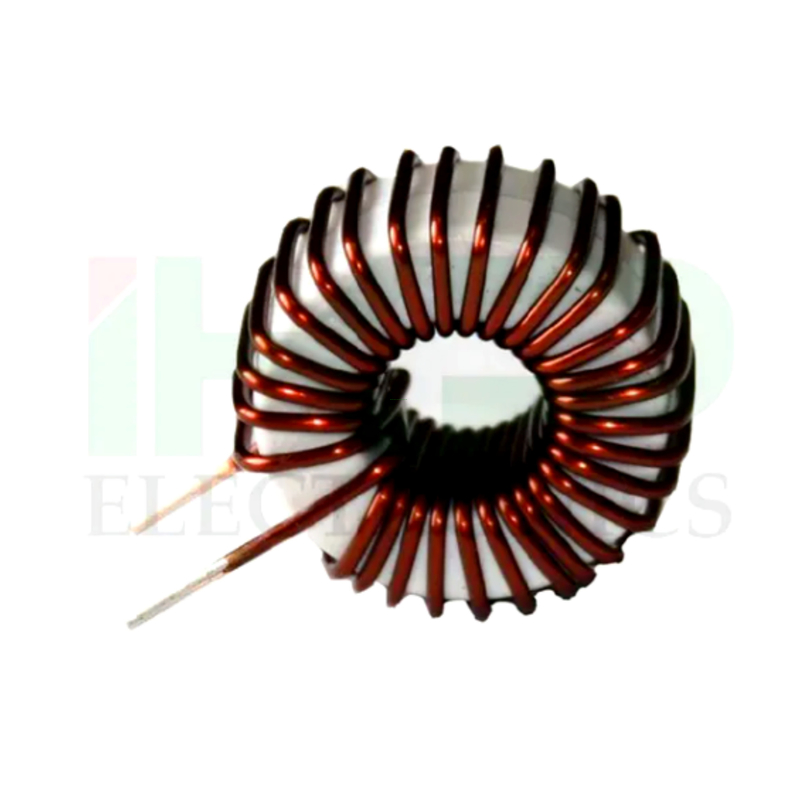

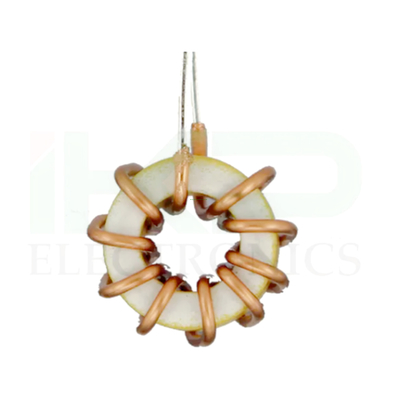

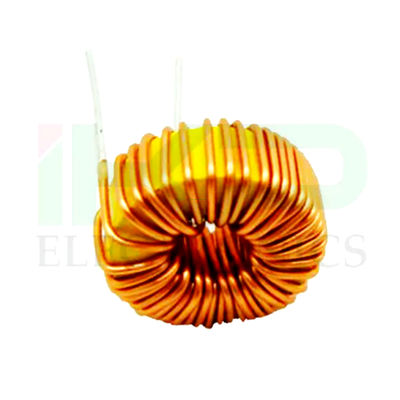

Ferrite Core Filter Common Mode Inductor

Ferrite Core Filter Common Mode Inductor

    • Ferrite Core Filter Common Mode Inductor
    • Ferrite Core Filter Common Mode Inductor
    • Ferrite Core Filter Common Mode Inductor
    • Ferrite Core Filter Common Mode Inductor
  • Ferrite Core Filter Common Mode Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL-058

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.06-0.08
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL-058
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Copper Coil
    Range of Application
    Choke
    Packaging Form
    Generic
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Transport Package
    Carton, Pallet
    Origin
    China
    HS Code
    8504500000
    Production Capacity
    5000000PCS/Year

    Product Description

    Ferrite Core Filter Common Mode Inductor

    Features
    1. Separated windings for minimum interwinding capacitance
    2. Single layer windings for highest common mode impedance over the widest frequency range
    3. Suitable for 50Hz to 500 KHz
    4. Spacer provides 1-3mm creepage distance for UL, CSA, IEC compliance
    5. All materials used are UL94-VO recognized
    6. Operating temperature: -55ºC to +105ºC
    7. Available in either vertical or horizontal mount
    8. Available in vertical header mount for ease in PCB assembly
    9. Easy FR-4 board mounting Good vibration resistance

    Application
    1. Low Frequency AC Reactor
    2. Solar Power System
    3. Power Conditioning System
    4. Wind Power System
    5. Automatic Drive Machine
    6. Induction Heater
    7. Welding Machine
    8. Paper Industries
    9. RFI Suppression Choke
    10. DC/DC converters
    11. IP and OP devices


    Physical and Electrical Performance Parameters
    Ferrite Core Filter Common Mode Inductor
    Part NO. Inductance(mH)
    @1 KHz
    IDC(A)
    (Max)
    DCR(mΩ)
    (Max)
    Mounting Dimension(mm)

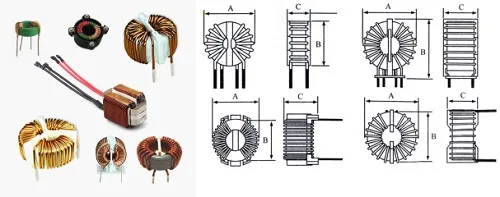

    Coil size A×B×C
    220-65-23.5 0.065 23.5 0.9 Vertical 26×26×18
    220--100-19 0.100 19.0 1.3 Vertical 28×26×18
    220-180-15 0.180 15.0 2.5 Vertical 28×26×20
    220-470-12 0.470 12.0 4.0 Vertical 28×26×18
    220-880-9 0.880 9.0 6.5 Horizontal 28×30×20
    220-1000-3.2 1.000 3.2 15.3 Vertical 26×26×17
    220-1180-7.5 1.180 7.5 12.5 Horizontal 26×28×20
    220-1500-2 1.500 2.0 18.0 Vertical 26×26×18
    220-1800-5 1.800 5.0 50.0 Horizontal 26×28×18
    220-2200-5 2.200 5.0 40.0 Vertical 26×26×19
    250-200-15 0.200 15.0 5.0 Horizontal 30×28×15
    250-200-18 0.200 18.0 5.0 Vertical 30×28×15
    250-300-15 0.300 15.0 7.3 Horizontal 30×32×18
    250-300-15A 0.300 15.0 7.3 Vertical 38×28×17
    250-425-8 0.425 8.0 4.26 Vertical 32×30×21
    250-600-9 0.600 9.0 10.0 Horizontal 30×30×18
    250-600-9A 0.600 9.0 10.0 Vertical 30×28×19
    250-1000-8 1.000 8.0 20.0 Vertical 30×28×13
    250-3500-1.5 3.500 1.5 80.0 Horizontal 30×32×16
    250-3700-4 3.700 4.0 70.0 Vertical 30×32×17


    Physical and Electrical Performance Parameters
    Part NO. Inductance(mH)
    @1 KHz
    IDC(A)
    (Max)
    DCR(mΩ)
    (Max)
    Mounting Dimension(mm)
    Coil size A×B×C
    310-100-30 0.100 30.0 3.0 Horizontal 38×40×18
    310-100-30A 0.100 30.0 3.0 Vertical 36×36×15
    310-150-20 0.150 20.0 3.4 Horizontal 36×36×16
    310-150-20A 0.150 20.0 3.4 Vertical 38×38×18
    310-150-30 0.150 30.0 3.5 Vertical 38×38×19
    310-200-15 0.200 15.0 5.0 Vertical 38×38×18
    310-200-18 0.200 18.0 5.0 Horizontal 38×38×19
    310-280-13 0.280 13.0 2.9 Vertical 28×26×18
    310-580-13 0.580 13.0 10.0 Vertical 38×38×18
    310-7200-2.5 7.200 2.5 93.0 Horizontal 38×40×18
    310-11000-1.5 11.000 1.5 184.0 Vertical 40×40×19
