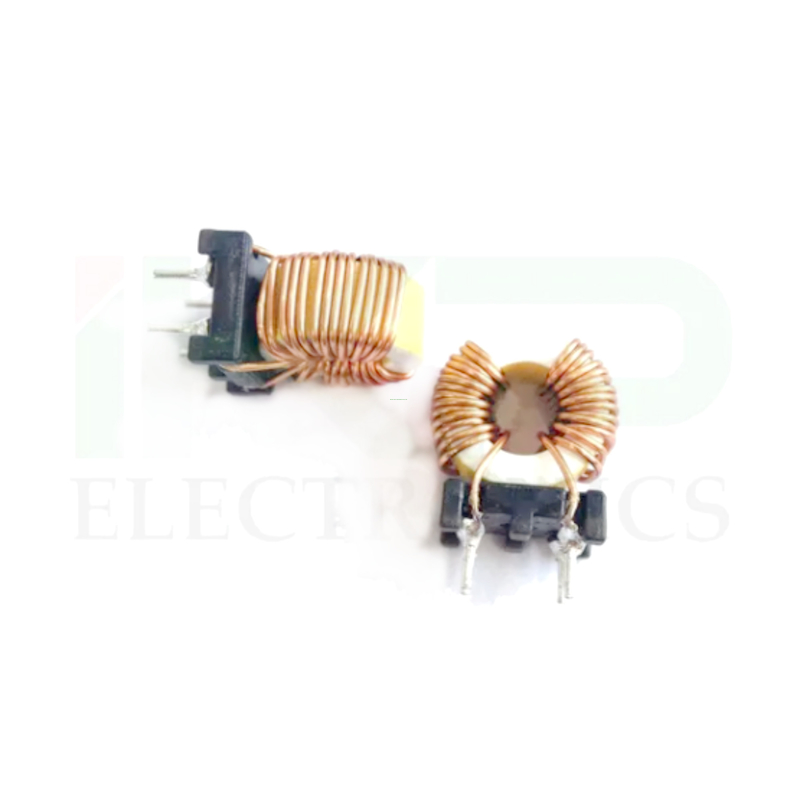

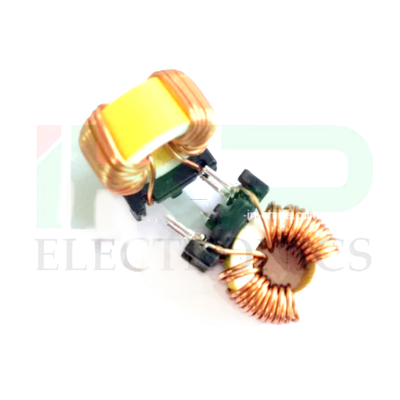

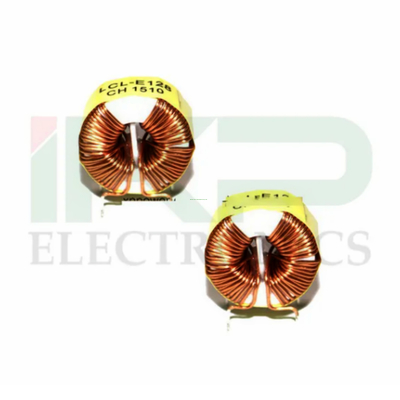

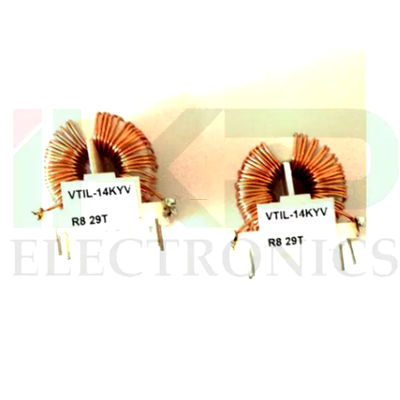

Ferrite Core Common Mode Choke Coil Power Inductor
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
IKP |
| Certification: |
CE/UL/REACH/ROHS |
| Model Number: |
IKP-CMC1511-2.35MH |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000 |
| Price: |
0.35-0.50 |
| Packaging Details: |
Carton |
| Delivery Time: |
10-15 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
100,000/week |
Contact Now
Detailed Product Description
Basic Info.
Model NO.
IKP-CMC1511-2.35MH
Working Frequency
High Frequency
Structure of Winding
Multilayer Coil
Nature of Operation
Choke Coil
Structure of Magnetizer
Ferrite Coil
Range of Application
High Frequency
Inductor Value
Variable Inductor
Transport Package
Carton/Tube
Specification
Rohs, ISO9001
Production Capacity
50, 000 PCS/Week
Product Description
Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s
Material list:
1 Core: T14x9x5 TS10 TDG or EQU
2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
3 PCB: FR-4 1.5x9x5
4 Case
5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
| Part Number |
Inductance (mH) @ 1KHz |
IDC(A)MAX. |
DCR()MAX. |
Wire Diameter (Φ) mm |
| CMC1508-0.625MH |
0.625 |
1 |
0.04 |
0.41 |
| CMC1508-0.1MH |
0.1 |
1 |
0.06 |
0.41 |
| CMC1508-0.225MH |
0.225 |
1 |
0.07 |
0.41 |
| CMC1508-0.4MH |
0.4 |
1 |
0.1 |
0.41 |
| CMC1508-0.625MH |
0.625 |
1 |
0.125 |
0.41 |
| CMC-1508-0.9MH |
0.9 |
2 |
0.03 |
0.51 |
| CMC1508-1.225MH |
1.225 |
2 |
0.04 |
0.51 |
| CMC1508-1.6MH |
1.6 |
2 |
0.06 |
0.51 |
| CMC1508-2.0MH |
2.0 |
2 |
0.075 |
0.51 |
| CMC1508-2.5MH |
2.5 |
3 |
0.02 |
0.58 |
| CMC1508-3.0MH |
3.0 |
3 |
0.03 |
0.58 |
| CMC1813-0.85MH |
0.85 |
2 |
0.05 |
0.58 |
| CMC1813-0.62MH |
0.62 |
2 |
0.075 |
0.58 |
| CMC1813-0.1MH |
0.1 |
2 |
0.085 |
0.58 |
| CMC1813-0.22MH |
0.22 |
2 |
0.11 |
0.58 |
| CMC1813-0.4MH |
0.4 |
2 |
0.2 |
0.58 |
| CMC1813-0.62MH |
0.625 |
5 |
0.035 |
0.58 |
| CMC3118-0.05MH |
0.055 |
5 |
0.04 |
0.76 |
| CMC3118-0.22MH |
0.22 |
4 |
0.046 |
0.76 |
| CMC3118-0.49MH |
0.495 |
4 |
0.06 |
0.76 |
| CMC3118-0.88MH |
0.88 |
2 |
0.2 |
0.58 |
| CMC3118-1.37MH |
1.375 |
4 |
0.13 |
0.76 |
| CMC3118-1.98MH |
1.98 |
5 |
0.072 |
0.91 |
