Special Custom Common Mode Inductor for New Energy

Special Custom Common Mode Inductor for New Energy

    • Special Custom Common Mode Inductor for New Energy
    • Special Custom Common Mode Inductor for New Energy
    • Special Custom Common Mode Inductor for New Energy
    • Special Custom Common Mode Inductor for New Energy
    • Special Custom Common Mode Inductor for New Energy
    • Special Custom Common Mode Inductor for New Energy
  • Special Custom Common Mode Inductor for New Energy

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: High Frequency

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.01-0.03
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Working Frequency
    High Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    Ikp
    Inductor Value
    Fixed Inductor
    Transport Package
    Carton
    Trademark
    IKP-ELEC
    Origin
    Hefei, China
    HS Code
    85045000
    Production Capacity
    500000000 Pics/Year

    Product Description

    Key Specifications/Special Features:
    1. High efficiency and High Permeability
    2. High power and Low Frequency Switching
    3. High current
    4. Low power loss
    5. Low temperature rise, Operating Temperature: -55 to 105°C,Max Working Temp: 130°C
    6. Lead wire protected by Teflon tube
    7. Withstand high voltage
    8. High temperature grades are available
    9. Double cores are available
    10. RoHS Compliant
    11. UL insulation systems are available
    12. Reliable
    13. Used in various power supplies
    14. Customized designs are accepted
    15. OEM orders are welcome
    Because of different shapes, sizes, a sense of volume specifications, our products according to customer specific requirements.


    Application:
    1.Low Frequency AC Reactor
    2.Solar Power System
    3.Power Conditioning System
    4.Wind Power System
    5.Automatic Drive Machine
    6.Induction Heater
    7.Welding Machine
    8.Paper Industries
    9.RFI Suppression Choke
    10. DC/DC converters
    11.IP and OP devices


    Special Custom Common Mode Inductor for New Energy
    Electrical Specifications:
    Part NO. Inductance Inductance Difference
    (max)
    DC resistance
    (max)
    Rated Current
    (max)

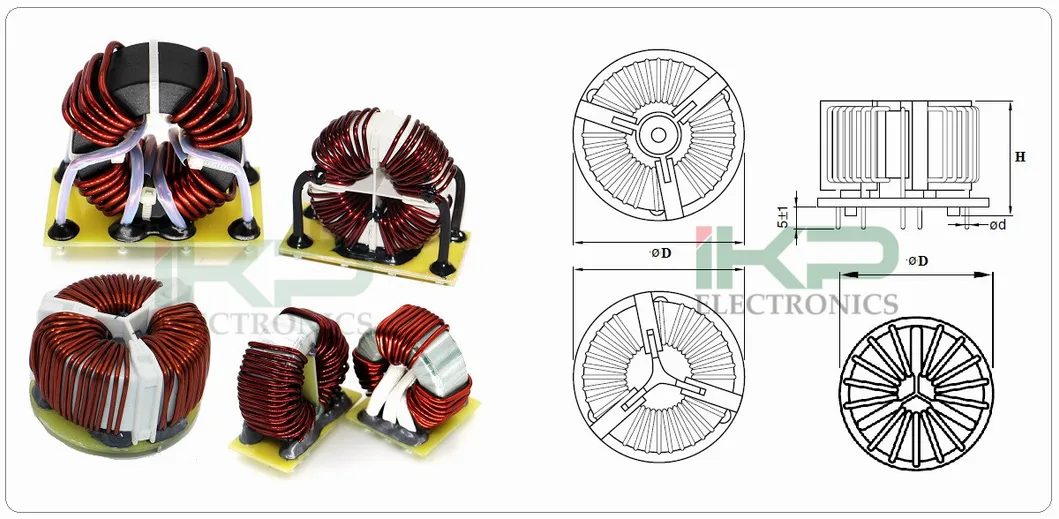

    Dimensions
    (ΦD)
    T6030-752-5 7.5mH 150μH 0.1Ω 5A 0.9mm
    T6030-162-10 1.6mH 100μH 0.02Ω 10A 1.3mm
    T6030-102-14 1.0mH 75μH 0.02Ω 14A 1.5mm
    T6035-201-30 0.2mH 10μH 30A 2.6mm
    T6035-501-25 0.5mH 15μH 25A 2.3mm
    T6035-102-20 1.0mH 20μH 20A 2.0mm
    T6035-162-15 1.6mH 30μH 12Ω 15A 1.8mm
    T3524-302-3 3mH 150μH 100Ω 3A 0.8mm
    T3524-502-3 5mH 200μH 130Ω 3A 0.8mm
    T3524-102-5 1mH 50μH 50Ω 5A 1.0mm
    T3524-202-5 2mH 150μH 60Ω 5A 1.0mm
    T4333-502-5 5mH 200μH 55Ω 5A 1.1mm
    T4333-302-7 3mH 250μH 35Ω 7A 1.3mm
    T4333-102-10 1mH 50μH 15Ω 10A 1.5mm
    T4333-501-15 0.5mH 30μH 15A 1.8mm
    T5228-102-5 1mH 50μH 45Ω 5A 1.0mm
    T5228-502-5 5mH 200μH 95Ω 5A 1.0mm
    T5228-302-8 3mH 150μH 40Ω 8A 1.2mm
    T5228-102-10 1mH 50μH 20Ω 10A 1.3mm
    T5228-202-10 2mH 80μH 25Ω 10A 1.5mm
    T6332-202-15 2mH 80μH 20Ω 15A 2.0mm
    T6332-152-18 1.5mH 50μH 15Ω 18A 2.1mm
    T6332-102-20 1mH 50μH 20A 2.3mm
    T6332-501-25 0.5mH 30μH 25A 2.5mm
    T6340-302-10 3mH 150μH 35Ω 10A 1.5mm
    T6340-202-15 2mH 120μH 25Ω 15A 1.8mm
    T6340-102-20 1mH 50μH 10Ω 20A 2.3mm
    T6340-102-25 1mH 50μH 25A 2.4mm
    ** We can design and manufacture customized part with specific requirement.
