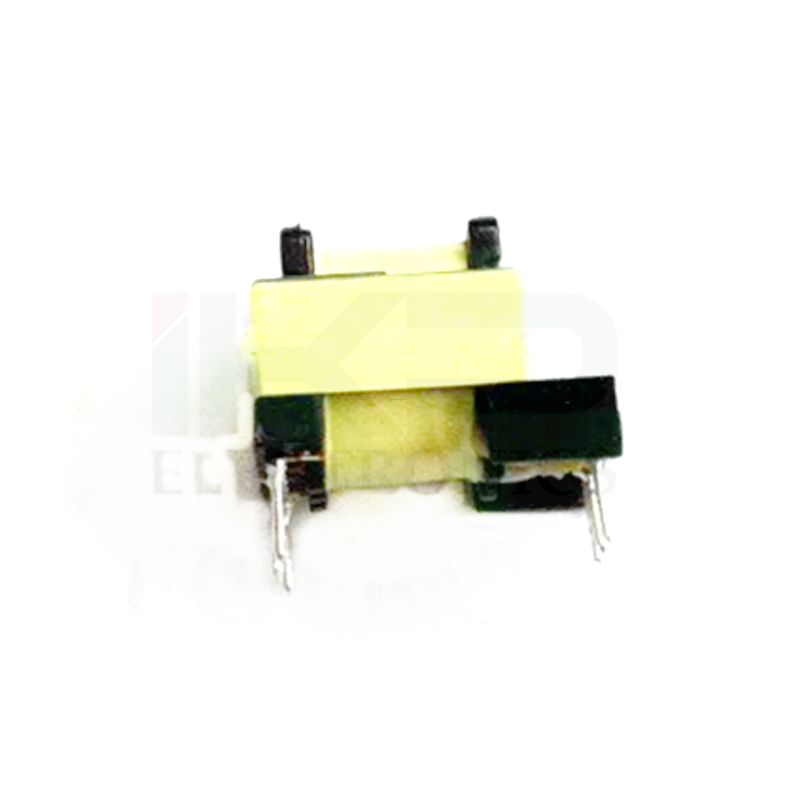

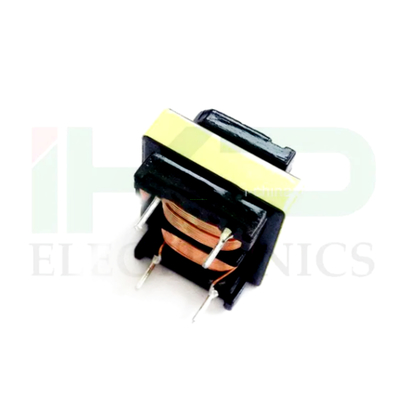

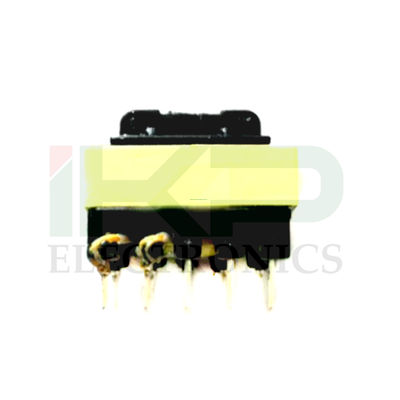

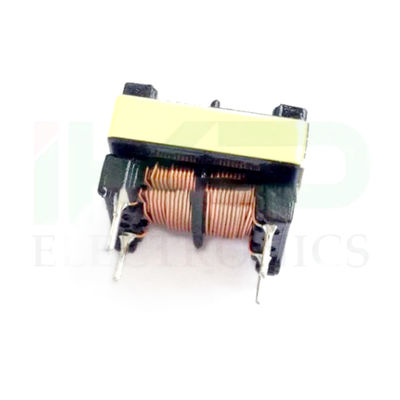

    Ee Bobbin Common Mode Choke Inductors with No Core Inside
    Features:
    1. Operating Frequency: 50~200KHz
    2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Specifications (Unit: mm):
    Type Shape Structure Dimension Power range
    A B C D E F
    EE10 Horizontal 12.0Max 10.8±0.5 12.4±0.5 2.5±0.2 2.5±0.3 10.5±0.5 4W Max
    EE13 15.0Max 13.5±0.5 13.85±0.5 2.5±0.2 2.5±0.3 10.2±0.5 6W Max
    EE16 17.5Max 15.0±0.5 13.6±0.5 3.5±0.2 3.0±0.3 11.0±0.5 10W Max
    EE19 22.0Max 112.4±0.5 17.4±0.5 4.0±0.2 3.0±0.3 12.5±0.5 15W Max
    EE22 24.0Max 13.0±0.5 15.7±0.5 4.0±0.2 4.8±0.3 13.0±0.5 20W Max
    EE25 26.5Max 17.3±0.5 19.4±0.5 4.0±0.2 5.0±0.3 14.0±0.5 25W Max
    EE30 32.0Max 22.0±0.5 32.0Max 4.0±0.2 5.0±0.3 25.0±0.5 145W Max
    EE40 34.0Max 28.6±0.5 35.0Max 4.0±0.2 5.0±0.3 25.8±0.5 350W Max
    EE42 42.0Max 39.1±0.5 45.0Max 4.0±0.2 5.0±0.3 37.8±0.5 450W Max
    EE55 58.0Max 56.0±0.5 58.0Max 4.0±0.2 5.0±0.3 40.0±0.5 500W Max
    Type Shape Structure Dimension Power range
    A B C D E F
    EE8.3 Vertical 10.0Max 9.5Max 8.0±0.5 2.5±0.2 3.3±0.3 5.8±0.5 3W Max
    EE10 12.0Max 13.0Max 10.4±0.5 2.5±0.2 2.5±0.3 5.8±0.5 4W Max
    EE13 15.0Max 14.0Max 12.2±0.5 2.5±0.2 2.5±0.3 5.8±0.5 6W Max
    EE16 17.5Max 15.0Max 14.4±0.5 3.5±0.2 3.8±0.3 5.8±0.5 10W Max
    EE19 22.0Max 19.0Max 15.9±0.5 4.0±0.2 4.0±0.3 5.8±0.5 15W Max
    EE22 24.0Max 20.0Max 16.5±0.5 4.0±0.2 4.0±0.3 5.8±0.5 20W Max
    EE25 26.5Max 22.0Max 17.2±0.5 4.0±0.2 5.0±0.3 5.8±0.5 25W Max
    EE28 30.0Max 22.0Max 21.8±0.5 4.0±0.2 5.0±0.3 5.8±0.5 50W Max
    EE30 32.0Max 30.0Max 28.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 145W Max
    EE35 37.0Max 30.0Max 25.6±0.5 4.0±0.2 5.0±0.3 5.8±0.5 350W Max
    EE40 42.0Max 33.0Max 27.9±0.5 4.0±0.2 5.0±0.3 5.8±0.5 450W Max
    EE42 46.5Max 43.0Max 37.4±0.5 4.0±0.2 5.0±0.3 5.8±0.5 500W Max
    EE55 57.0Max 58.0Max 42.0±0.5 4.0±0.2 5.0±0.3 5.8±0.5 650W Max
    Note: The above are common skeleton styles; we accept customer requirements ODM or OEM. Welcome your design drawings or samples.

    Electrical performance:
    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 80 W
    3. Operating temperature:-40 ºCto +125 ºC
    4. Storage temperature:-25 ºCto +85 ºC
    Applications:
    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

    Kindly Reminder:
    1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
    2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
    3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
    5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
    6. Contact us now for more details:
