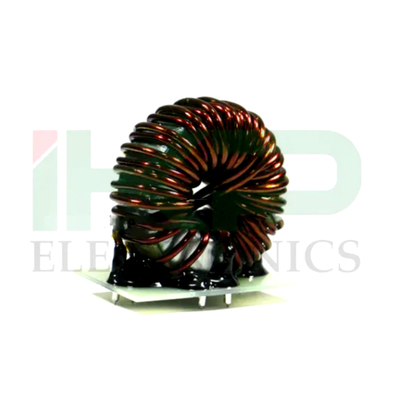

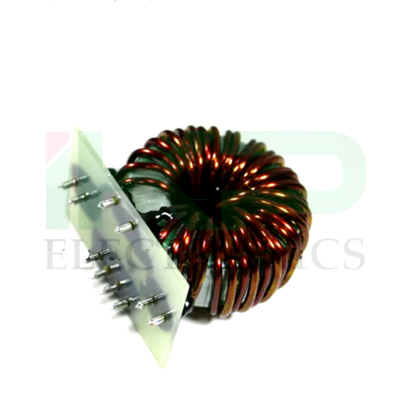

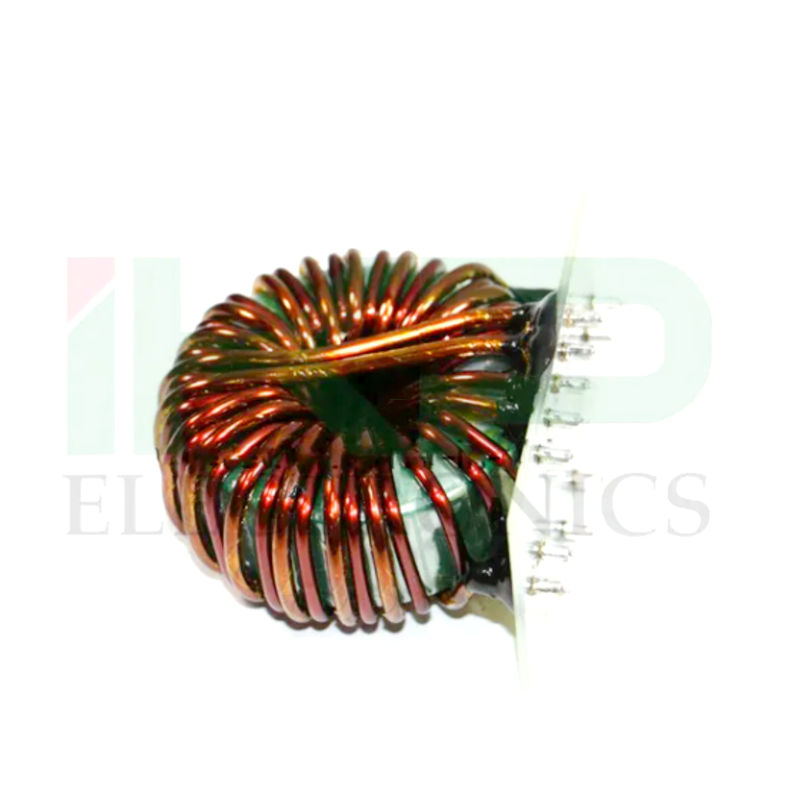

Features:
1. Manufactured by iron-based amorphous material;
2. High saturation magnetic induction;
3. High magnetic permeability,low coercivity,low loss;
4. Open air gap,excellent constant inductance and anti-DC and bias magnetic field ability.
Application:
High current output filter inductor,Air conditioning power supply.

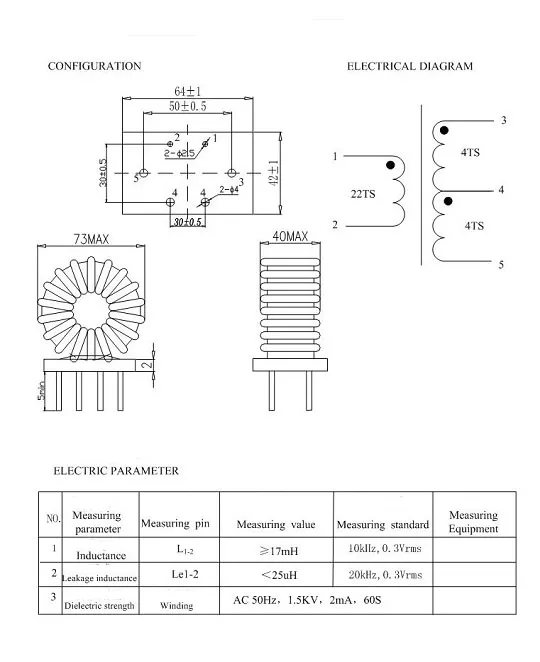

Specifications:
| Part Number |
Inductance (MH) |
IDC (Amps) |
DCR (OHMS) MAX |
Inductance @10 KHZ NO DC ±15% |
| IKP-ACL-XXX-0.05-1 |
0.05 |
1 |
0.072 |
20 |
| IKP-ACL-XXX-0.20-1 |
0.20 |
1 |
0.08 |
57 |
| IKP-ACL-XXX-0.45-1 |
0.45 |
1 |
0.125 |
73 |
| IKP-ACL-XXX-0.80-1 |
0.80 |
1 |
0.145 |
111 |
| IKP-ACL-XXX-1.25-1 |
1.25 |
1 |
0.2 |
170 |
| IKP-ACL-XXX-1.80-1 |
1.80 |
1 |
0.235 |
247 |
| IKP-ACL-XXX-2.45-1 |
2.45 |
1 |
0.265 |
388 |
| IKP-ACL-XXX-3.20-1 |
3.20 |
1 |
0.37 |
564 |
| IKP-ACL-XXX-4.05-1 |
4.05 |
1 |
0.6 |
850 |
| IKP-ACL-XXX-5.00-1 |
5.00 |
1 |
0.7 |
1250 |
| IKP-ACL-XXX-0.05-3 |
0.05 |
3 |
0.031 |
22 |
| IKP-ACL-XXX-0.20-3 |
0.20 |
3 |
0.06 |
55 |
| IKP-ACL-XXX-0.45-3 |
0.45 |
3 |
0.075 |
83 |
| IKP-ACL-XXX-0.80-3 |
0.80 |
3 |
0.095 |
133 |
| IKP-ACL-XXX-1.25-3 |
1.25 |
3 |
0.118 |
172 |
| IKP-ACL-XXX-1.80-3 |
1.80 |
3 |
0.14 |
262 |
| IKP-ACL-XXX-2.45-3 |
2.45 |
3 |
0.18 |
429 |
| IKP-ACL-XXX-3.20-3 |
3.20 |
3 |
0.22 |
595 |
| IKP-ACL-XXX-4.05-3 |
4.05 |
3 |
0.32 |
850 |
| IKP-ACL-XXX-5.00-3 |
5.00 |
3 |
0.32 |
1500 |
| IKP-ACL-XXX-0.08-5 |
0.08 |
5 |
0.02 |
23 |
| IKP-ACL-XXX-0.30-5 |
0.30 |
5 |
0.04 |
60 |
| IKP-ACL-XXX-0.67-5 |
0.67 |
5 |
0.042 |
72 |
| IKP-ACL-XXX-1.20-5 |
1.20 |
5 |
0.058 |
110 |
| IKP-ACL-XXX-1.25-5 |
1.87 |
5 |
0.07 |
182 |
Customized designs and sizes with specific requirements are available.
