China Single Ikp Common Mode Choke Coil for Solar Inverter
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
IKP |
| Certification: |
CE/UL/REACH/ROHS |
| Model Number: |
LM781600-001R |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000 |
| Price: |
17.11-17.88 |
| Packaging Details: |
Carton |
| Delivery Time: |
10-15 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
100,000/week |
Contact Now
Detailed Product Description
Basic Info.
Working Frequency
Low Frequency
Structure of Winding
Single Coil
Nature of Operation
Choke Coil
Structure of Magnetizer
Ferrite Coil
Range of Application
Choke
Packaging Form
Epoxy Resin Inductance
Inductor Value
Variable Inductor
Production Capacity
5000pieces/Day
Product Description
Features:
1. Organic silicone potting, soft material, good shock absorption and protection effect
2. The physical and chemical properties are stable, high temperature and low temperature resistance, can work in the range of -50 ~ 200 degrees
3. Excellent electrical performance and insulation ability, long service life
4. The soft potting compound is easy to take out, and the components can be repaired or replaced quickly

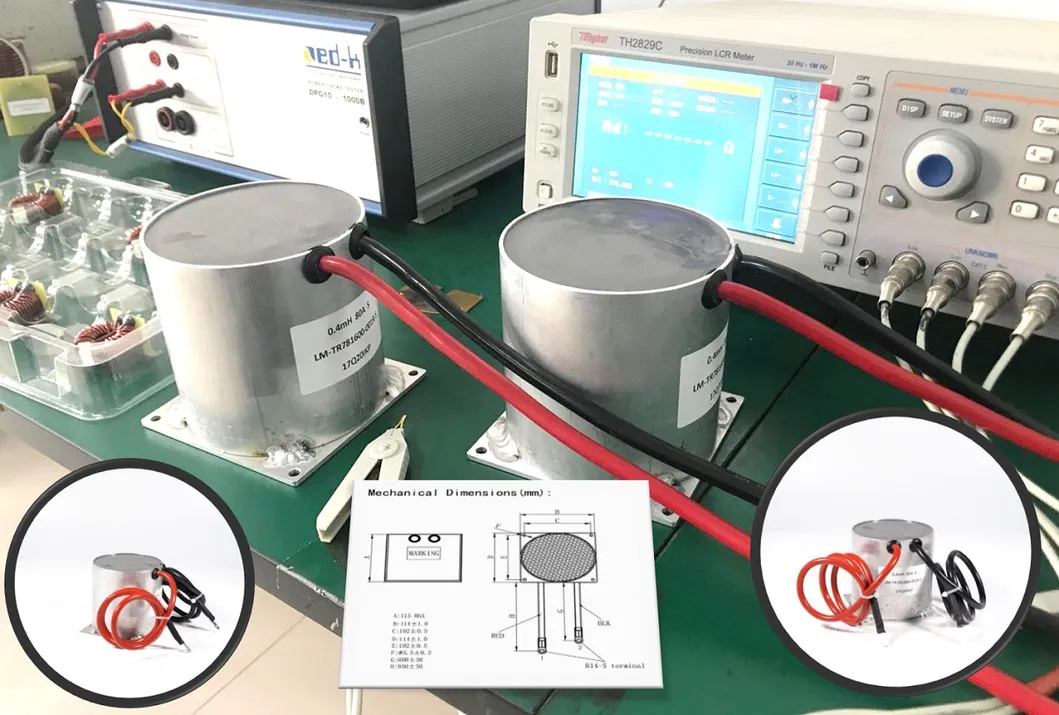

Product Details:
Brand: IKP
P.N: LM781600-001R

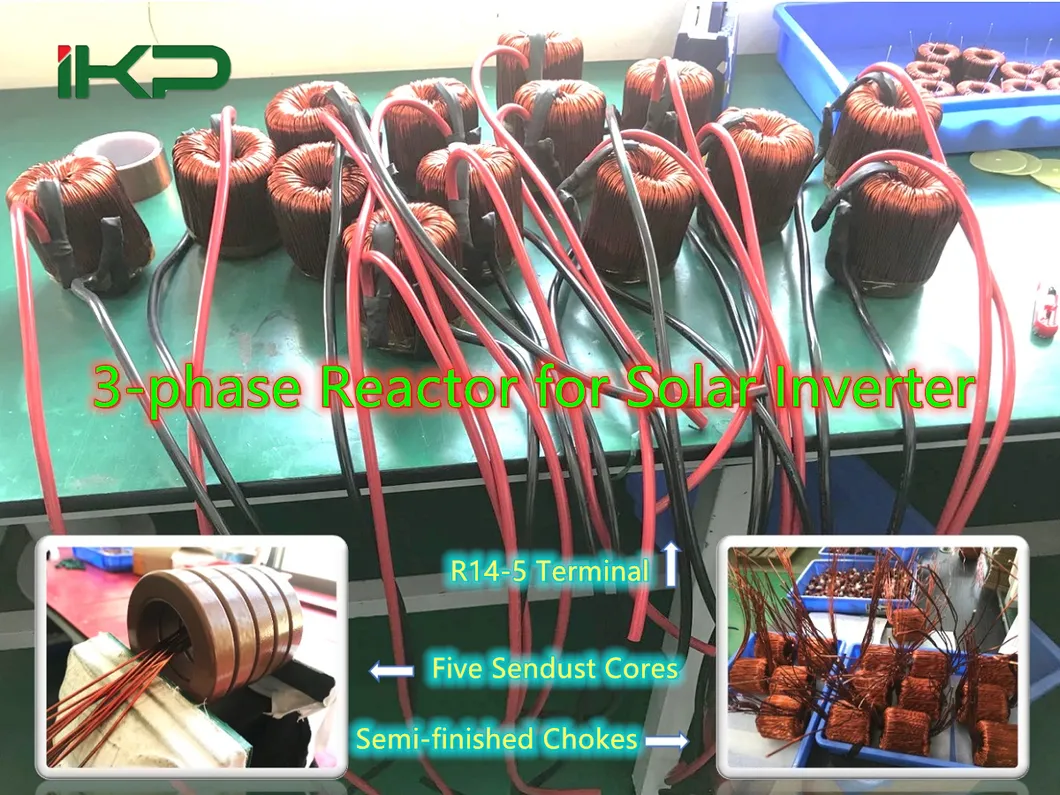

Core: Sendust core*5
Inductance: 0.4mH
Rated current: 80A
Copper wire: Φ1.5mm*14
Winding: 1 start, 2 finish
Insulation system: Class B 130°C
Storage temperature: -40°C ~80°C
Operation temperature: -40°C ~130°C
OCL: pins(1-2)=0.4mH±10% @1kHz, 0.1v
DCR: pins(1-2)=15.0mΩ MAX
Hipot: WDG to CASE 1.5kVac 60Hz 60Seconds 3mA MAX, No flashover
Layer insulation: 1.0kWac no flashover
Electrical and mechanical specifications 100% tested
RoHS compliant compatible
Application:
Solar inverter, Wind inverter, PFC filter, Choke coils, EV inverter, ABS system for car, car generators, inverter air conditioners, etc.
Contact us today for more information.
