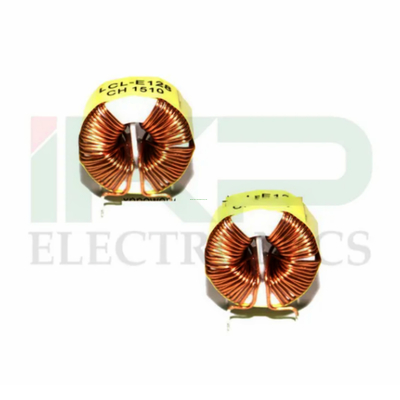

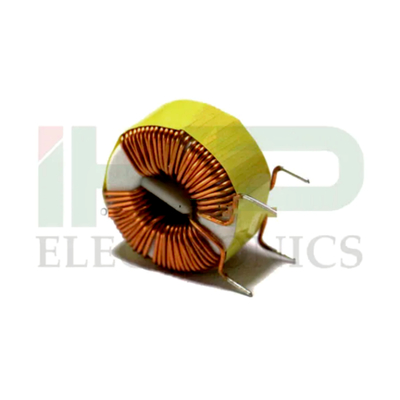

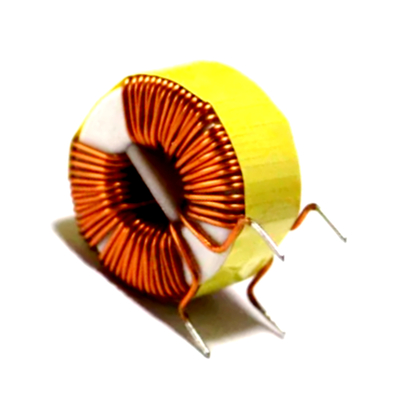

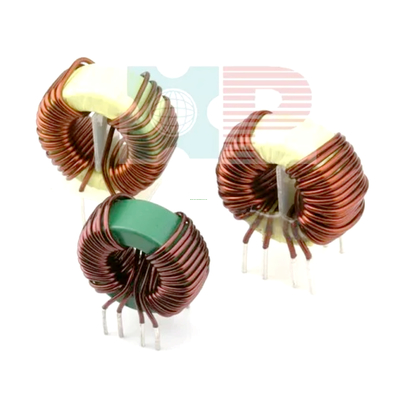

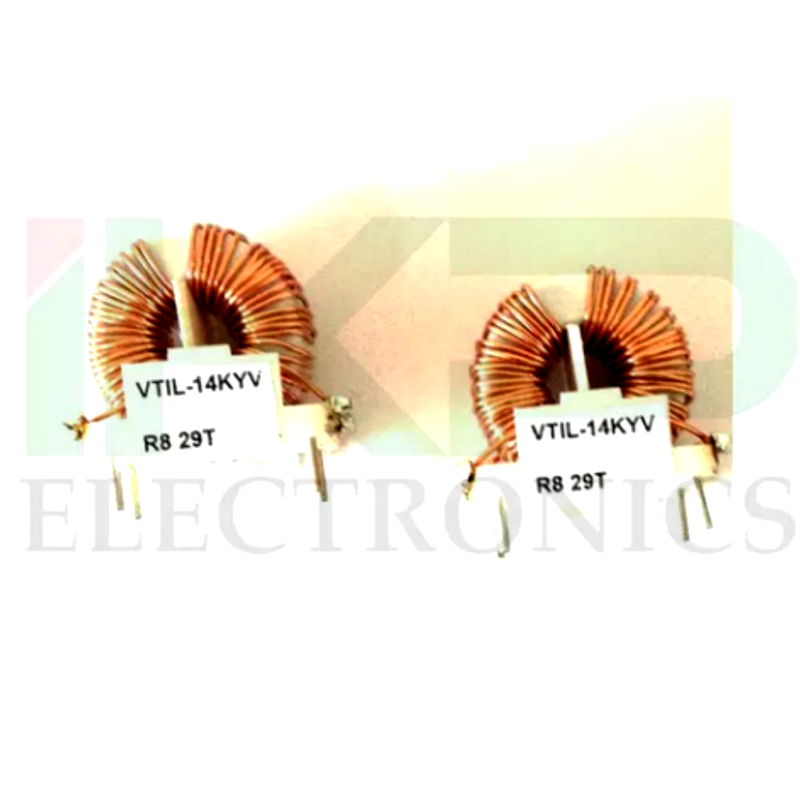

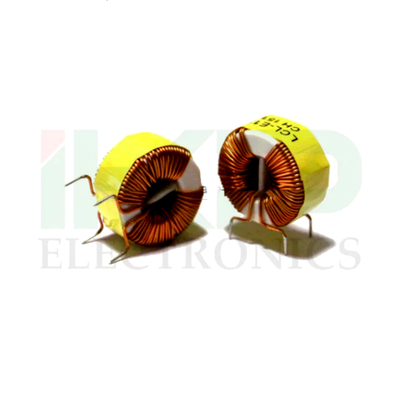

Power Common Mode Choke Inductor (CSC core)

Power Common Mode Choke Inductor (CSC core)

    • Power Common Mode Choke Inductor (CSC core)
    • Power Common Mode Choke Inductor (CSC core)
    • Power Common Mode Choke Inductor (CSC core)
    • Power Common Mode Choke Inductor (CSC core)
    • Power Common Mode Choke Inductor (CSC core)
    • Power Common Mode Choke Inductor (CSC core)
  • Power Common Mode Choke Inductor (CSC core)

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL1516-1.8M

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.40-0.50
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL1516-1.8MH
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Nanocrystaline
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Nanocrystaline
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP ELEC
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description


    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

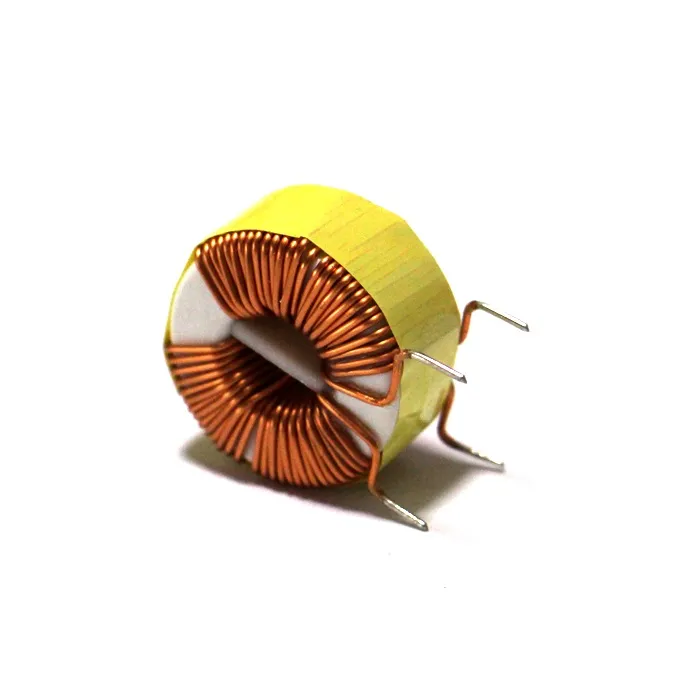

    Power Common Mode Choke Inductor (CSC core)

    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
    Part Number L@0Amps D.C.
    (MH)±20%
    MaxRDC.() Suggested Rated
    Current (Amps)
    ACL2929-0.2MH 0.20 .005 5.5
    ACL2929-0.8MH 0.80 .006 5.5
    ACL2929-1.8MH 1.80
    2.45
    .008 5.5
    ACL2929-3.2MH 3.20 .010 5.5
    ACL2929-5.0MH 5.00 .012 5.0
    ACL2929-7.2MH 7.20 .014 5.0
    ACL2929-9.8MH 9.80 .016 5.0
    ACL2929-12.8MH 12.80 .020 5.0
    ACL2929-16.2MH 16.20 .024 5.0
    ACL2929-20.0MH 20.00 .028 5.0
    ACL2929-24.2MH 24.20 .032 5.0
    ACL2929-28.8MH 28.80 .034 5.0
    ACL2929-33.8MH 33.80 .038 5.0
    ACL2929-39.2MH 39.20 .046 5.0
    ACL2929-45.0MH 45.00 .056 4.5
    ACL2929-51.2MH 51.20 .062 4.5
    ACL2929-57.8MH 57.80 .090 3.5
    ACL2929-64.8MH 64.80 .100 3.5
    ACL2929-57.0MH 57.00 .120 3.5
    ACL2929-80.0MH 80.00 .180 2.0

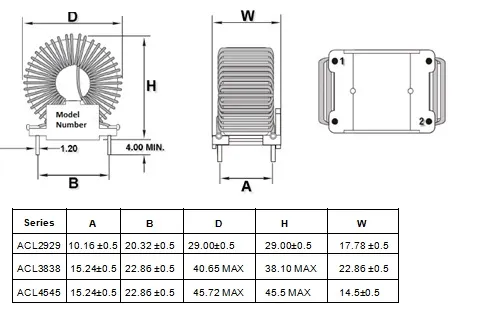

    Part Number
    L@0Amps
    D.C.(µH)±20%
    Max RDC.() Suggested Rated
    Current (Amps)
    ACL-3838-0.095MH 1.2 .004 6.0
    ACL-3838-0.38MH 2.0 .005 5.5
    ACL-3838-0.855MH 3.3 .006 5.5
    ACL-3838-1.52MH 4.7 .007 5.5
    ACL-3838-2.375MH 6.8 .008 5.5
    ACL-3838-3.420MH 8.2 .010 5.5
    ACL-3838-4.655MH 10 .012 5.5
    ACL-3838-6.080MH 12 .013 5.0
    ACL-3838-7.695MH 15 .014 5.0
    ACL-3838-9.500MH 18 .016 5.0
    ACL-3838-11.495MH 22 .016 5.0
    ACL-3838-13.680MH 27 .018 5.0
    ACL-3838-16.055MH 33 .020 5.0
    ACL-3838-16.055MH 39 .021 5.0
    ACL-3838-18.620MH 47 .023 5.0
    ACL-3838-21.375MH 56 .025 5.0
    ACL-3838-24.320MH 68 .030 5.0
    ACL-3838-27.455MH 82 .032 5.0
    ACL-3838-30.780MH 100 .034 5.0
    ACL-3838-34.295MH 120 .037 5.0
    ACL-3838-38.000MH 150 .043 5.0
    ACL-3838-45.980MH 180 .048 5.0

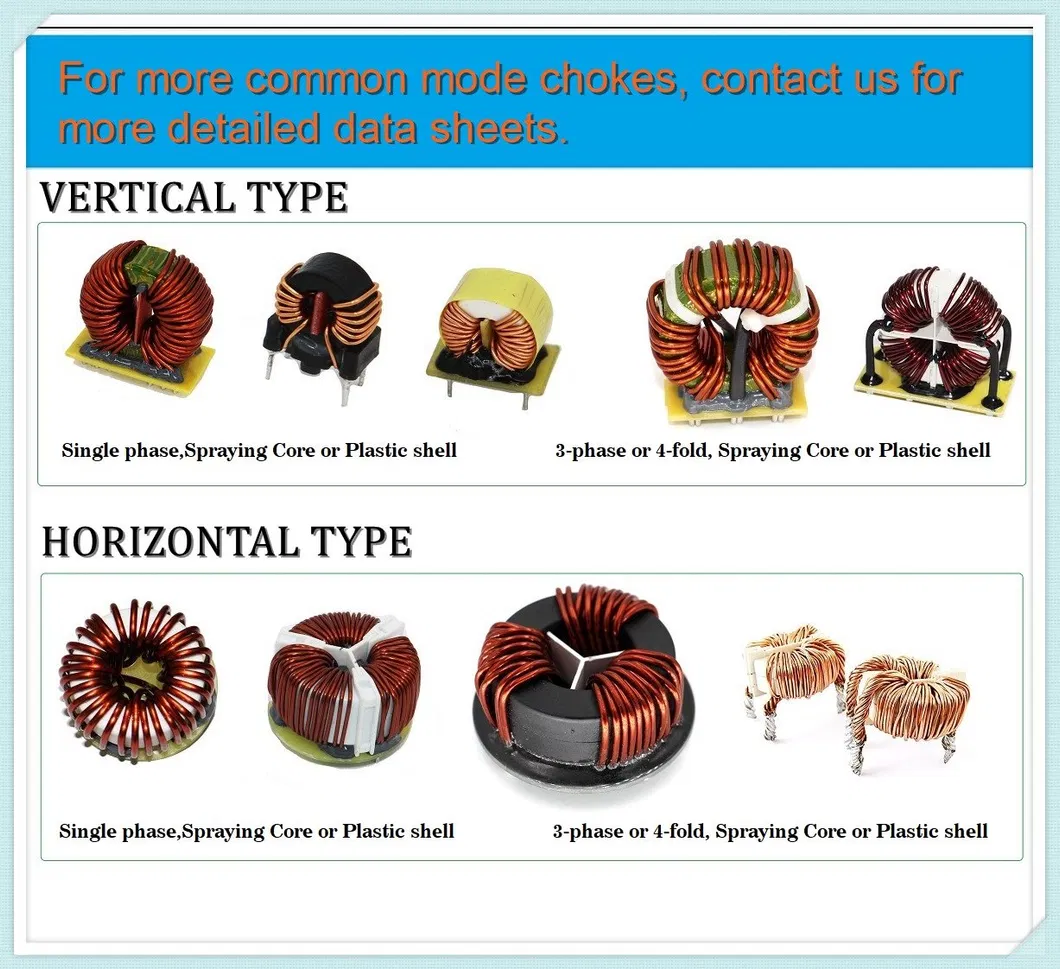

    Power Common Mode Choke Inductor (CSC core)Power Common Mode Choke Inductor (CSC core)Power Common Mode Choke Inductor (CSC core)Power Common Mode Choke Inductor (CSC core)Power Common Mode Choke Inductor (CSC core)
