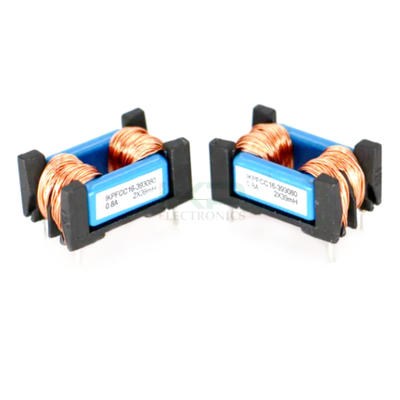

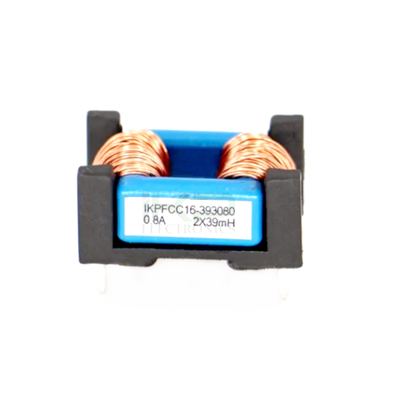

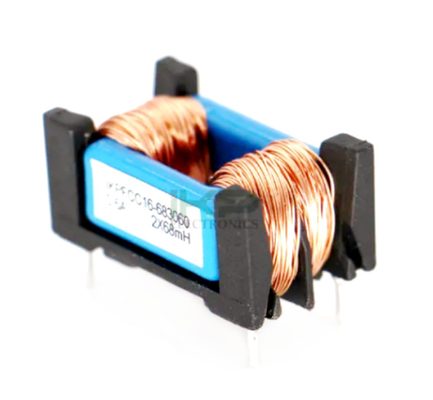

AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)

AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)

    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
  • AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: FCC23H-103230-5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.45-0.65
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    FCC23H-103230-5
    Working Frequency
    High Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    OEM/ODM
    According to Customer Inquiry
    Bobbin
    Independent Mold Opening
    Transport Package
    Carton
    Specification
    HWL(mm): 14.0*24.8*26.5
    Trademark
    IKP
    Origin
    China
    HS Code
    85045000
    Production Capacity
    10000pieces/Week

    Product Description

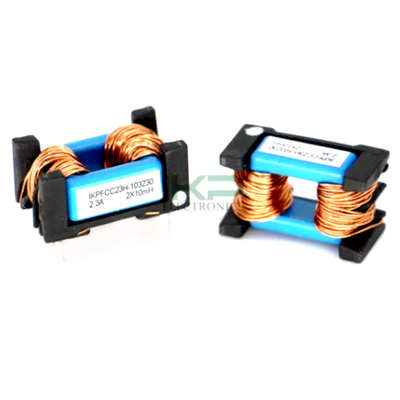

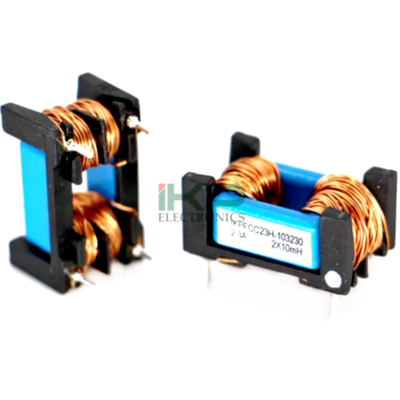

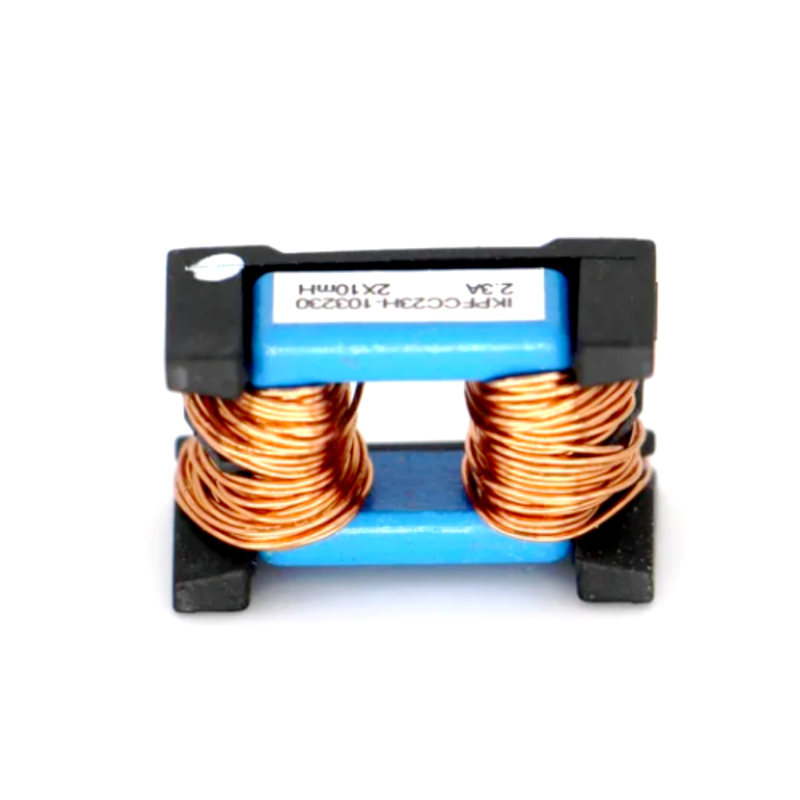

    AC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)
    Frame core power line choke provides exceptional common-mode suppression and exceptional stray inductance to suppress differential-mode noise. In effect, the FCC series combines the features of two separate components into one. They are compact in size and are available in the either vertical configuration, using minimal board area, or horizontal configuration for low profile applications. They are frequently used in LED lighting, electronics ballast and switch -mode power supplies.

    FEATURES:
    •Core Size: FC2319
    •Shape: Vertical, Horizontal
    •Rated Current: 0.7~2.3A
    •Insulation voltage: 1500VAC,2S(line-line)
    •Rated voltage: 250VAC max@40°C
    •High inductance with low resistance
    •Current-compensated double choke, closed magnetic circuit with frame construction
    •Excellent differential-mode suppression, high pulse-handing capability
    •Design complies with EN 60938-2 (VDE 0565-2), RoHS-compatible

    APPLICATIONS:
    •Electronic ballasts for lamps
    •High power switch-mode power supplies for consumer electronicsAC Power Common Mode Choke Line Filter Inductor with Frame Core (2.3A, 10mH)

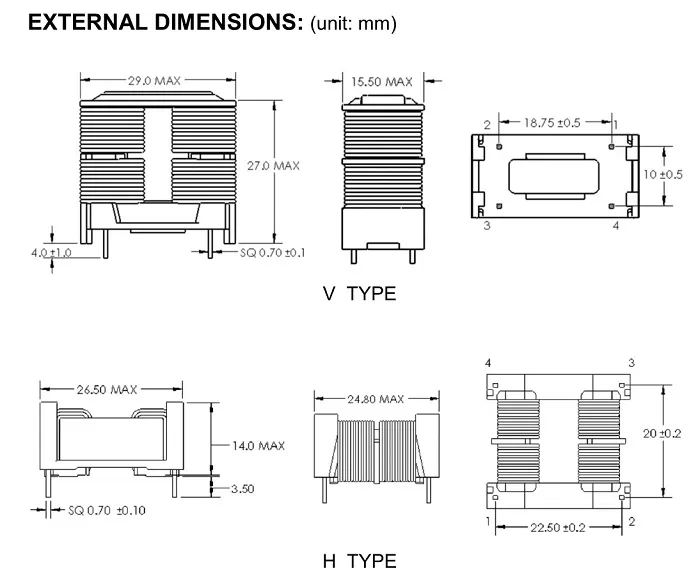

    Part
    Number
    Rated Current
    (A)MAX
    Inductance
    (mH) MIN
    DCR
    (mΩ) TYP
    FCC23H-103230 2.3 10 188
    FCC23H-153190 1.9 15 279
    FCC23H-273140 1.4 27 440
    FCC23H-393120 1.2 39 696
    FCC23H-473110 1.1 47 804
    FCC23H-683090 0.9 68 1100
    FCC23H-104070 0.7 100 1810
    FCC23V-103230 2.3 10 188
    FCC23V-153190 1.9 15 279
    FCC23V-273140 1.4 27 440
    FCC23V-393120 1.2 39 696
    FCC23V-473110 1.1 47 804
    FCC23V-683090 0.9 68 1100
    FCC23V-104070 0.7 100 1810
