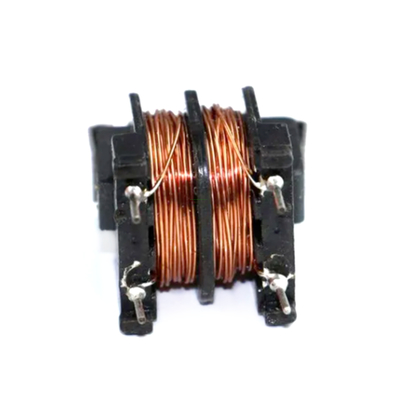

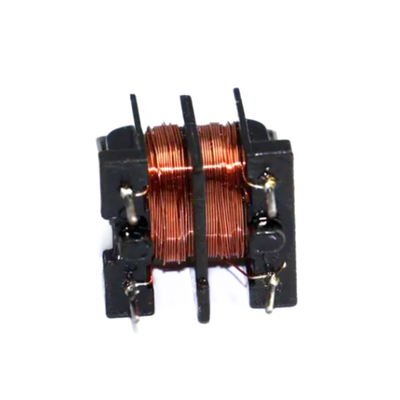

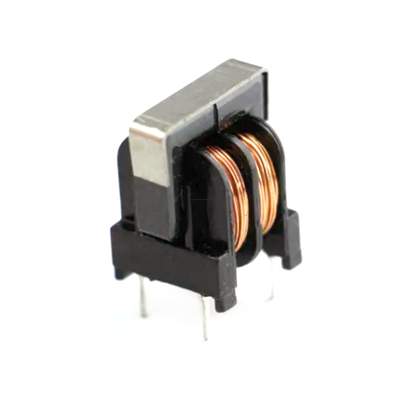

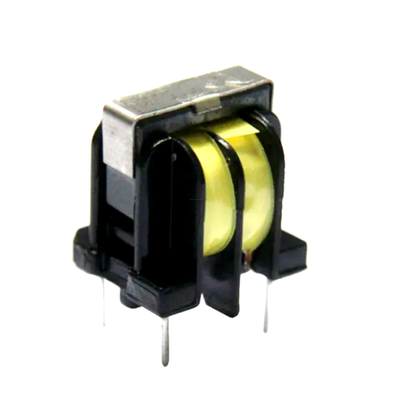

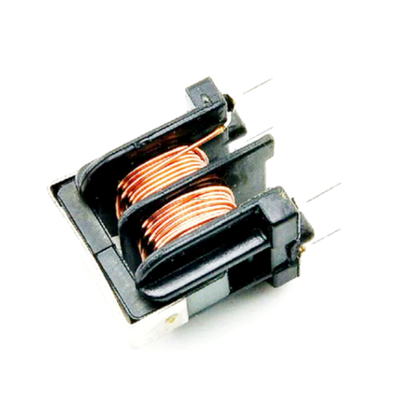

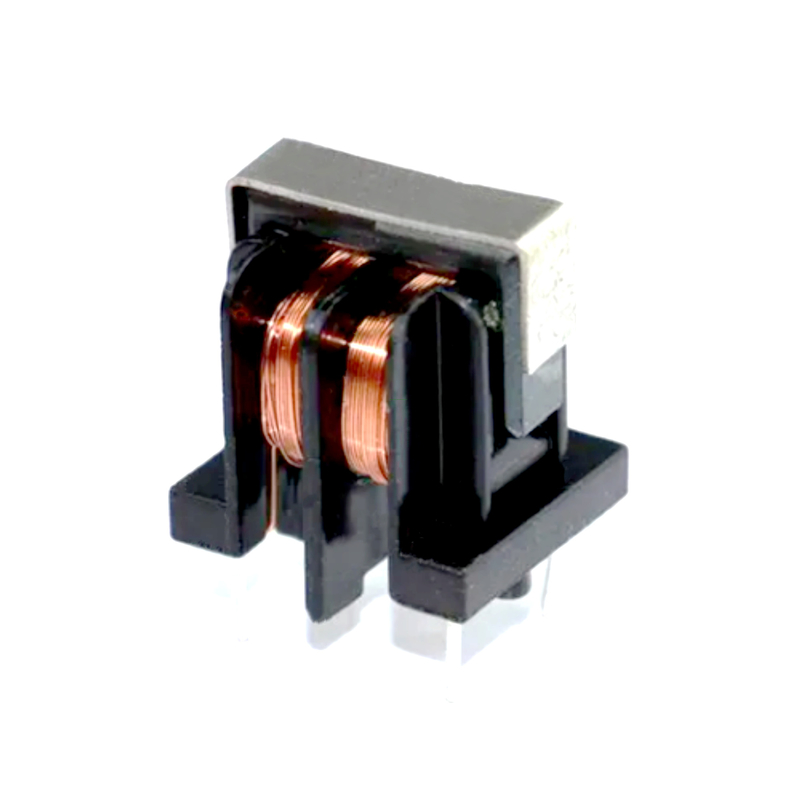

Uu/Ut Common Mode Choke Inductors

Uu/Ut Common Mode Choke Inductors

    • Uu/Ut Common Mode Choke Inductors
    • Uu/Ut Common Mode Choke Inductors
    • Uu/Ut Common Mode Choke Inductors
    • Uu/Ut Common Mode Choke Inductors
    • Uu/Ut Common Mode Choke Inductors
    • Uu/Ut Common Mode Choke Inductors
  • Uu/Ut Common Mode Choke Inductors

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-UT20-9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.165-0.19
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-UT20-9
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    OEM/ODM
    Inductor Value
    Variable Inductor
    Bobbin
    Ut20
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP-ELEC
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Day

    Product Description


    Features:
    1. Operating Frequency: 50~200KHz
    2. Low-cost, all models mainly used in less demanding fields on the electromagnetic shielding power field.
    3. Power frequency because of work, safety regulations and other requirements of the different temperature level will change.

    Specifications (Unit: mm):
    Uu/Ut Common Mode Choke Inductors
    PART NO. PINS Dimensions in mm (inches)
    A B C+/-0.5 D+/-0.5 E+/-0.5 F
    IKP-UT-20-01 4 23.5 17.5 10 4 13 22.5

    Note: The above are common skeleton styles; we accept customer requirements ODM or OEM. Welcome your design drawings or samples.

    Electrical performance:
    1. Operating frequency: 20kHz-500KHz
    2. Output power: 30 to 80 W
    3. Operating temperature:-40 ºCto +125 ºC
    4. Storage temperature:-25 ºCto +85 ºC
    Applications:
    Household appliances, switching power supplies, communications equipments, medical equipments, production equipments, CCTV, computers, lighting equipments.

    Kindly Reminder:
    1. About the SAMPLES. Please provide specific specifications or sample material, we will evaluate your products, design and produce samples.
    2. About PRICE. Transformers are custom products, due to the different materials and design, even if the same model, the price is not the same. The price also depends on the complexity of the parameters and the amount of orders.
    3. About SHIPPING. Samples in 3-5 days; mass production in 7-15 days.
    5. Packaging, logistics, according to the specific requirements of the purchase and sale contracts.
    6. Contact us now for more details.
