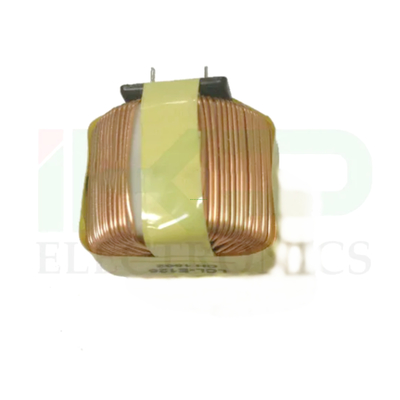

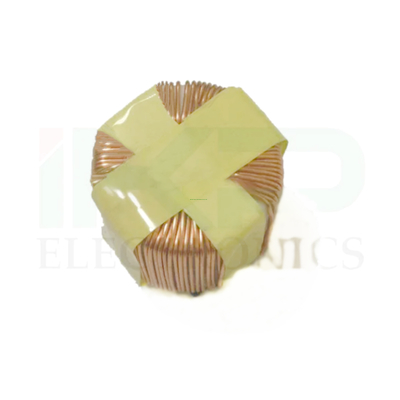

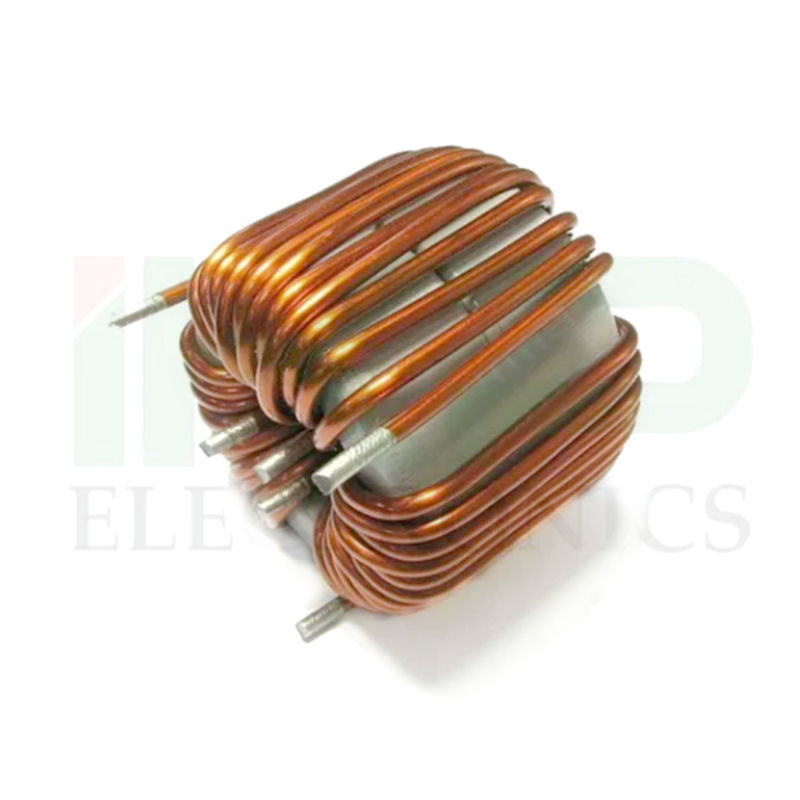

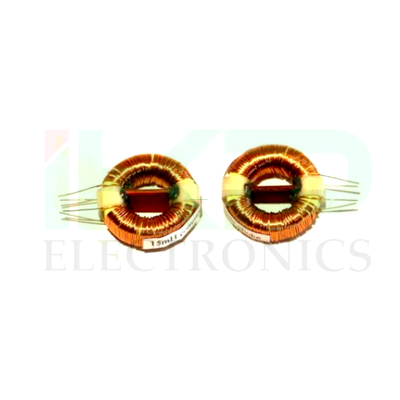

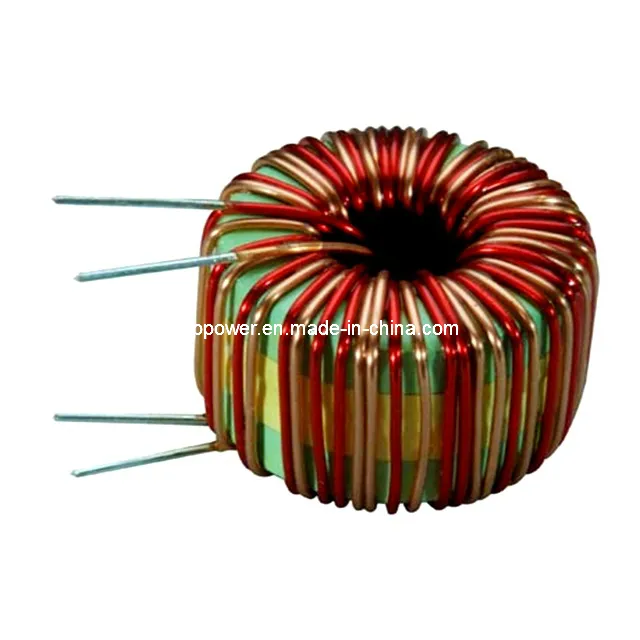

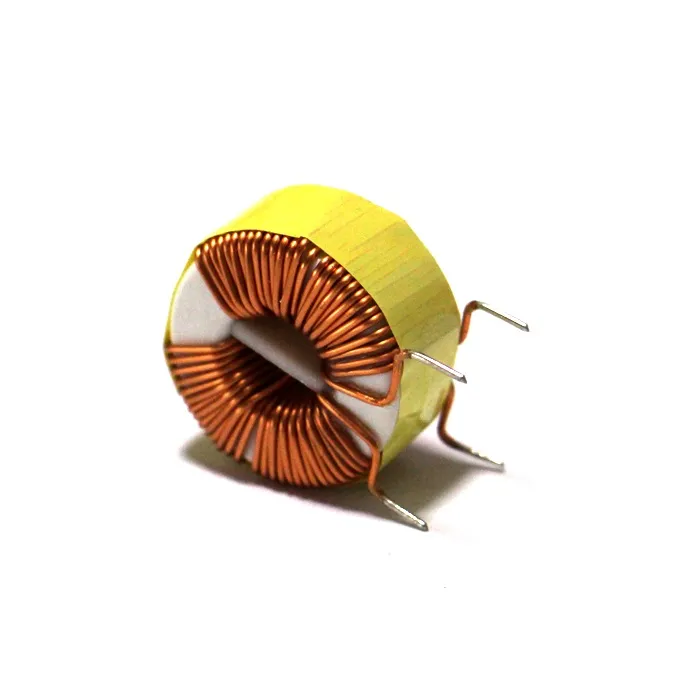

Nanocrystalline Common Mode Choke Inductor

Nanocrystalline Common Mode Choke Inductor

    • Nanocrystalline Common Mode Choke Inductor
    • Nanocrystalline Common Mode Choke Inductor
    • Nanocrystalline Common Mode Choke Inductor
    • Nanocrystalline Common Mode Choke Inductor
  • Nanocrystalline Common Mode Choke Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-LCL-E125

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.27-0.40
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-LCL-E125
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Copper Coil
    Range of Application
    Coupling
    Packaging Form
    Epoxy Resin Inductance
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Nanocrystalline Core
    Small Size,Large Inductance
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Anhui, Hefei
    HS Code
    850431900
    Production Capacity
    50, 000 PCS/Week

    Product Description



    Small size,high inductance
    Low core losses
    High permeability
    Applicatrions:
    Home application
    EMI filter
    Common mode choke
    ,High frequency transformer
    common mode choke

    Large current
    Low resistance
    MPP, Hi-flux, sendust, RF carbonyl and iron power core
    For excellent EMI suppressor
    High frequency and low loss

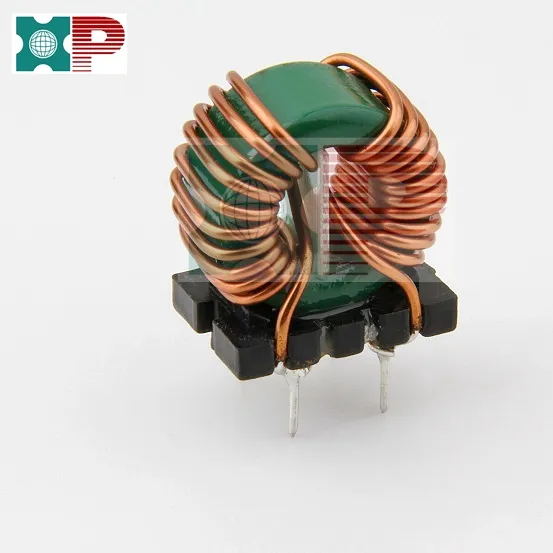

    Common mode filter coils

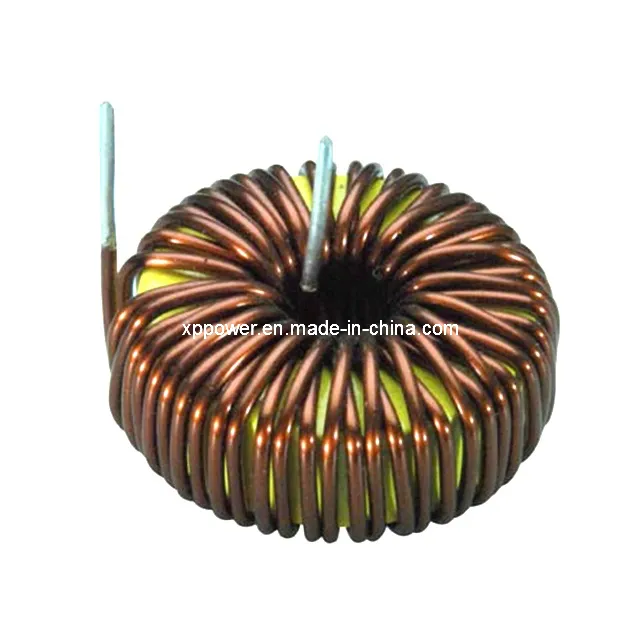

    Common mode toroidal inductor
    Toroidal common mode filter
    For SMPS application
    SMT and low profile available
    Compliant with the RoHS Directive
    Part Number Inductance (mH) @ 1KHz IDC(A)MAX. DCR()MAX. Wire Diameter (Φ) mm
    CMC1508-0.625MH 0.625 1 0.04 0.41
    CMC1508-0.1MH 0.1 1 0.06 0.41
    CMC1508-0.225MH 0.225 1 0.07 0.41
    CMC1508-0.4MH 0.4 1 0.1 0.41
    CMC1508-0.625MH 0.625 1 0.125 0.41
    CMC-1508-0.9MH 0.9 2 0.03 0.51
    CMC1508-1.225MH 1.225 2 0.04 0.51
    CMC1508-1.6MH 1.6 2 0.06 0.51
    CMC1508-2.0MH 2.0 2 0.075 0.51
    CMC1508-2.5MH 2.5 3 0.02 0.58
    CMC1508-3.0MH 3.0 3 0.03 0.58
    CMC1813-0.85MH 0.85 2 0.05 0.58
    CMC1813-0.62MH 0.62 2 0.075 0.58
    CMC1813-0.1MH 0.1 2 0.085 0.58
    CMC1813-0.22MH 0.22 2 0.11 0.58
    CMC1813-0.4MH 0.4 2 0.2 0.58
    CMC1813-0.62MH 0.625 5 0.035 0.58
    CMC3118-0.05MH 0.055 5 0.04 0.76
    CMC3118-0.22MH 0.22 4 0.046 0.76
    CMC3118-0.49MH 0.495 4 0.06 0.76
    CMC3118-0.88MH 0.88 2 0.2 0.58
    CMC3118-1.37MH 1.375 4 0.13 0.76
    CMC3118-1.98MH 1.98 5 0.072 0.91
    Nanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke InductorNanocrystalline Common Mode Choke Inductor
