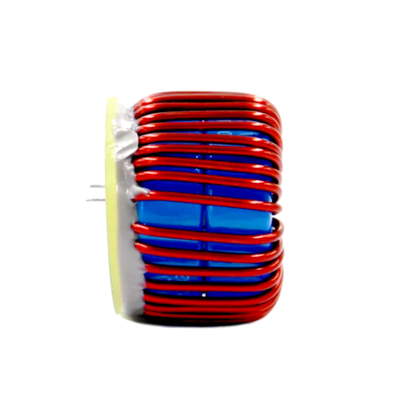

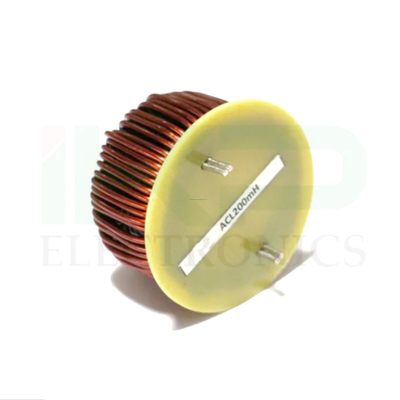

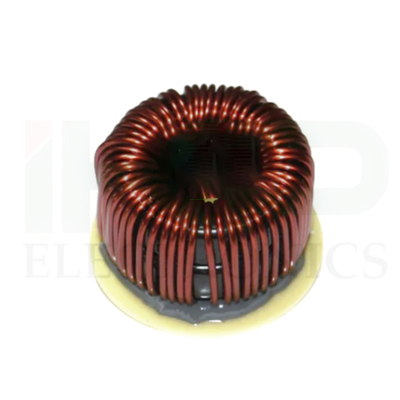

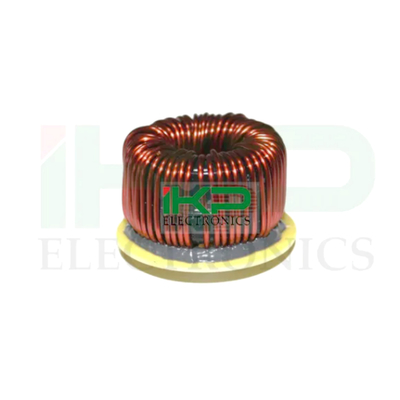

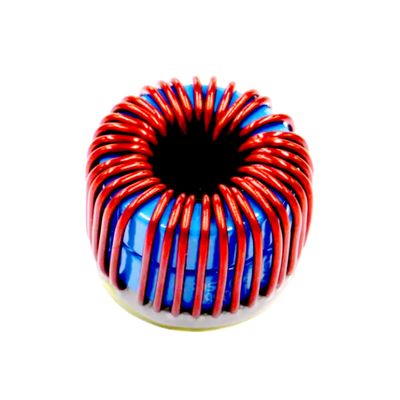

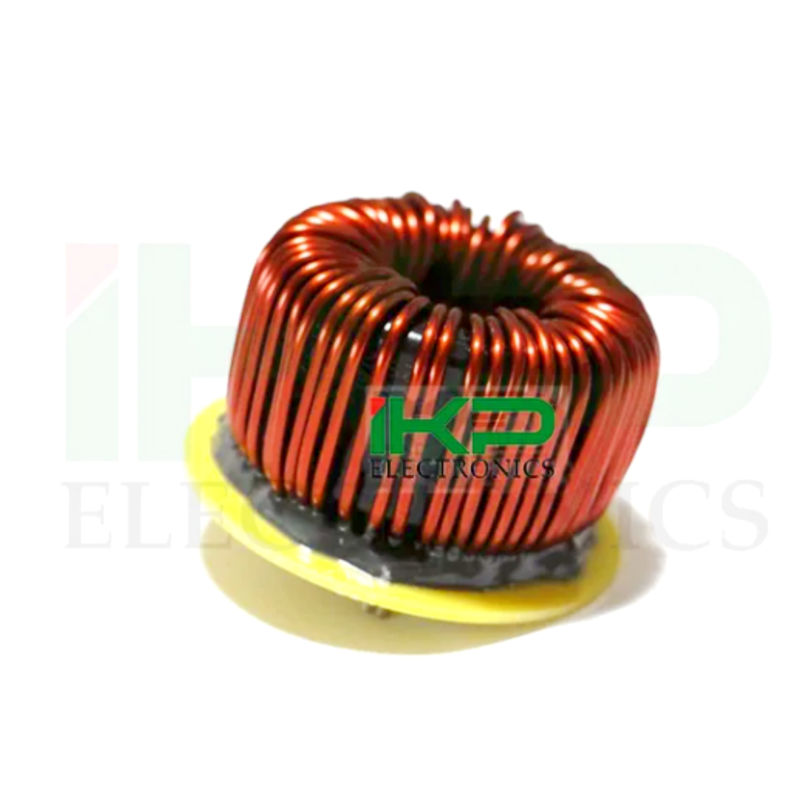

30A Common Mode Choke Inductor Wih Two Cores

30A Common Mode Choke Inductor Wih Two Cores

    • 30A Common Mode Choke Inductor Wih Two Cores
    • 30A Common Mode Choke Inductor Wih Two Cores
    • 30A Common Mode Choke Inductor Wih Two Cores
    • 30A Common Mode Choke Inductor Wih Two Cores
    • 30A Common Mode Choke Inductor Wih Two Cores
    • 30A Common Mode Choke Inductor Wih Two Cores
  • 30A Common Mode Choke Inductor Wih Two Cores

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL4545-12MH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.33-0.50
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL4545-12MH
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Mpp
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Mpp
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description



    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335
    Part Number Inductance (mH) @ 1KHz IDC(A)MAX. DCR()MAX. Wire Diameter (Φ) mm
    CMC1508-0.625MH 0.625 1 0.04 0.41
    CMC1508-0.1MH 0.1 1 0.06 0.41
    CMC1508-0.225MH 0.225 1 0.07 0.41
    CMC1508-0.4MH 0.4 1 0.1 0.41
    CMC1508-0.625MH 0.625 1 0.125 0.41
    CMC-1508-0.9MH 0.9 2 0.03 0.51
    CMC1508-1.225MH 1.225 2 0.04 0.51
    CMC1508-1.6MH 1.6 2 0.06 0.51
    CMC1508-2.0MH 2.0 2 0.075 0.51
    CMC1508-2.5MH 2.5 3 0.02 0.58
    CMC1508-3.0MH 3.0 3 0.03 0.58
    CMC1813-0.85MH 0.85 2 0.05 0.58
    CMC1813-0.62MH 0.62 2 0.075 0.58
    CMC1813-0.1MH 0.1 2 0.085 0.58
    CMC1813-0.22MH 0.22 2 0.11 0.58
    CMC1813-0.4MH 0.4 2 0.2 0.58
    CMC1813-0.62MH 0.625 5 0.035 0.58
    CMC3118-0.05MH 0.055 5 0.04 0.76
    CMC3118-0.22MH 0.22 4 0.046 0.76
    CMC3118-0.49MH 0.495 4 0.06 0.76
    CMC3118-0.88MH 0.88 2 0.2 0.58
    CMC3118-1.37MH 1.375 4 0.13 0.76
    CMC3118-1.98MH 1.98 5 0.072 0.91
    30A Common Mode Choke Inductor Wih Two Cores
