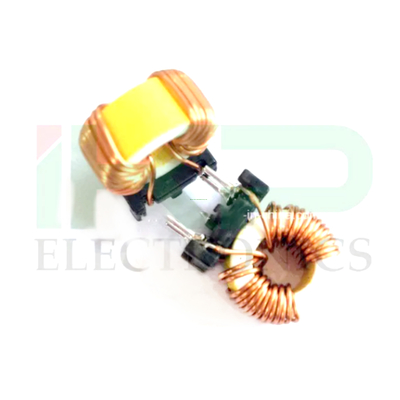

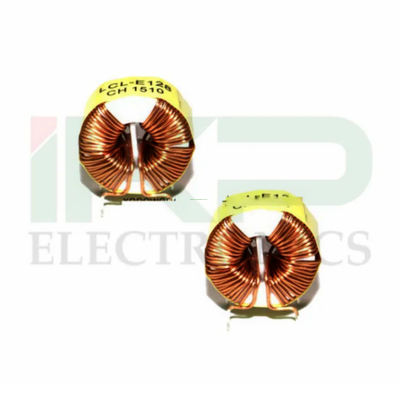

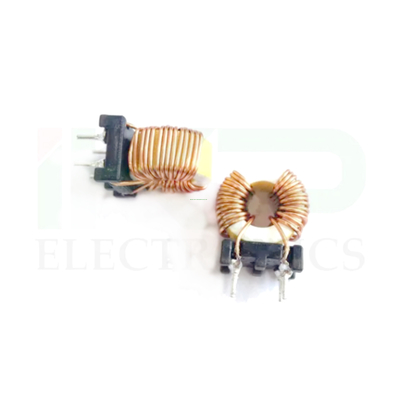

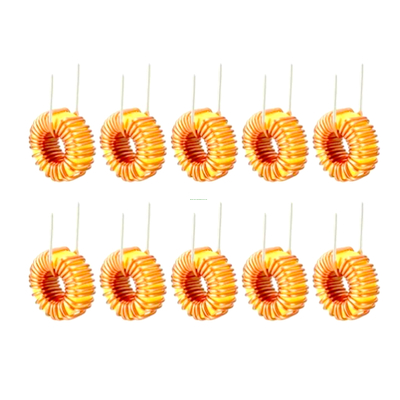

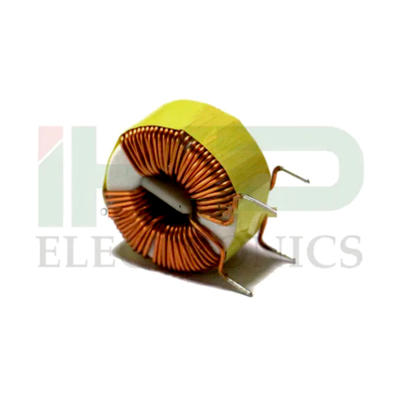

Common Mode Choke Coil Power Inductor with Base

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-CMC1517-3MH

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.34-0.50
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-CMC1517-3MH

Working Frequency

High Frequency

Structure of Winding

Multilayer Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

High Frequency

Packaging Form

Ikp

Brand

OEM

Inductor Value

Variable Inductor

Core

Ferrite Core

Transport Package

Carton/Tube

Specification

Rohs, ISO9001

Trademark

IKP

Origin

Hefei, Anhui

HS Code

85045000

Production Capacity

50, 000 PCS/Week

Packaging & Delivery

Package Size

37.00cm * 26.00cm * 21.00cm

Package Gross Weight

10.000kg

Product Description

Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

Material list:
1 Core: T14x9x5 TS10 TDG or EQU
2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
3 PCB: FR-4 1.5x9x5
4 Case
5 Epoxy: 6020H wells electronic material Co Ltd, E2296335

Part Number	Inductance (mH) @ 1KHz	IDC(A)MAX.	DCR()MAX.	Wire Diameter (Φ) mm
CMC1508-0.625MH	0.625	1	0.04	0.41
CMC1508-0.1MH	0.1	1	0.06	0.41
CMC1508-0.225MH	0.225	1	0.07	0.41
CMC1508-0.4MH	0.4	1	0.1	0.41
CMC1508-0.625MH	0.625	1	0.125	0.41
CMC-1508-0.9MH	0.9	2	0.03	0.51
CMC1508-1.225MH	1.225	2	0.04	0.51
CMC1508-1.6MH	1.6	2	0.06	0.51
CMC1508-2.0MH	2.0	2	0.075	0.51
CMC1508-2.5MH	2.5	3	0.02	0.58
CMC1508-3.0MH	3.0	3	0.03	0.58
CMC1813-0.85MH	0.85	2	0.05	0.58
CMC1813-0.62MH	0.62	2	0.075	0.58
CMC1813-0.1MH	0.1	2	0.085	0.58
CMC1813-0.22MH	0.22	2	0.11	0.58
CMC1813-0.4MH	0.4	2	0.2	0.58
CMC1813-0.62MH	0.625	5	0.035	0.58
CMC3118-0.05MH	0.055	5	0.04	0.76
CMC3118-0.22MH	0.22	4	0.046	0.76
CMC3118-0.49MH	0.495	4	0.06	0.76
CMC3118-0.88MH	0.88	2	0.2	0.58
CMC3118-1.37MH	1.375	4	0.13	0.76
CMC3118-1.98MH	1.98	5	0.072	0.91
