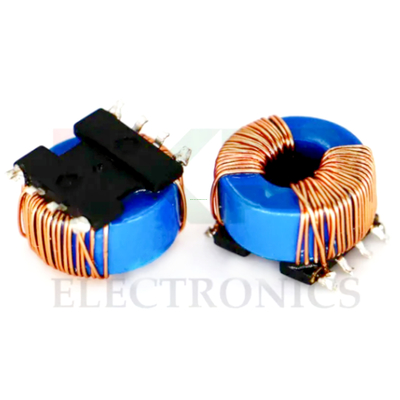

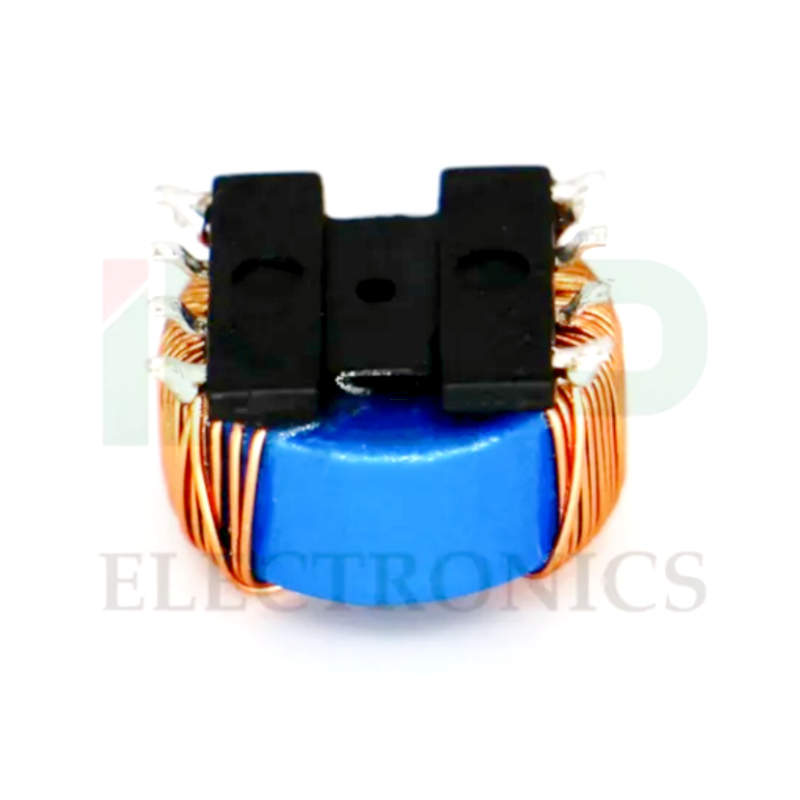

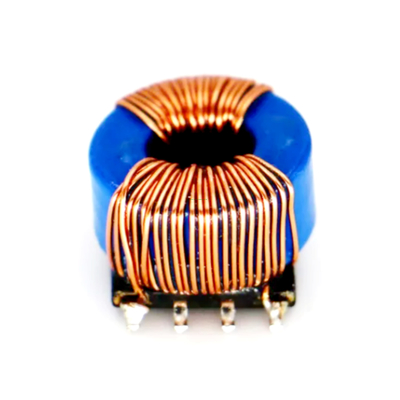

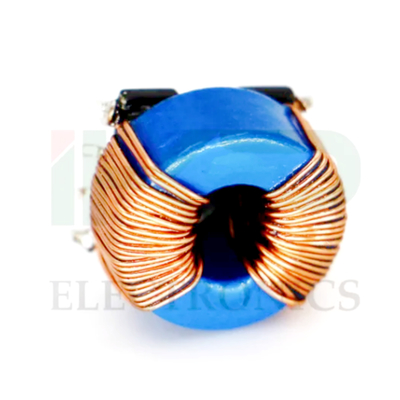

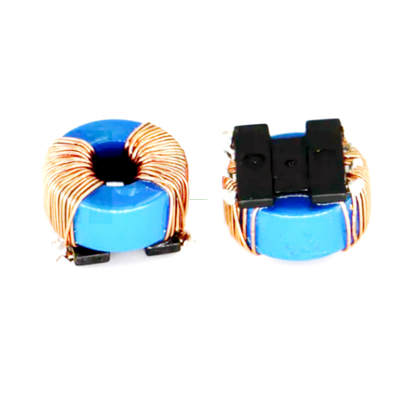

Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor

Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor

    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
  • Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: LM-TR100500-007R-1

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.02-0.17
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    LM-TR100500-007R-1
    Working Frequency
    High Frequency
    Structure of Winding
    CMC
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Iron Core Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    Transport Package
    Carton
    Specification
    Spraying Nanocrystalline Core
    Trademark
    IKP
    Origin
    China
    HS Code
    8504319000
    Production Capacity
    20000pieces/Day

    Product Description

    Features:
    1. High initial permeability and high AL value
    2. High effective insertion loss, filtering noise reduction effect is better
    3. Good frequency characteristics, and according to the different frequency band insertion loss requires adjusting the initial permeability of µ0,µ0 variable ratio range from 20000 to 160000
    4. Excellent temperature stability
    5. Small volume, light weight, and can be used to spray treatment, more effective in reducing the size of the magnetic core


    Application:
    Frequency Transformer, Switching power supply, UPS uninterrupted power supply, Pulse welding machine, EV charging pile, Power converter, Wind power generator, Various transmission device, Inverter air conditioner

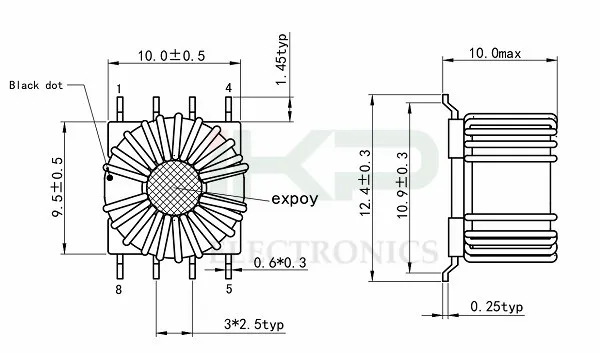

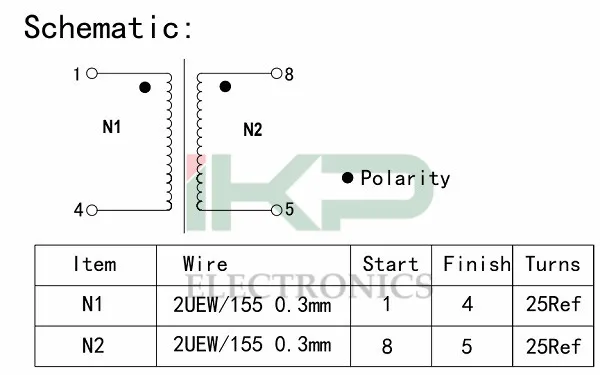

    Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor
    Customized Design 15mh Nanocrystalline Core EMC Common Mode Filter Inductor


    Physical and Electrical Performance Parameters:
    Core size (mm)
    ID×OD×H
    Dimensions lFe
    (cm)
    AFe
    (cm2)
    AL Protection
    ID OD H 10K
    nominal
    100K
    nominal
    4.5×7.2×3.0 3.5 8.0 4.5 1.81 0.03 12 -- Out casing
    6.5×9.8×4.5 5.1 11.2 5.7 2.56 0.06 22 5 Out casing
    6.5×10×5.0 5.1 11.2 6.5 2.59 0.07 24 -- Out casing
    8.0×12×4.5 6.5 13.5 6.5 3.14 0.07 25 -- Out casing
    10×14×5.0 8.5 15.5 10 4.08 0.19 40 -- Out casing
    10×16×8 8.5 17.2 10.3 5.03 0.25 45 -- Spraying
    12×20×8 10 22.3 10.3 5.03 0.25 45 -- Out casing
    12×20×8 10 22.3 10.3 5.03 0.25 20 9 Out casing
    12.5×16×6 >=10.7 <=17.8 <=8 4.48 0.08 16 5.3 Spraying
    16×26×10 14.0 27.5 12.5 6.6 0.39 65 15 Out casing
    16.5×21×12 14.6 22.8 15 5.89 0.21 -- 7.5 Out casing
    18×28×15 16 30.2 17.6 7.23 0.59 60 -- Out casing
    20×25×10 18 27.8 12.7 7.07 0.2 30 7 Out casing
    20×30×15 17.8 33.1 17.5 7.85 0.59 70 -- Out casing
    20×32×10 17.8 34.0 12.5 8.17 0.47 45 -- Out casing
    25×40×10 22.5 42.5 13 10.21 0.59 50 -- Out casing
    25×40×15 21.9 43.2 18.9 10.21 0.88 70 -- Out casing
    32×40×15 29.2 44.3 18.6 11.31 0.47 45 7 Out casing
    32×40×15 >=28.5 <=43.5 <=17.8 11.31 0.47 14 7.2 Spraying
    32×50×15 29 53.2 18.2 12.88 1.05 60 -- Out casing
    32×50×20 29.5 53.2 23.5 12.88 1.40 80 -- Out casing
    40×50×20 >=36.5 <=53.5 <=22.8 14.14 0.78 30 10 Spraying
    40×50×25 36.2 53.4 28.3 14.14 0.98 62 12 Out casing
    40×60×20 37 63 24 15.71 1.56 70 -- Out casing
    40×64×20 37 67 24 16.34 1.87 80 -- Spraying
    50×65×25 47 68 29 18.06 1.46 60 18 Out casing
    50×80×20 47 84 24 20.42 2.34 80 -- Out casing
    70×120×30 65.5 125.1 36.1 29.85 5.85 150 -- Out casing
    80×100×20 103.6 76 23.7 28.27 1.56 45 13 Out casing
    90×125×25 85.4 129.5 30 33.77 3.41 90 -- Out casing
    100×130×25 >=95 <=134.5 <=28.5 36.13 2.93 75 -- Out casing
    130×160×30 >=125 <=165 <=33.5 45.55 3.51 70 -- Spraying
    190×220×30 184 227.5 35.7 64.4 3.51 50 13 Out casing
