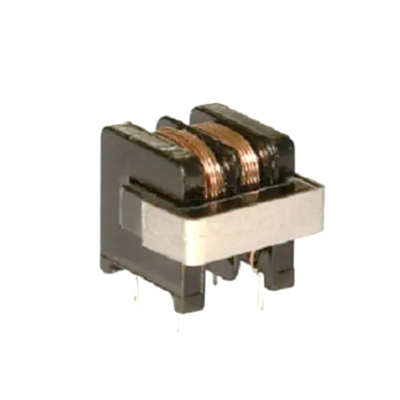

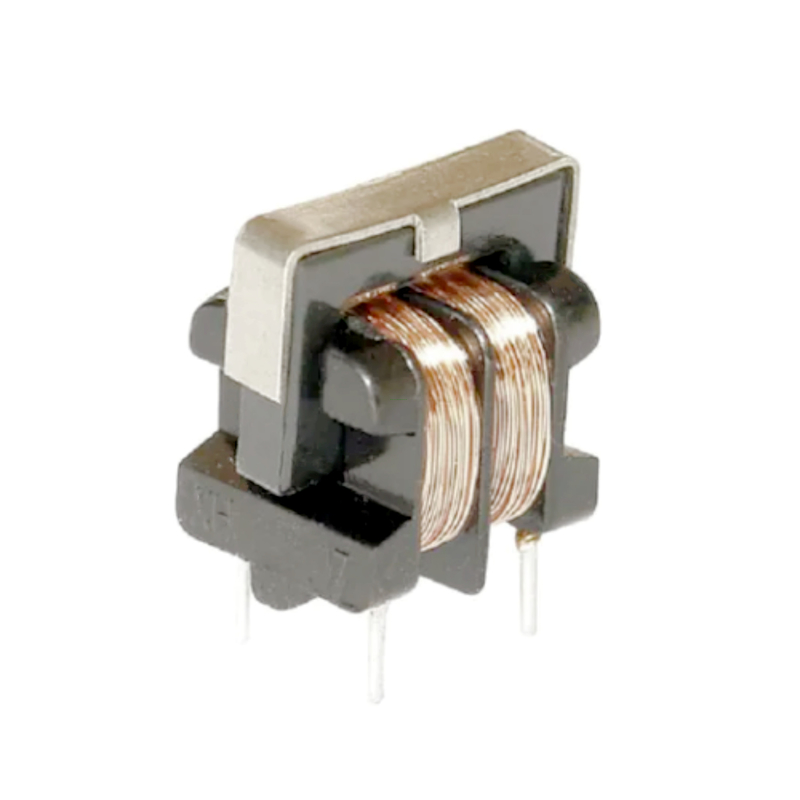

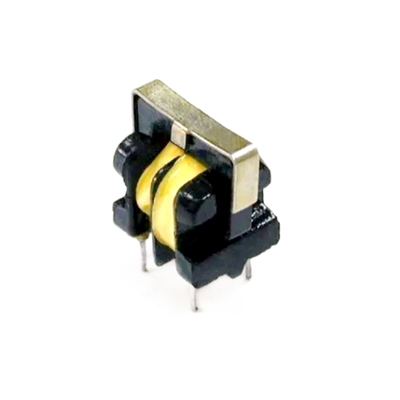

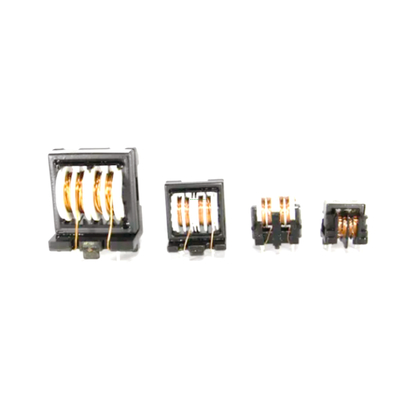

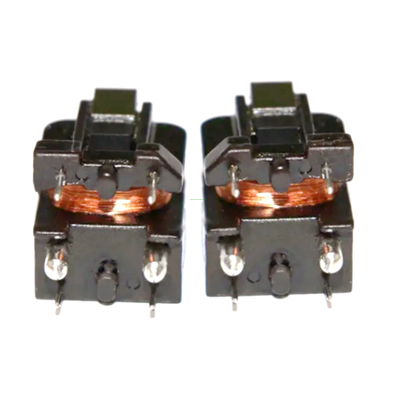

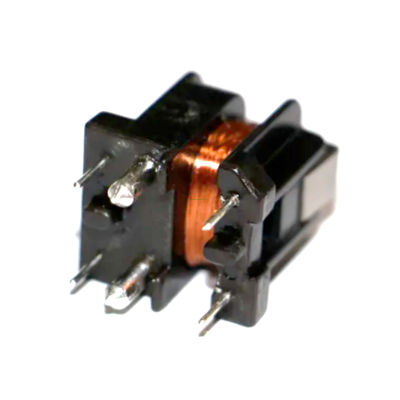

Name: Uu9.8/Uu10.5/Uu15.7/Uu16 Type EMI Common Mode Choke Inductors
Brand: IKP Electronics Co., Ltd.
SKU: IKP-LF-UU Series
Price: 0.20 USD
Availability: InStock

Home Products Common Mode Chokes

Uu9.8/Uu10.5/Uu15.7/Uu16 Type EMI Common Mode Choke Inductors

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-LF-UU Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.20-0.25
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-LF-UU Series

Working Frequency

High Frequency

Structure of Winding

Multilayer Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

OEM/ODM

Inductor Value

Variable Inductor

Transport Package

Carton

Specification

UU Type

Trademark

IKP-ELEC

Origin

Hefei, China

HS Code

85043190

Production Capacity

50000 Pieces/Day

Product Description

Features:
1. Small size
2. Easy to round
3. Low price
4. High reliability
5. Meeting UL, VDE, CSA requirements
6. UL approved Class 130°C insulation system is available
7. Windings balanced within 1%
8. Customized specifications are welcome
9. Small, medium and high quantity is available

Application:
1. Switching power supply
2. Lighting application
3. Machinery
4. Telecommunication equipment
5. Medical application equipment
6. Home appliance

Uu9.8/Uu10.5/Uu15.7/Uu16 Type EMI Common Mode Choke Inductors

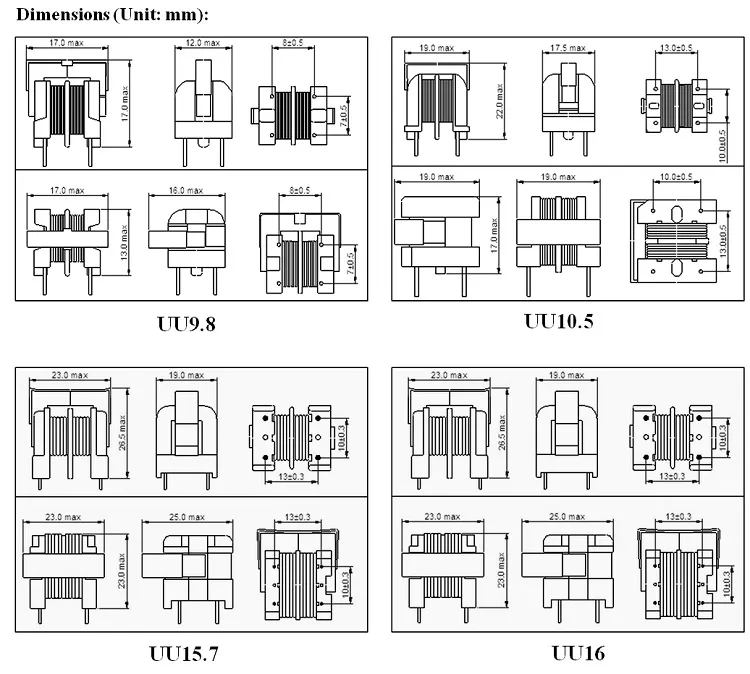

Model	Mounting style	Length	Width	Height	One side pins and pin distance		The other side pins and pin distance		Row distance	Pin Diameter
UU9.8-01	Vertical	17.0	12.0	17.0	2	7.0	2	7.0	8.0	Φ0.6
UU9.8-02	Vertical	17.0	16.0	13.0	2	7.0	2	7.0	8.0	Φ0.6
UU10.5-01	Vertical	19.0	17.5	22.0	2	10.0	2	10.0	13.0	Φ0.7
UU10.5-02	Vertical	19.0	19.0	17.0	2	10.0	2	10.0	13.0	Φ0.7
UU15.7-01	Vertical	23.0	19.0	26.5	2	10.0	2	10.0	13.0	Φ0.7
UU15.7-02	Vertical	23.0	25.0	23.0	2	10.0	2	10.0	13.0	Φ0.7
UU16-01	Vertical	23.0	19.0	26.5	2	10.0	2	10.0	13.0	Φ0.7
UU16-02	Vertical	23.0	25.0	23.0	2	10.0	2	10.0	13.0	Φ0.7
