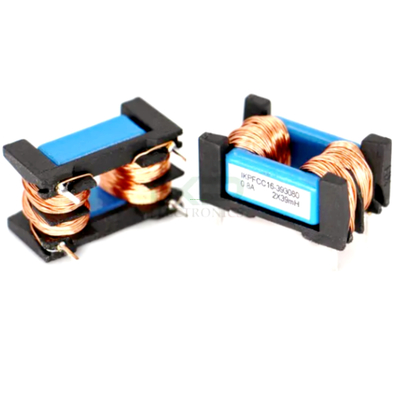

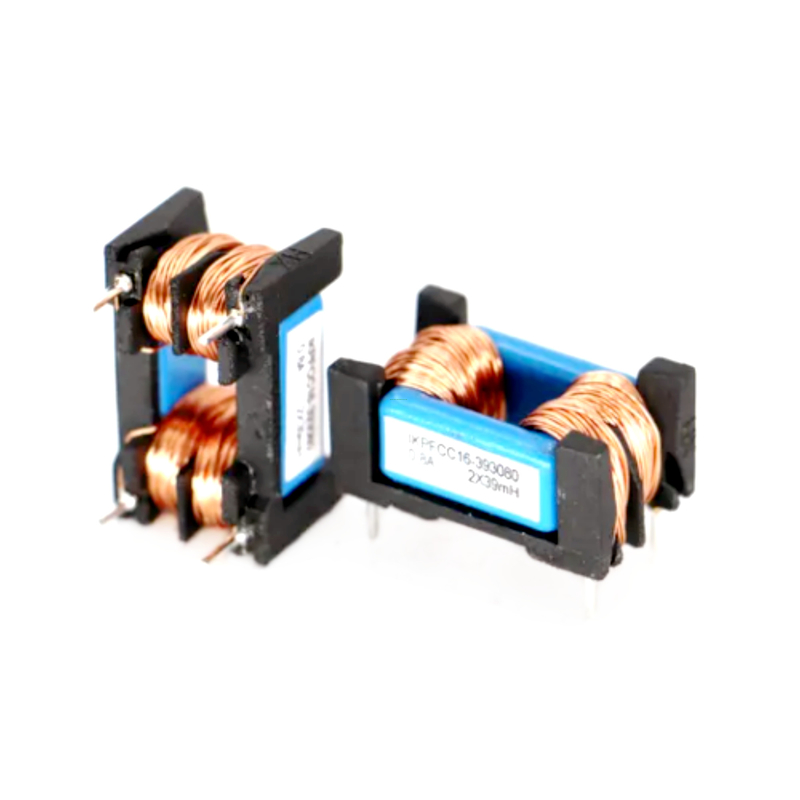

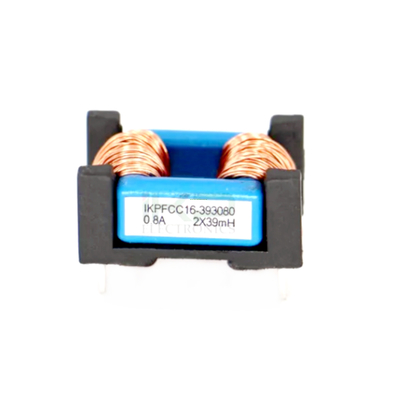

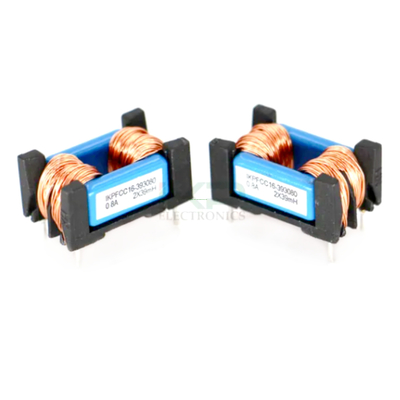

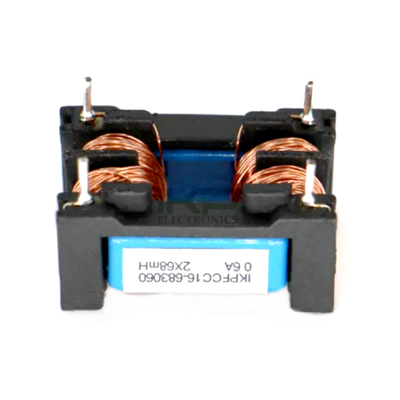

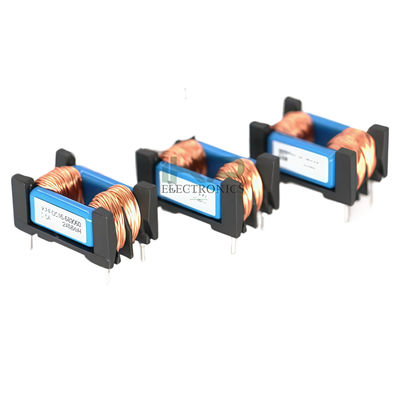

China Customized Frame Core Common Mode Choke Filter Inductors

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	FCC16-393080-7

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	0.35-0.55
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

FCC16-393080-7

Working Frequency

High Frequency

Structure of Winding

Single Coil

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Choke

Packaging Form

Power Coils

Brand

Ikp

Inductor Value

Variable Inductor

OEM/ODM

According to Customer Inquiry

Bobbin

Independent Mold Opening

Transport Package

Carton

Specification

HWL(mm): 13.5*15.0*24.5

Trademark

IKP

Origin

China

HS Code

85045000

Production Capacity

10000pieces/Week

Product Description

Frame core power line choke provides exceptional common-mode suppression and exceptional stray inductance to suppress differential-mode noise. In effect, the FCC series combines the features of two separate components into one. They are compact in size and are available in the either vertical configuration, using minimal board area, or horizontal configuration for low profile applications. They are frequently used in LED lighting, electronics ballast and switch -mode power supplies.

FEATURES:
•Core Size: FC1614
•Shape: Vertical
•Rated Current: 0.29~2.93A
•Insulation voltage: 1500VAC,2S(line-line)
•Rated voltage: 250VAC max@40°C
•High inductance with low resistance
•Current-compensated double choke, closed magnetic circuit with frame construction
•Excellent differential-mode suppression, high pulse-handing capability
•Design complies with EN 60938-2 (VDE 0565-2), RoHS-compatible

APPLICATIONS:
•Electronic ballasts for lamps
•High power switch-mode power supplies for consumer electronics

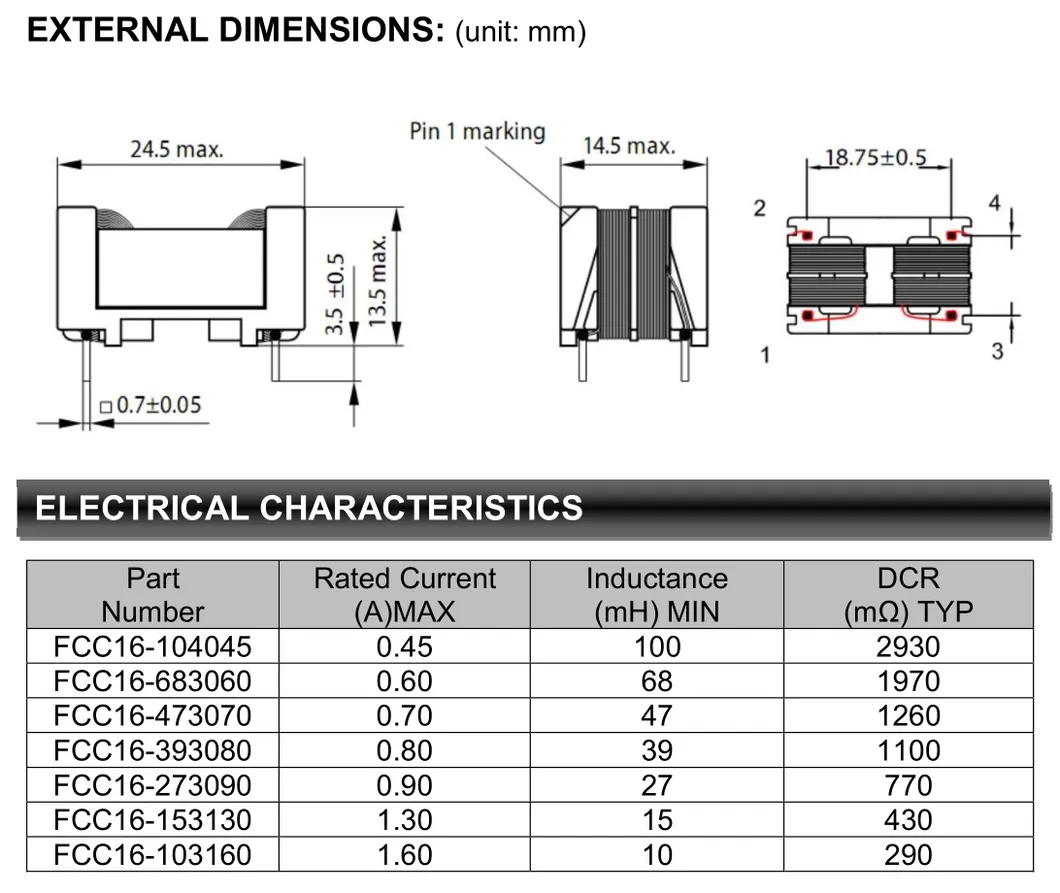

EXTERNAL DIMENSIONS: (unit: mm)

China Customized Frame Core Common Mode Choke Filter Inductors
