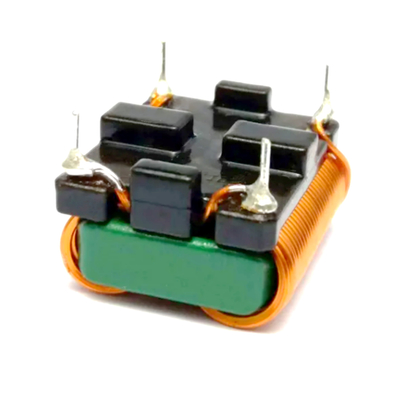

Sq/UC1918 Type Flat Line Common Mode Inductors

Sq/UC1918 Type Flat Line Common Mode Inductors

    • Sq/UC1918 Type Flat Line Common Mode Inductors
    • Sq/UC1918 Type Flat Line Common Mode Inductors
    • Sq/UC1918 Type Flat Line Common Mode Inductors
    • Sq/UC1918 Type Flat Line Common Mode Inductors
    • Sq/UC1918 Type Flat Line Common Mode Inductors
    • Sq/UC1918 Type Flat Line Common Mode Inductors
  • Sq/UC1918 Type Flat Line Common Mode Inductors

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-LF-CMC-SQ1918 Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.16-0.22
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-LF-CMC-SQ1918 Series
    Working Frequency
    High Frequency
    Structure of Winding
    Flat Wire Vertical Winding
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    EMI/EMC
    Packaging Form
    Vertical/Horizontal
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    Transport Package
    Carton and Tray
    Specification
    SQ1918 Series
    Trademark
    IKP
    Origin
    China
    HS Code
    85045000
    Production Capacity
    10000pieces/Day

    Product Description

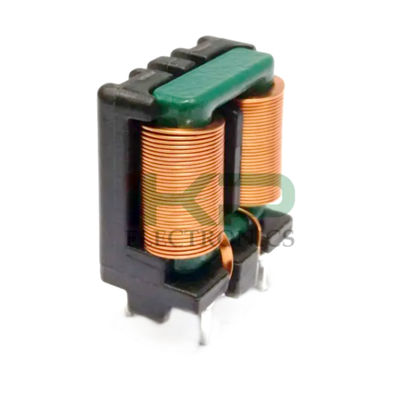

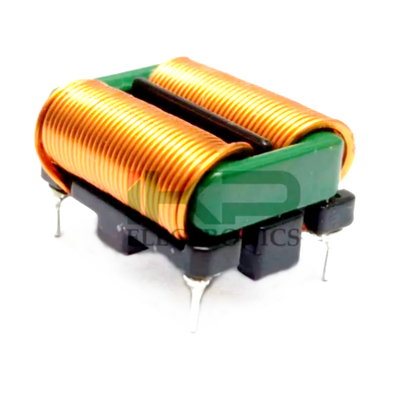

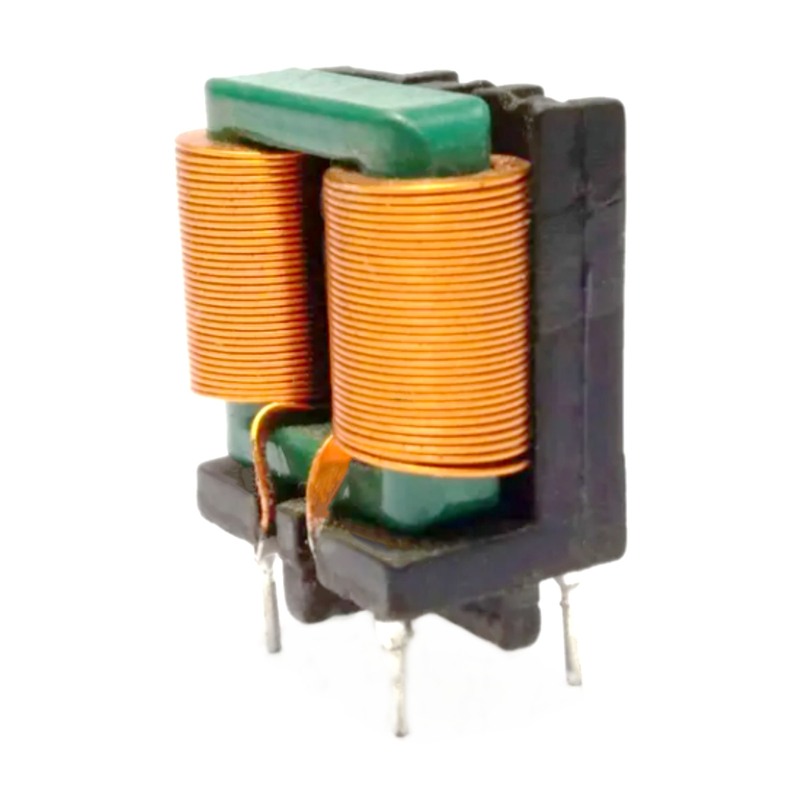

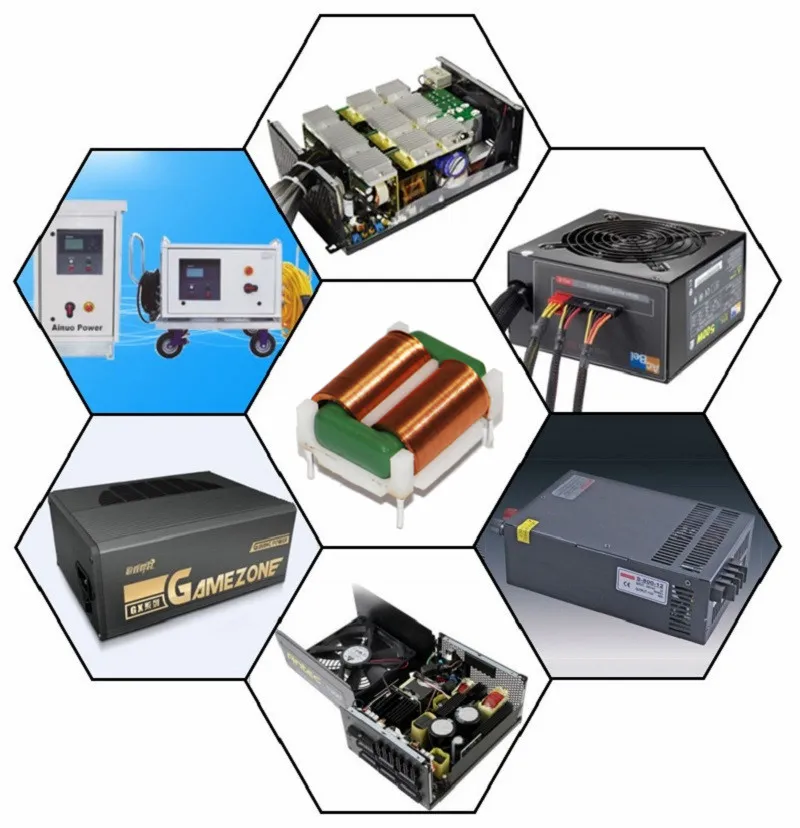

    Sq/UC1918 Type Flat Line Common Mode Inductors

    Product features and characteristics:
    *Great flat wire winding process
    *Small volume, large current
    *Unit current density is 1.3 times or more of round copper wire
    *Low DC resistance, small distributed capacitance
    *Easy to dissipate
    *Excellent EMI effect and stability
    *Produced by fully automatic machine, high efficiency and stable quality
    *Good insulation strength and long service life
    *Vertical or horizontal, customized is available

    Electrical parameters:
    *Flat wire specifications: width 1.0-2.0mm, thickness 0.1-0.5mm
    *Rated voltage(v): 85 to 265 AC, 50/60Hz
    *Turns ratio: N1:N2=1:1
    *Insulation Resistance: 100mΩ MIN at 500DC
    *Test frequency response: 10kHz 100mV
    *Operating temperature range: -40ºC to +150ºC
    *Temperature rise: 50ºC MAX
    *Used to absorb common mode interference signals of 9-30MHz
    *Used to absorb common mode signals and differential mode signals in the 9-30MHz band

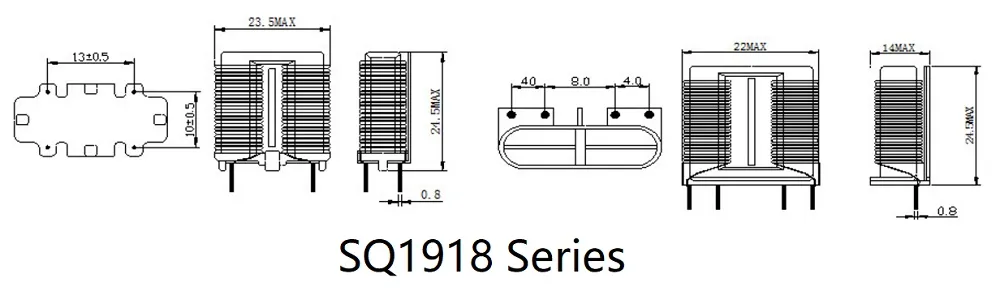

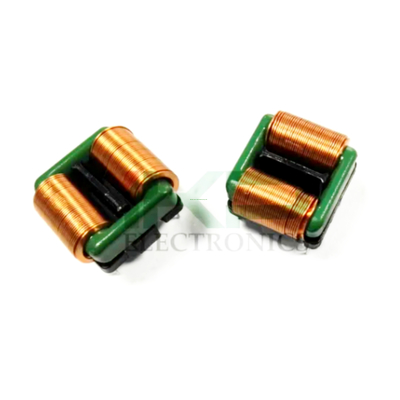

    Sq/UC1918 Type Flat Line Common Mode Inductors


    General product specifications:
    Specification Inductance
    MIN
    1KHZ 0.25V
    Dimensions (mm MAX) Current(A) Power(W)
    W D H L E 1#Base 2#Base MAX MAX
    PIN 1 PIN 2 PIN 1 PIN 2
    SQ1515V15 >15mH 16 22 22 3.5 0.8 12.8 10 8 7 1.5 60
    SQ1515V20 >20mH 16 22 22 3.5 0.8 12.8 10 8 7 1.2 60
    SQ1515V25 >25mH 16 22 22 3.5 0.8 12.8 10 8 7 1.2 60
    SQ1515H15 >15mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.5 60
    SQ1515H20 >20mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.2 60
    SQ1515H25 >25mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.2 60
    SQ1615V15 >15mH 16 22 23 3.5 0.8 12.8 10 8 7 1.5 65
    SQ1615V20 >20mH 16 22 23 3.5 0.8 12.8 10 8 7 1.2 65
    SQ1615V25 >25mH 16 22 23 3.5 0.8 12.8 10 8 7 1.2 65
    SQ1615H15 >15mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.5 65
    SQ1615H20 >20mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.2 65
    SQ1615H25 >25mH 18 22 14 3.5 0.8 16.8 12.8 - - 1.2 65
    SQ1918V12 >12mH 15 25 26 4 0.8 12.8 10 10 10 2.0 180
    SQ1918V20 >20mH 15 25 26 4 0.8 12.8 10 10 10 1.5 180
    SQ1918V30 >30mH 15 25 26 4 0.8 12.8 10 10 10 1.2 180
    SQ1918H12 >12mH 22 24 13 4 0.8 16.8 15 - - 2.0 180
    SQ1918H20 >20mH 22 24 13 4 0.8 16.8 15 - - 1.5 180
    SQ1918H30 >30mH 22 24 13 4 0.8 16.8 15 - - 1.2 180
    SQ2418V12 >12mH 15 24 32 4 0.8 12.5 10 - - 2.5 250
    SQ2418V20 >20mH 15 24 32 4 0.8 12.5 10 - - 1.8 250
    SQ2418V30 >30mH 15 24 32 4 0.8 12.5 10 - - 1.5 250
    SQ2418H12 >12mH 22 26 15 4 0.8 16.8 15 - - 2.5 250
    SQ2418H20 >20mH 22 26 15 4 0.8 16.8 15 - - 1.8 250
    SQ2418H30 >30mH 22 26 15 4 0.8 16.8 15 - - 1.5 250
    SQ2724V07 >7mH 18 30 38 4 0.8 4 PINS - - 3.5 280
    SQ2724V15 >15mH 18 30 38 4 0.8 4 PINS - - 2.5 280
    SQ2724V20 >20mH 18 30 38 4 0.8 4 PINS - - 1.8 280
    SQ2724H07 >7mH 25 31 18 4 0.8 16.8 16.8 - - 3.5 280
    SQ2724H15 >15mH 25 31 18 4 0.8 16.8 16.8 - - 2.5 280
    SQ2724H20 >20mH 25 31 18 4 0.8 16.8 16.8 - - 1.8 280
    SQ2820V07 >7mH 16 30 38 4 0.8 4 PINS - - 2.0 300
    SQ2820V20 >20mH 16 30 38 4 0.8 4 PINS - - 2.5 300
    SQ2820V30 >30mH 16 30 38 4 0.8 4 PINS - - 5.0 300
    SQ2820H07 >7mH 28 35 18 4 0.8 16.8 16.8 - - 2.0 300
    SQ2820H20 >20mH 28 35 18 4 0.8 16.8 16.8 - - 2.5 300
    SQ2820H30 >30mH 28 35 18 4 0.8 16.8 16.8 - - 5.0 300
    SQ3126V081 >8mH 22 34 38 4 0.9 18 16 - - 8.0 400
    SQ3126V082 >8mH 22 34 38 4 0.9 18 16 - - 5.0 400
    SQ3126V10 >10mH 22 34 38 4 0.9 18 16 - - 3.5 400
    SQ3126V25 >25mH 22 34 38 4 0.9 18 16 - - 3 400
    SQ3126H081 >8mH 28 35 18 4 1.0 20 16.8 - - 8.0 400
    SQ3126H082 >8mH 28 35 18 4 1.0 20 16.8 - - 5.0 400
    SQ3126H10 >10mH 28 35 18 4 1.0 20 16.8 - - 3.5 400
    SQ3126H25 >25mH 28 35 18 4 1.0 20 16.8 - - 3 400
    SQ4391V12 >12mH - - - - - - - - - 7 600
    SQ4391H12 >12mH 28 45 16 4 1.0 39 21 - - 7 600
    *Customized is available.

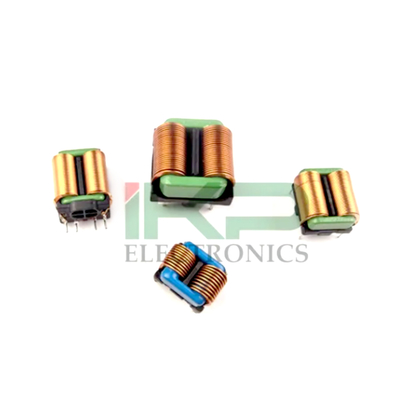

    Sq/UC1918 Type Flat Line Common Mode Inductors

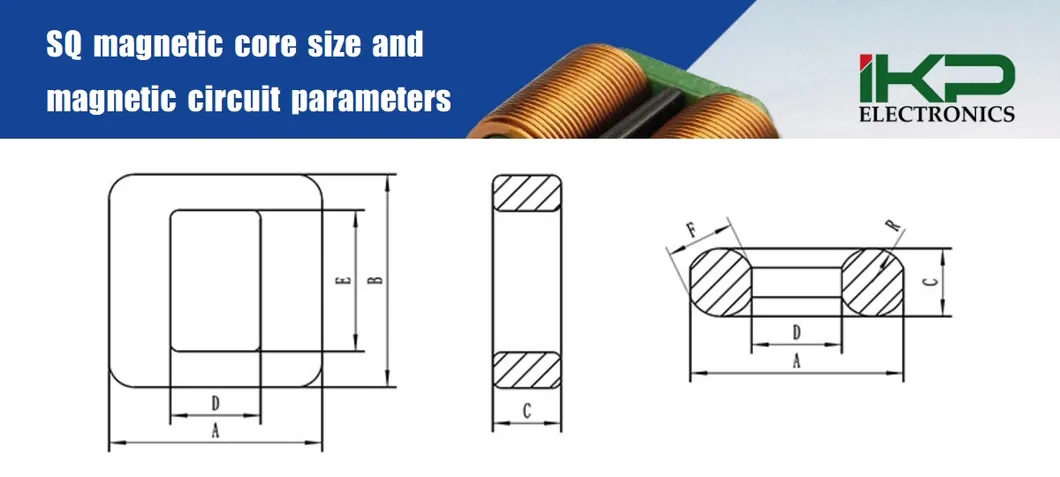

    SQ magnetic core size and magnetic circuit parameters:
