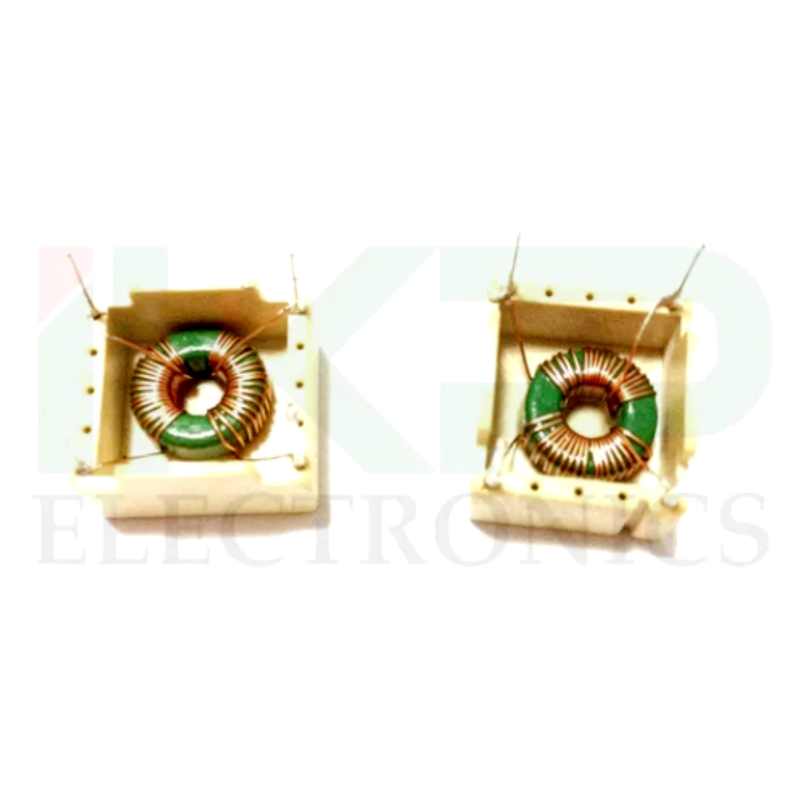

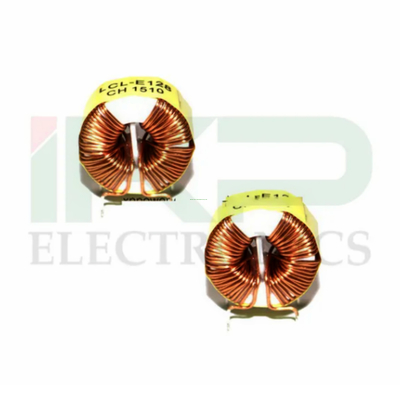

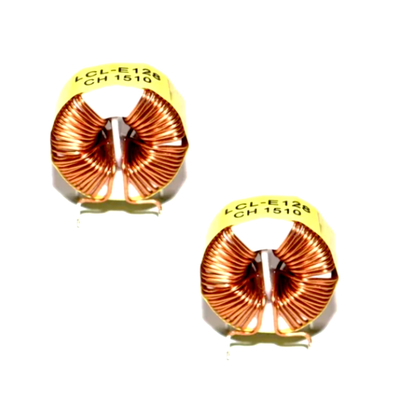

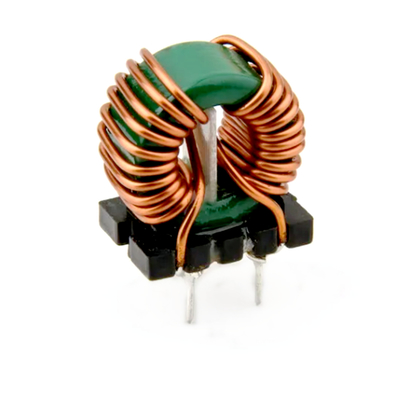

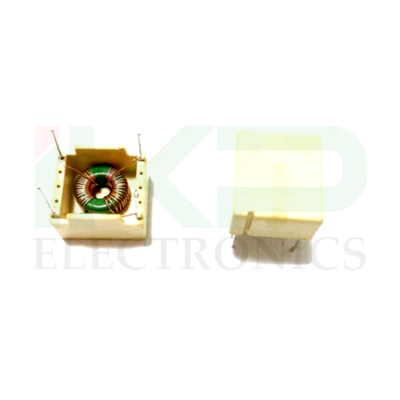

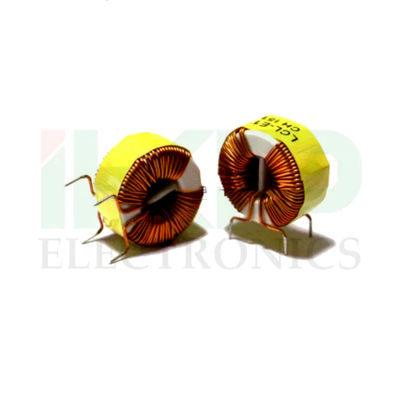

0.2A Horizantal Type Common Mode Choke Coil Power Inductor

0.2A Horizantal Type Common Mode Choke Coil Power Inductor

    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
    • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor
  • 0.2A Horizantal Type Common Mode Choke Coil Power Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL1012-220uH

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.10-0.30
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL1012-220uH
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Power Measurement
    Packaging Form
    Power Coils
    Brand
    Sunlord
    Inductor Value
    Variable Inductor
    Core Material
    Ferrite Core
    Transport Package
    Carton/Pallet
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    5, 000 PCS/Week

    Product Description


    Highest common mode impedance over the widest frequency range
    RoHS Directive-compliant
    PVC insulation shell
    Tin-silver over copper terminations
    High saturation flux density
    Less flux leakage and beat
    High effective insertion loss and excellent noise suppression
    Precise inductance
    High current, horizontal or vertical mount
    Operating temperature: -55 to 105°C
    Wide frequency range, large adjustable range for permeability (μ0) from 50,000-160,000
    Housing and tubes are available
    Customized specifications are accepted
    Applications: switching power output and smoothing circuits
    Used as choke coil for high frequency SMPs
    Countermeasure against spike ripples
    EMI/RFI filters
    DC/DC converters
    IP and OP devices
    Power inverter

    Part Number
    L@0Amps
    D.C.(µH)±20%
    Max RDC.() Suggested Rated
    Current (Amps)
    ACL-3838-0.095MH 1.2 .004 6.0
    ACL-3838-0.38MH 2.0 .005 5.5
    ACL-3838-0.855MH 3.3 .006 5.5
    ACL-3838-1.52MH 4.7 .007 5.5
    ACL-3838-2.375MH 6.8 .008 5.5
    ACL-3838-3.420MH 8.2 .010 5.5
    ACL-3838-4.655MH 10 .012 5.5
    ACL-3838-6.080MH 12 .013 5.0
    ACL-3838-7.695MH 15 .014 5.0
    ACL-3838-9.500MH 18 .016 5.0
    ACL-3838-11.495MH 22 .016 5.0
    ACL-3838-13.680MH 27 .018 5.0
    ACL-3838-16.055MH 33 .020 5.0
    ACL-3838-16.055MH 39 .021 5.0
    ACL-3838-18.620MH 47 .023 5.0
    ACL-3838-21.375MH 56 .025 5.0
    ACL-3838-24.320MH 68 .030 5.0
    ACL-3838-27.455MH 82 .032 5.0
    ACL-3838-30.780MH 100 .034 5.0
    ACL-3838-34.295MH 120 .037 5.0
    ACL-3838-38.000MH 150 .043 5.0
    ACL-3838-45.980MH 180 .048 5.0

    0.2A Horizantal Type Common Mode Choke Coil Power Inductor0.2A Horizantal Type Common Mode Choke Coil Power Inductor
