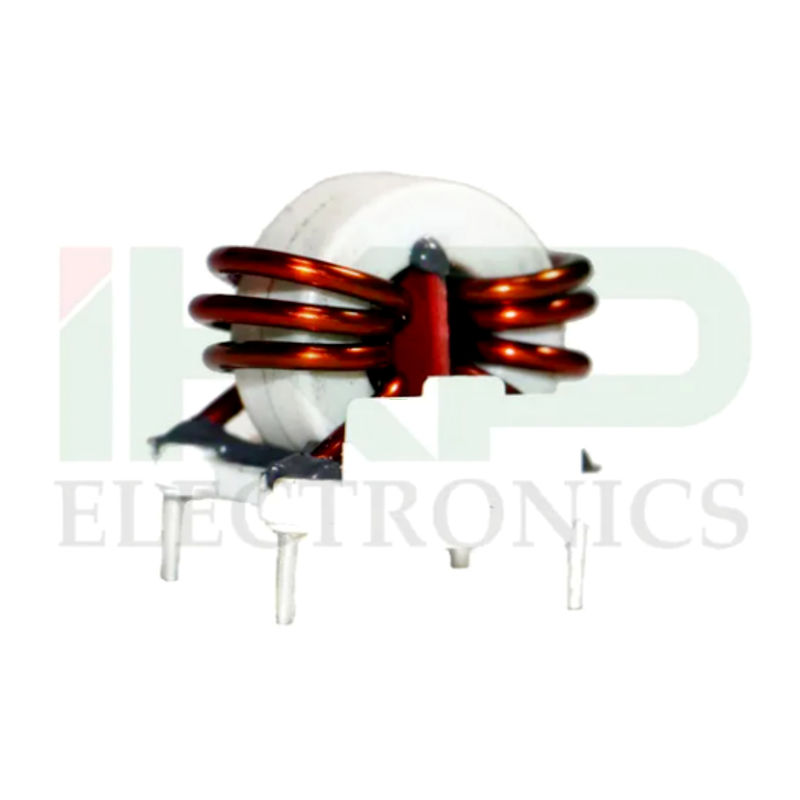

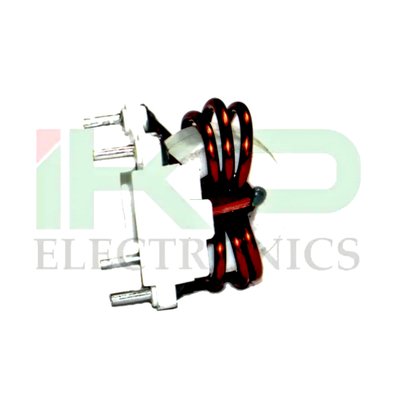

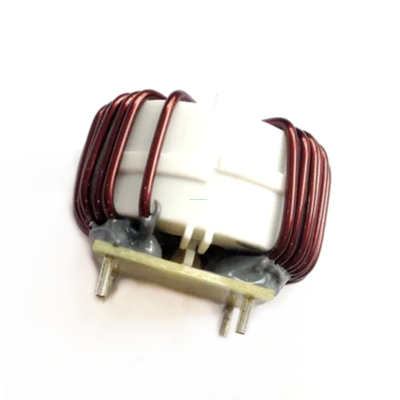

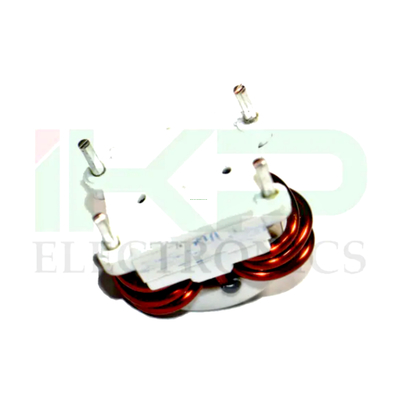

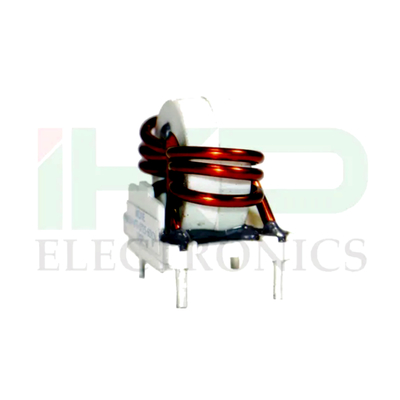

Common Mode Coil Inductor

Common Mode Coil Inductor

    • Common Mode Coil Inductor
    • Common Mode Coil Inductor
    • Common Mode Coil Inductor
    • Common Mode Coil Inductor
    • Common Mode Coil Inductor
    • Common Mode Coil Inductor
  • Common Mode Coil Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL-091

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.35-0.5
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL-091
    Working Frequency
    High Frequency
    Structure of Winding
    Multilayer Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Nanocrystaline
    Range of Application
    High Frequency
    Packaging Form
    Carton
    Brand
    OEM
    Inductor Value
    Variable Inductor
    Core
    Nanocrystaline
    Transport Package
    Carton/Tube
    Specification
    Rohs, ISO9001
    Trademark
    IKP
    Origin
    Hefei, Anhui
    HS Code
    85045000
    Production Capacity
    50, 000 PCS/Week

    Product Description


    Electrical characteristics (temperature: 25 ±50cm, RH: 65±1RH)
    1) Inductance (at 10kHz 0.05V): L2-7 = L3-6 = 6.8mh +50%/-30%
    2) Resistance: DCR2-7 = DCR3-6=250mΩ maximum
    3) Hi-pot: N1 to N2: 1500V AC, 3mA, 60s

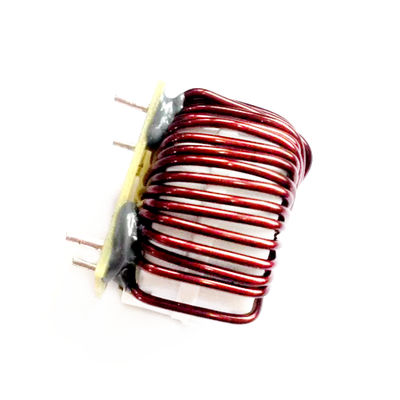

    Common Mode Coil Inductor

    Material list:
    1 Core: T14x9x5 TS10 TDG or EQU
    2 Wire: UEW polyurethane 130C tai-i electric wire and cable Co Ltd, E85640
    3 PCB: FR-4 1.5x9x5
    4 Case
    5 Epoxy: 6020H wells electronic material Co Ltd, E2296335

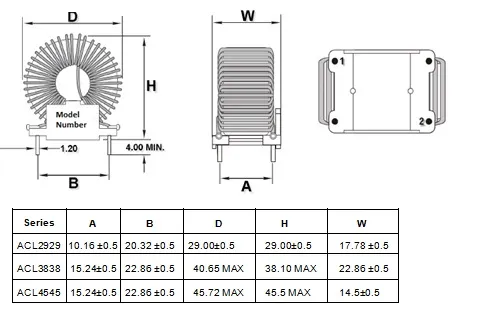

    Part Number L@0 Amps D.C.
    (µH) ±20%
    Max RDC.() Suggested Rated
    Current (Amps)
    ACL4545-0.05MH 1.5 .004 9.5
    ACL4545-0.20MH 2.2 .004 9.5
    ACL4545-0.45MH 3.3 .005 9.5
    ACL4545-0.80MH 5.6 .005 9.5
    ACL4545-1.25MH 6.8 .006 9.5
    ACL4545-1.80MH 10 .007 9.5
    ACL4545-2.45MH 12 .008 9
    ACL4545-3.20MH 15 .008 9
    ACL4545-4.05MH 18 .010 9
    ACL4545-5.00MH 22 .011 9
    ACL4545-6.05MH 27 .012 9
    ACL4545-7.20MH 33 .013 9
    ACL4545-8.45MH 39 .015 9
    ACL4545-9.80MH 47 .016 9
    ACL4545-11.25MH 56 .018 9
    ACL4545-12.80MH 68 .019 9
    ACL4545-14.45MH 82 .021 9
    ACL4545-16.20MH 100 .023 9
    ACL4545-18.05MH 120 .026 9
    ACL4545-20.00MH 150 .028 9
    ACL4545-22.05MH 180 .031 9
    ACL4545-24.20MH 220 .034 9
    ACL4545-26.45MH 270 .038 9

    Founded in 2000, IKP is a national high- tech enterprise and a well-known professional manufacturer of magnetic components in China. IKP's products are widely used in photovoltaic,EV, charging pile, energy storage, communication power supply, industrial power supply, audio equipment and other fields.
