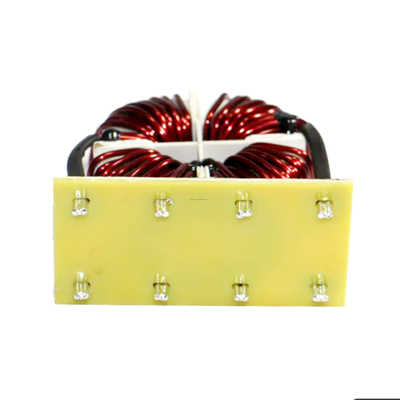

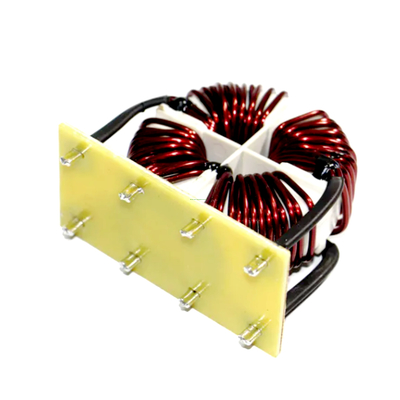

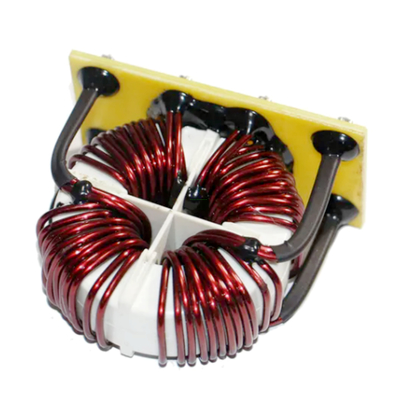

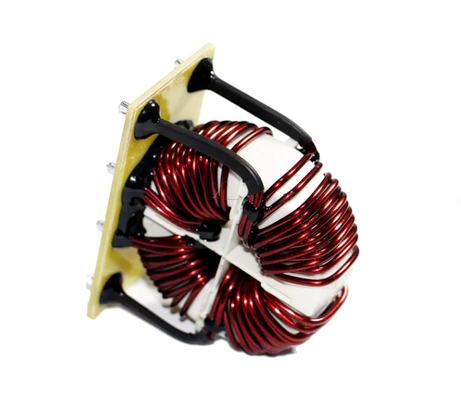

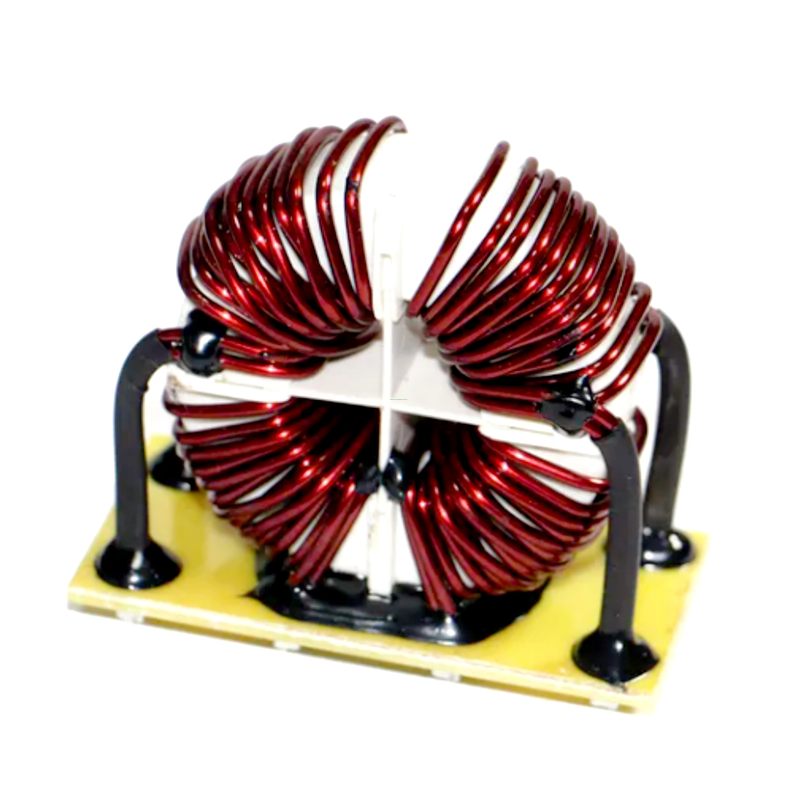

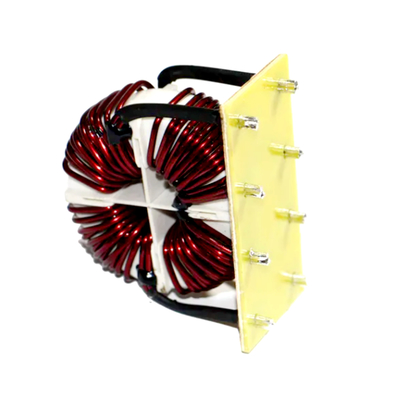

Ultra-Microcrystalline Core Common Mode Choke Coil Inductor

Ultra-Microcrystalline Core Common Mode Choke Coil Inductor

    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
  • Ultra-Microcrystalline Core Common Mode Choke Coil Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-ACL1319

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 1.55-1.88
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-ACL1319
    Working Frequency
    High Frequency
    Structure of Winding
    Two
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    OEM/ODM
    Inductor Value
    Variable Inductor
    Used in Various Power Supplies
    Customized Designs Are Accepted
    Transport Package
    Carton
    Specification
    RoHS/SGS/UL
    Trademark
    IKP-ELEC
    Origin
    Ningbo/Kunshan/Xi′an
    HS Code
    85045000
    Production Capacity
    5000000 Pics/Year

    Product Description

    Key Specifications/Special Features:
    1. High efficiency
    2. High power
    3. High current
    4. Low power loss
    5. Low temperature rise
    6. Lead wire protected by Teflon tube
    7. Withstand high voltage
    8. High temperature grades are available
    9. Double cores are available
    10. RoHS Directive-compliant
    11. UL insulation systems are available
    12. Reliable
    13. Used in various power supplies
    14. Customized designs are accepted
    15. OEM orders are welcome


    Part Number L@0Amps D.C.
    (MH)±20%
    MaxRDC.() Suggested Rated
    Current (Amps)
    ACL2929-0.2MH 0.20 .005 5.5
    ACL2929-0.8MH 0.80 .006 5.5
    ACL2929-1.8MH 1.80
    2.45
    .008 5.5
    ACL2929-3.2MH 3.20 .010 5.5
    ACL2929-5.0MH 5.00 .012 5.0
    ACL2929-7.2MH 7.20 .014 5.0
    ACL2929-9.8MH 9.80 .016 5.0
    ACL2929-12.8MH 12.80 .020 5.0
    ACL2929-16.2MH 16.20 .024 5.0
    ACL2929-20.0MH 20.00 .028 5.0
    ACL2929-24.2MH 24.20 .032 5.0
    ACL2929-28.8MH 28.80 .034 5.0
    ACL2929-33.8MH 33.80 .038 5.0
    ACL2929-39.2MH 39.20 .046 5.0
    ACL2929-45.0MH 45.00 .056 4.5
    ACL2929-51.2MH 51.20 .062 4.5
    ACL2929-57.8MH 57.80 .090 3.5
    ACL2929-64.8MH 64.80 .100 3.5
    ACL2929-57.0MH 57.00 .120 3.5
    ACL2929-80.0MH 80.00 .180 2.0

    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
    Ultra-Microcrystalline Core Common Mode Choke Coil Inductor
