Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor

Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor

    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
  • Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-LF-R Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.29-0.35
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-LF-R Series
    Working Frequency
    High Frequency
    Structure of Winding
    Single Coil
    Nature of Operation
    Choke Coil
    Structure of Magnetizer
    Ferrite Coil
    Range of Application
    Choke
    Packaging Form
    Power Coils
    Brand
    Ikp
    Inductor Value
    Variable Inductor
    Transport Package
    Carton
    Specification
    R series
    Trademark
    IKP-ELEC
    Origin
    Hefei, China
    HS Code
    85043190
    Production Capacity
    20, 000pieces/Day

    Product Description

    Product Name: magnetic inductors
    Rod type (R type) choke, with current, firm structure, strong filtering ability characteristics, widely used in switching power supply and other electronic equipment.


    Characteristics:
    Low cost
    Ferrite core
    High saturation current
    The coil body dipping (varnish),pin tinned

    Applications:
    the buck converter, LCD, notebook computer, handheld notebook, digital products,
    Network communication etc.

    Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor

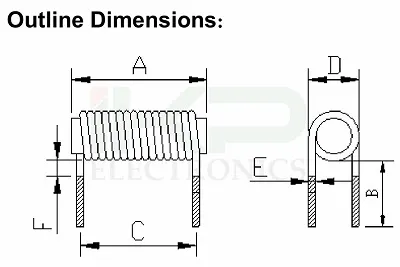

    Electrical properties:
    Type Amax Bmin Crel Dmax E±0.05 Fmax
    R0205 6 5 5 3.5 0.2-2.0mm 1.5
    R0310 11 5 8 5 0.2-2.0mm 1.5
    R0415 16 5 12 5.5 0.2-2.0mm 1.5
    R0520 21 5 18 7 0.2-2.0mm 1.5
    R0630 31 5 28 9.5 0.2-2.0mm 1.5
    R0820 23 5 18 16 0.2-2.0mm 1.5
    R1040 42 5 38 24 0.2-2.0mm 1.5


    Detailed parameters:
    Part No Inductance
    (uH)
    DCR
    (OHM )MAX
    Rated Current
    (AMP) MAX
    SRF
    (MHz) MIN
    Wire Diameter
    (mm)
    Ts Weight
    (g/pcs)
    R0205-1R0K 1 0.04 0.56 200 0.3 11.5 0.15
    R0205-1R2K 1.2 0.04 0.56 180 0.3 12.5 0.165
    R0310-1R8K 1.8 0.026 1.9 160 0.55 11.5 0.7
    R0310-2R2K 2.2 0.028 1.57 150 0.5 13.5 0.714
    R0310-2R7K 2.7 0.03 1.57 140 0.5 15.5 0.729
    R0310-3R3K 3.3 0.035 1.27 135 0.45 17.5 0.686
    R0310-3R9K 3.9 0.05 1 110 0.4 18.5 0.634
    R0310-4R7K 4.7 0.07 0.76 90 0.35 19.5 0.575
    R0415-4R7K 4.7 0.024 2.26 90 0.6 17.5 1.6
    R0415-5R6K 5.6 0.03 1.9 80 0.55 18.5 1.4
    R0415-6R8K 6.8 0.04 1.57 80 0.5 18.5 1.4
    R0415-8R2K 8.2 0.06 1.27 80 0.45 21.5 1.32
    R0415-100K 10 0.08 1 70 0.4 24.5 1.2
    R0520-100K 10 0.04 2.65 60 0.65 22.5 3.1
    R0520-120K 12 0.044 2.26 55 0.6 23.5 2.98
    R0520-150K 15 0.06 1.9 45 0.55 27.5 2.97
    R0520-180K 18 0.08 1.57 40 0.5 29.5 2.87
    R0520-220K 22 0.1 1.27 38 0.45 32.5 2.73
    R0520-270K 27 0.15 1 36 0.4 36.5 2.63
    R0630-4R7K 4.7 0.005 16.08 85 1.6 12.5 10.2
    R0630-5R6K 5.6 0.005 16.08 80 1.6 14.5 11
    R0630-6R8K 6.8 0.008 10.61 75 1.3 15.5 8.68
    R0630-8R2K 8.2 0.009 9.04 67 1.2 16.5 8.35
    R0630-100K 10 0.01 9.04 64 1.2 19.5 8.8
    R0630-120K 12 0.018 6.28 57 1 20.5 7.43
    R0630-150K 15 0.023 5.08 53 0.9 23.5 7.23
    R0630-180K 18 0.03 4.02 49 0.8 24.5 6.7
    R0630-220K 22 0.045 3.07 44 0.7 27.5 6.24
    R0630-270K 27 0.05 3.07 42 0.7 31.5 6.4
    R0630-330K 33 0.06 2.65 36 0.65 35.5 6.53
    R0630-390K 39 0.08 2.26 34 0.6 40.5 6.23
    R0630-470K 47 0.11 1.9 32 0.55 44.5 6.22
    R0630-560K 56 0.14 1.57 30 0.5 46.5 5.8


    Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
    Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor

    Ikp-Elec Carton R Series Flat Wire Rod Core Choke Power Inductor
