Name: Core 3 Phase Ikp-Elec Carton Toroidal Flat Wire Power Inductor
Brand: IKP Electronics Co., Ltd.
SKU: IKP-LF-CMC Series
Price: 5.25 USD
Availability: InStock

Home Products Molding Power Inductors

Core 3 Phase Ikp-Elec Carton Toroidal Flat Wire Power Inductor

Product Details:

Place of Origin:	CHINA
Brand Name:	IKP
Certification:	CE/UL/REACH/ROHS
Model Number:	IKP-LF-CMC Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000
Price:	5.25-5.33
Packaging Details:	Carton
Delivery Time:	10-15 days
Payment Terms:	L/C, T/T
Supply Ability:	100,000/week

Contact Now

Detailed Product Description

Basic Info.

Model NO.

IKP-LF-CMC Series

Working Frequency

High Frequency

Structure of Winding

3 Phase

Nature of Operation

Choke Coil

Structure of Magnetizer

Ferrite Coil

Range of Application

Smoothing

Packaging Form

Power Coils

Brand

OEM/ODM

Inductor Value

Variable Inductor

Flat Wire

Vertical Winding Technology

Application

New Energy, Charging Pile

Phase

Single/Three/Four Phase

Transport Package

Carton

Specification

Variable Specifications

Trademark

IKP-ELEC

Origin

Hefei, China

HS Code

85045000

Production Capacity

50000pieces/Week

Product Description

FEATURES:
Winding directly to the closed magnetic path core
Use the flat wire, improving the space factor
Small size, high current
Better heat dissipation
Single phase winding, thereby dramatically reduce stray capacitance
Achieve a high inductance in both common mode and normal mode
Achieve a high magnetic saturation characteristics
No layer-short, higher quality
EMI effect is excellent
Alternative products: UU10.5, UU16
Standard: CISPR22 Class B
Raw materials imported from Japan
Achieve TDK standards
Automatic machine winding, neatly arranged, high capacity
High insulation strength, improve power supply life
Preferred supplier aerospace, military, medical and electronics industries

APPLICATION:
Low Frequency AC Reactor, Solar Power System, Power Conditioning System,Wind Power System, Automatic Drive Machine, Induction Heater, Welding Machine, Paper Industries, RFI Suppression Choke, DC/DC converters, IP and OP devices.

Note:
We can design and manufacture customized part with specific requirement

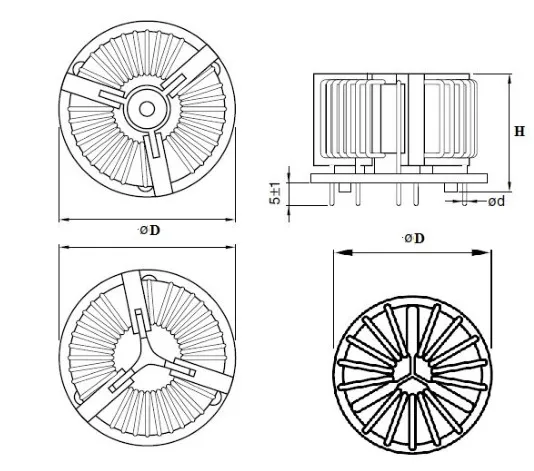

Part NO.	Inductance	Inductance Difference (max)	DC resistance (max)	Rated Current (max)	Dimensions (ΦD)
T6030-752-5	7.5mH	150μH	0.1Ω	5A	0.9mm
T6030-162-10	1.6mH	100μH	0.02Ω	10A	1.3mm
T6030-102-14	1.0mH	75μH	0.02Ω	14A	1.5mm
T6035-201-30	0.2mH	10μH	3Ω	30A	2.6mm
T6035-501-25	0.5mH	15μH	5Ω	25A	2.3mm
T6035-102-20	1.0mH	20μH	8Ω	20A	2.0mm
T6035-162-15	1.6mH	30μH	12Ω	15A	1.8mm
T3524-302-3	3mH	150μH	100Ω	3A	0.8mm
T3524-502-3	5mH	200μH	130Ω	3A	0.8mm
T3524-102-5	1mH	50μH	50Ω	5A	1.0mm
T3524-202-5	2mH	150μH	60Ω	5A	1.0mm
T4333-502-5	5mH	200μH	55Ω	5A	1.1mm
T4333-302-7	3mH	250μH	35Ω	7A	1.3mm
T4333-102-10	1mH	50μH	15Ω	10A	1.5mm
T4333-501-15	0.5mH	30μH	8Ω	15A	1.8mm
T5228-102-5	1mH	50μH	45Ω	5A	1.0mm
T5228-502-5	5mH	200μH	95Ω	5A	1.0mm
T5228-302-8	3mH	150μH	40Ω	8A	1.2mm
T5228-102-10	1mH	50μH	20Ω	10A	1.3mm
T5228-202-10	2mH	80μH	25Ω	10A	1.5mm
T6332-202-15	2mH	80μH	20Ω	15A	2.0mm
T6332-152-18	1.5mH	50μH	15Ω	18A	2.1mm
T6332-102-20	1mH	50μH	8Ω	20A	2.3mm
T6332-501-25	0.5mH	30μH	6Ω	25A	2.5mm
T6340-302-10	3mH	150μH	35Ω	10A	1.5mm
T6340-202-15	2mH	120μH	25Ω	15A	1.8mm
T6340-102-20	1mH	50μH	10Ω	20A	2.3mm
T6340-102-25	1mH	50μH	8Ω	25A	2.4mm
