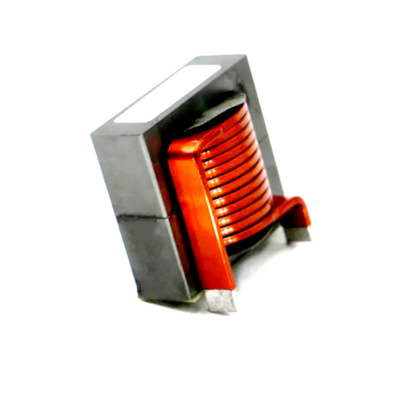

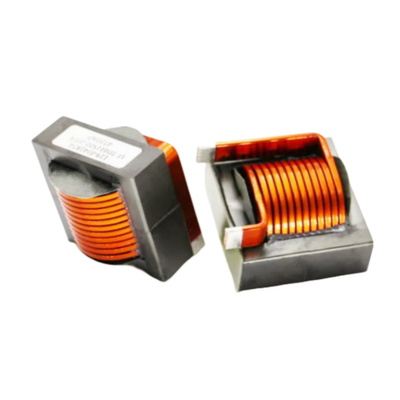

Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer

Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer

    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
  • Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer

    Product Details:

    Place of Origin: CHINA
    Brand Name: IKP
    Certification: CE/UL/REACH/ROHS
    Model Number: IKP-PT-LF Series

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000
    Price: 0.82-0.88
    Packaging Details: Carton
    Delivery Time: 10-15 days
    Payment Terms: L/C, T/T
    Supply Ability: 100,000/week
    Contact Now
    Detailed Product Description

    Basic Info.

    Model NO.
    IKP-PT-LF Series
    Core
    Core-type Transformer
    Cooling Method
    Dry-type Transformer
    Winding Type
    Auto-transformer
    Certification
    CCC, CE/SGS/BV/RoHS
    Usage
    Single-phase Transformer
    Frequency Characteristics
    High Frequency
    Shape of Core
    Pq
    Brand
    Ikp
    Transport Package
    Carton
    Specification
    IKP-PT-PQ Series
    Trademark
    IKP
    Origin
    Hefei, China
    HS Code
    85043190
    Production Capacity
    20, 000pieces/Week

    Product Description

    Features:
    *High Power (50W~1000W)
    *Magnetic shielding structure
    *Magnetic circuit closed
    *High resistance to EMI
    *Low Temperature, low Loss
    *Welding firmly, easy soldering, anti-oxidation
    *Easy installation
    *Lead-free, in line with RoHS directives
    *Low DC resistance
    *Rapid stripping process with smooth and no deformed pin
    *Factory directly supplied Products of IKP electronics co., ltd.

    Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer
    Power Pq Ikp Carton Ikp-PT-Pq Series Flat Wire Inductor SMD Transformer


    Application:
    Widely used in Industrial motherboard, laptop, car equipment, DC/DC inverter, LED, Medical equipment, Military electronics, etc.

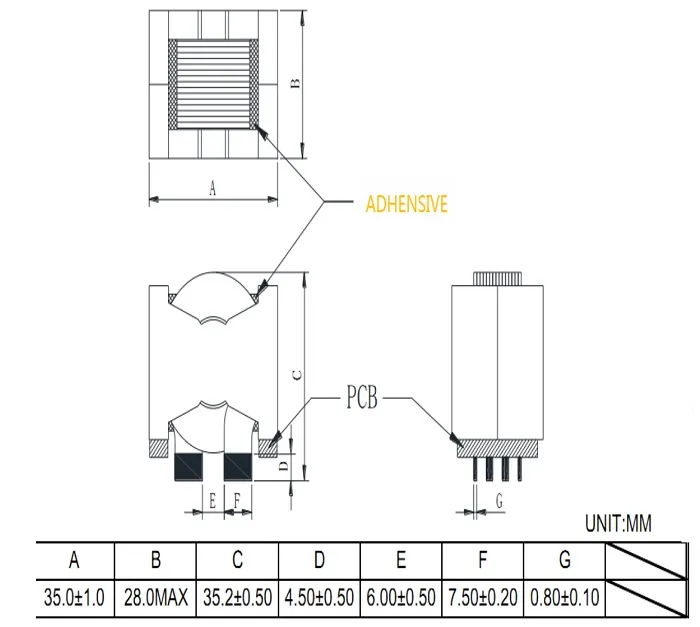

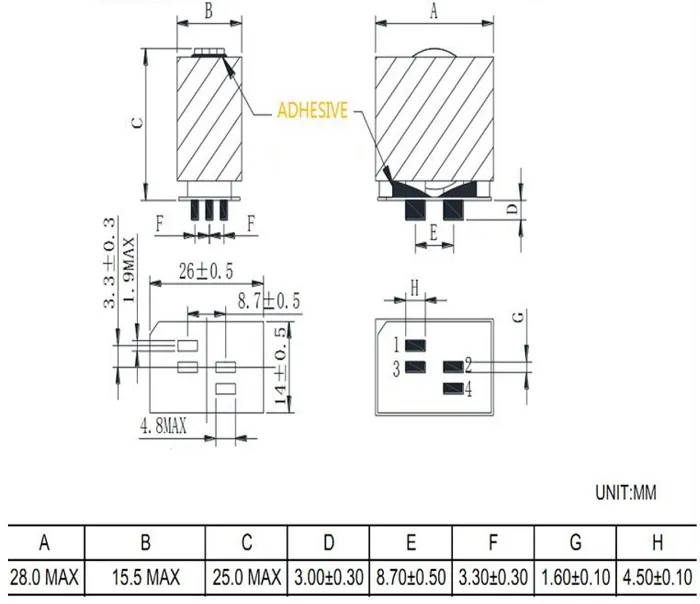

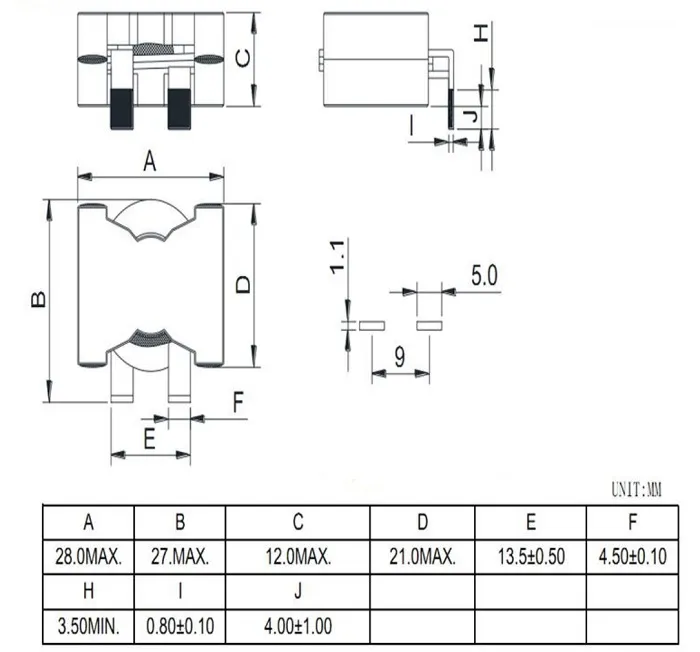

    Specifications:
    Model A B C(Max) D(Max) E(Min) F G
    PQ2012 20.5±0.4 14.0±0.3 22.50 12.00 2.00 3.5±0.2 5.0±0.2
    PQ2014 20.5±0.4 14.0±0.3 22.50 14.50 2.00 3.5±0.2 5.0±0.2
    PQ2016 20.5±0.4 14.0±0.3 22.50 16.50 2.00 3.5±0.2 5.0±0.2
    PQ2915 27.5±0.5 19.5±0.5 27.90 15.40 3.80 3.8±0.2 6.6±0.2
    PQ2918 27.5±0.5 19.5±0.5 27.90 17.80 3.80 3.8±0.2 6.6±0.2

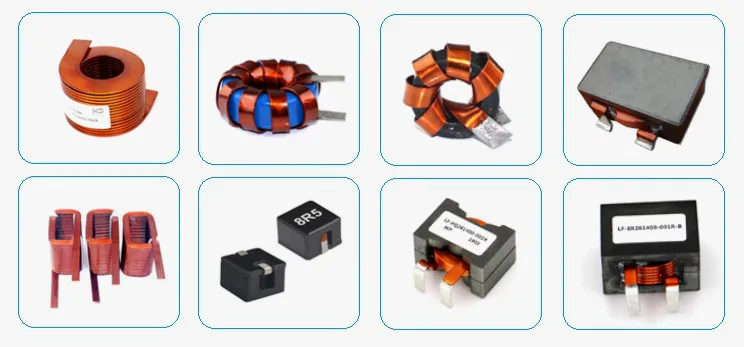

    Hot Products:
