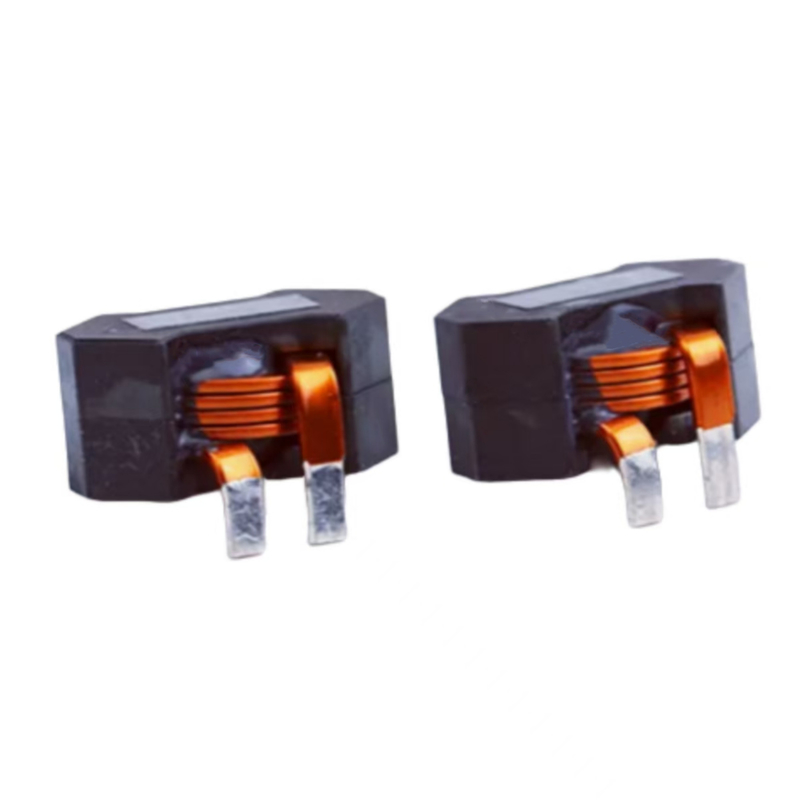

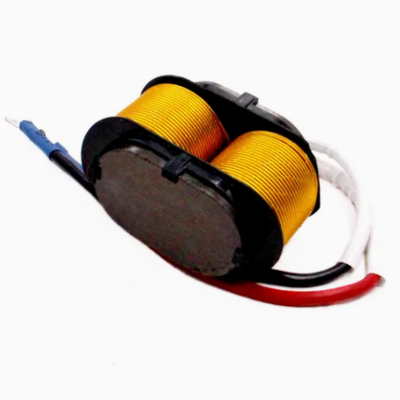

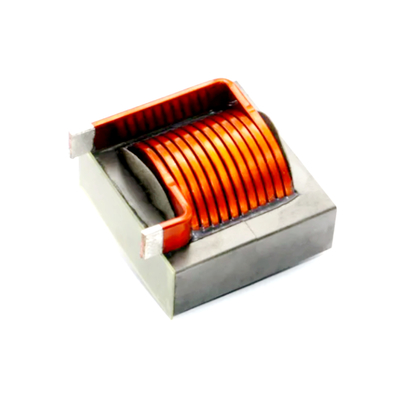

Power Lighting Ikp Carton Copper Inductor Flat Wire Choke Coil
Product Details:
| Place of Origin: |
CHINA |
| Brand Name: |
IKP |
| Certification: |
CE/UL/REACH/ROHS |
| Model Number: |
IKP-PT-LF Series |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1000 |
| Price: |
0.82-0.88 |
| Packaging Details: |
Carton |
| Delivery Time: |
10-15 days |
| Payment Terms: |
L/C, T/T |
| Supply Ability: |
100,000/week |
Contact Now
Detailed Product Description
Basic Info.
Model NO.
IKP-PT-LF Series
Core
Core-type Transformer
Cooling Method
Dry-type Transformer
Winding Type
Auto-transformer
Certification
CCC, CE/SGS/BV/RoHS
Usage
Single-phase Transformer
Frequency Characteristics
High Frequency
Specification
IKP-PT-PQ Series
Production Capacity
20, 000pieces/Week
Product Description
Features:
*High Power (50W~1000W)
*Magnetic shielding structure
*Magnetic circuit closed
*High resistance to EMI
*Low Temperature, low Loss
*Welding firmly, easy soldering, anti-oxidation
*Easy installation
*Lead-free, in line with RoHS directives
*Low DC resistance
*Rapid stripping process with smooth and no deformed pin
*Factory directly supplied Products of IKP electronics co., ltd.
Application:
Widely used in Industrial motherboard, laptop, car equipment, DC/DC inverter, LED, Medical equipment, Military electronics, etc.

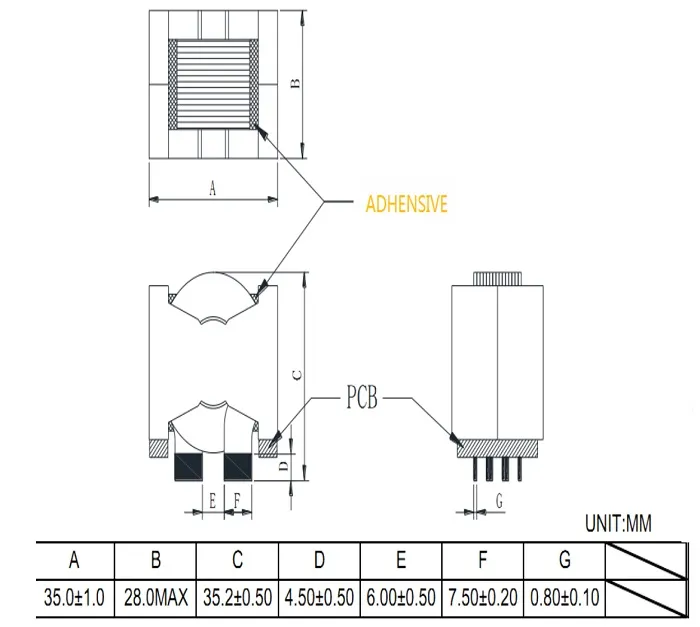

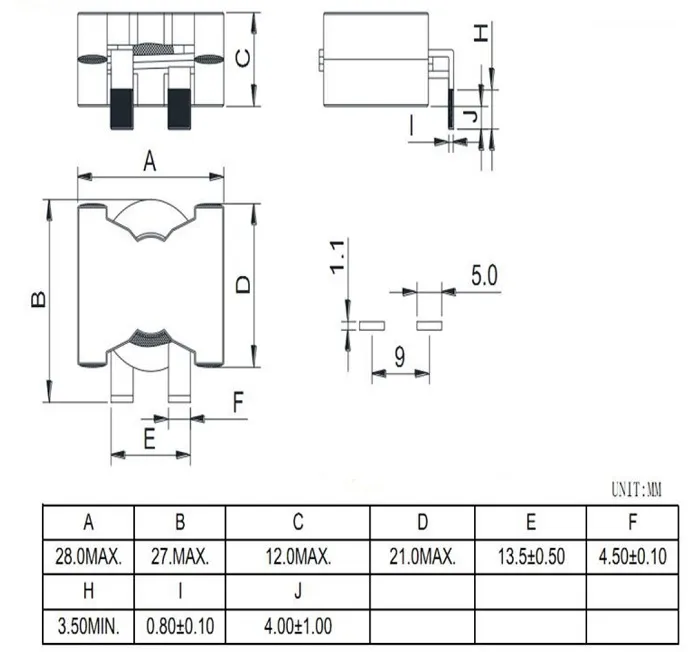

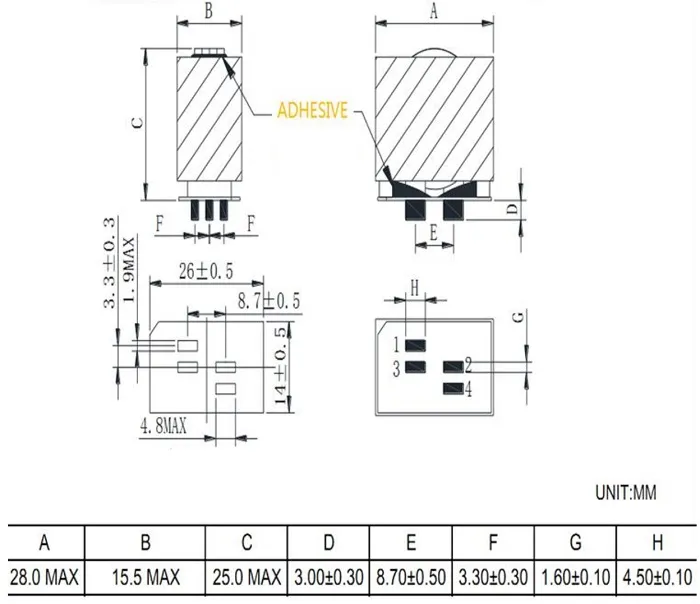

Specifications:
| Model |
A |
B |
C(Max) |
D(Max) |
E(Min) |
F |
G |
| PQ2012 |
20.5±0.4 |
14.0±0.3 |
22.50 |
12.00 |
2.00 |
3.5±0.2 |
5.0±0.2 |
| PQ2014 |
20.5±0.4 |
14.0±0.3 |
22.50 |
14.50 |
2.00 |
3.5±0.2 |
5.0±0.2 |
| PQ2016 |
20.5±0.4 |
14.0±0.3 |
22.50 |
16.50 |
2.00 |
3.5±0.2 |
5.0±0.2 |
| PQ2915 |
27.5±0.5 |
19.5±0.5 |
27.90 |
15.40 |
3.80 |
3.8±0.2 |
6.6±0.2 |
| PQ2918 |
27.5±0.5 |
19.5±0.5 |
27.90 |
17.80 |
3.80 |
3.8±0.2 |
6.6±0.2 |
